Mini Skid Steer Loader
>
|
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT430 |

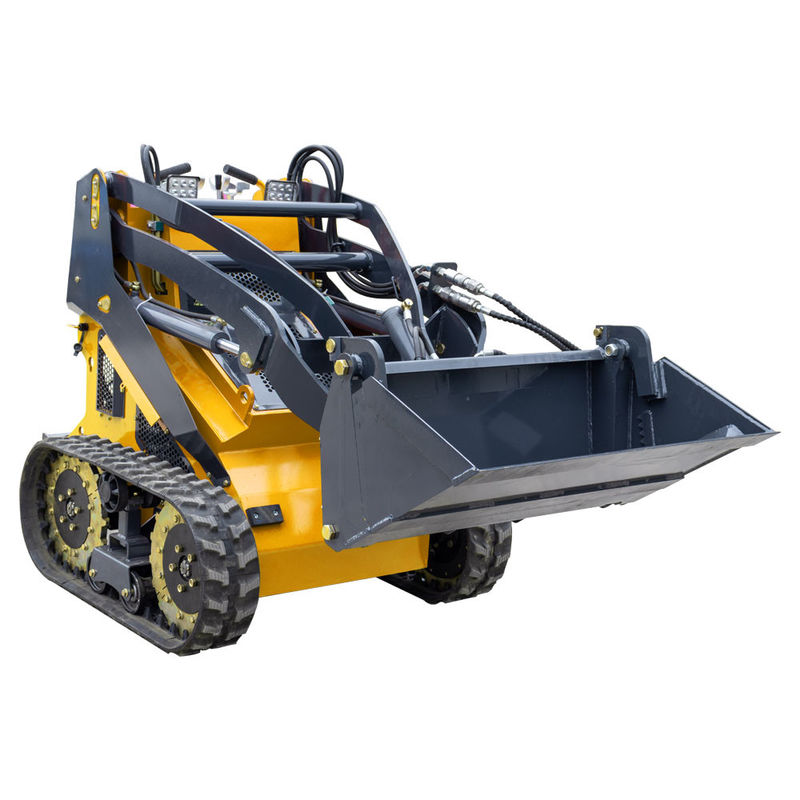

China Multifunctional Hydraulic Mini Skid Steer Loader With Attachments
Small Skid steer loader, multifunctional engineering vehicle, multifunctional engineering machine. Realized dedicated chassis vehicle steering wheel equipment, wheel train, all-wheel drive, slip steering. No matter from product appearance, lifting height, weight lifting, and operation comfort, it is the best in the country. The machine is simple to operate, easy to replace auxiliary equipment and easy to maintain. It is widely used in different fields, especially in municipal engineering. There are dozens of matching assistants, which can be selected according to different working environments and construction requirements to complete construction projects, making your work easier and simpler.
Technical parameters:
|
Lifting Capacity KG
|
430
|
|
Engine Type
|
Briggs Stratton 3864
|
|
Engine Capacity(kw/Hp)
|
18.2/23
|
|
Rotation speed per minute(rpm)
|
3600
|
|
Maximum torque NM/rpm
|
50/3000
|
|
Cooling method
|
Air-cooled
|
|
Fuel/Fuel tank capacity
|
Gasoline 95#/20L
|
|
Drive System
|
Hydraulic four-wheel drive
|
|
Speed(km/h)
|
0-6(By Scale)
|
|
Enhancement of capabilities(kg)
|
300
|
|
Hydraulic drive system(L/bar)
|
50/180
|
|
Hydraulic oil tank capacity(L)
|
35
|
|
Standard Tires
|
18*8.5-8
|
|
Electrical system(V)
|
12
|
|
Battery Capacity(Ah)
|
36
|
|
Braking System
|
Hydraulic enclosed brake
|
|
Drive
|
Skid steering
|
|
Overall Dimensions(MM)
|
1485*1150*1300
|
|
Weight(KG)
|
830
|
Features:
1. Folding pedal design, the driver can stand up or walk behind to operate the machine.
