HT15pro Mini Excavator Double Cylinder Hydraulic Shear
  • HT15pro Mini Excavator Double Cylinder Hydraulic Shear

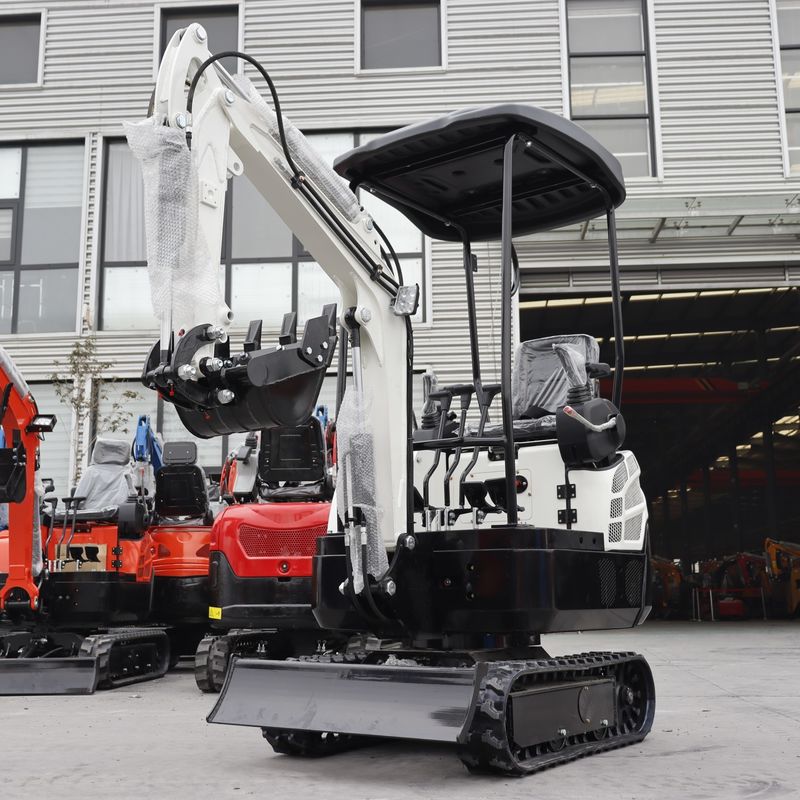

HT15pro Mini Excavator Double Cylinder Hydraulic Shear

Place of Origin Shandong China
Brand Name HIGHTOP
Certification CE,EPA ,EURO5
Model Number HT15pro
Product Details
Maximum Digging Distance:
2920mm
Tail Turning Radius:
800mm
Maximum Height At Minimum Turning Radius:
2110mm
Minimum Turning Radius:
1500mm
Maximum Digging Depth:
1710mm
Total Width:
930mm
Maximum Digging Height:
2690mm
Track Ground Length:
890mm
High Light:

Double Cylinder Mini Excavator

,

Hydraulic Shear Mini Excavator

,

HT15pro Mini Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
7-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

Product Description:

The exterior of HT15pro excavator is shaped by stamping mold, which is more accurate than traditional outer cover welding, and the outer cover is more beautiful.



The two side handles are equipped with hydraulic pilot operation as standard, so that the customer can coordinate and smooth movement in driving work.



The roof of the carport is made of plastic mold, and the legs of the carport are made of 38 thickened steel tubes. The role of the carport is not only to keep out the light and rain, but also to protect the driver's safety when the vehicle overturns.

Transportation length 2300mm
Total width 930mm
Upper width 990mm
Overall height (cab roof) 2270mm
Standard track plate width 180mm
Track gauge 750mm
Shovel height above ground 110mm
Depth of excavation of bulldozer 200mm
Tail turning radius 800mm
Track ground length 890mm
Track length 1235mm

Maximum digging height 2690mm
Maximum unloading height 1825mm
Maximum digging depth 1710mm
Maximum digging distance 2920mm
Minimum turning radius 1500mm
Maximum height at minimum turning radius 2110mm

Working quality 1000kg
Bucket capacity 0.02m3
Working device form 反铲 backhoe
Climbing capacity 30°

Engine
Koop/Briggs & Stratton


HT15pro Mini Excavator Double Cylinder Hydraulic Shear 0



Features:

  • Product Name: Hightop Mini Excavator
  • Maximum digging distance: 2920mm
  • Depth of excavation of bulldozer: 200mm
  • Standard track plate width: 180mm
  • Total width: 930mm
  • Shovel height above ground: 110mm
  • Mini excavator
  • Excavator Accessories
  • Compact Size
  • High Performance


Technical Parameters:

Parameter Value
Product Name CE miniexcavator, Hightop mini excavator, 1.3ton mini excavator
Tail turning radius 800mm
Shovel height above ground 110mm
Track gauge 750mm
Maximum unloading height 1825mm
Track length 1235mm
Upper width 990mm
Total width 930mm
Track ground length 890mm
Maximum digging height 2690mm
Standard track plate width 180mm


Applications:

HIGHTOP HT15pro Mini Excavator
Product Information
  • Brand Name: HIGHTOP
  • Model Number: HT15pro
  • Place of Origin: Shandong, China
  • Certification: CE, EPA, EURO5
  • Minimum Order Quantity: 1 set
  • Price: Negotiation
  • Packaging Details: Wooden case
  • Delivery Time: 7-14 work days
  • Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C
  • Supply Ability: 100 sets per month
  • Track Gauge: 750mm
  • Standard Track Plate Width: 180mm
  • Tail Turning Radius: 800mm
  • Maximum Digging Distance: 2920mm
  • Overall Height (Cab Roof): 2270mm
Key Features
  • Mini hydraulic excavator
  • EURO5 mini excavator
  • CE miniexcavator
  • Compact design
  • Versatile
  • Easy to operate
  • High performance
  • Efficient
  • Durable
  • Powerful engine
  • Low fuel consumption
  • Comfortable cabin
Applications
  • Construction sites
  • Landscaping
  • Road maintenance
  • Agriculture
  • Indoor construction
  • Narrow spaces
  • Wide range of applications

© 2020 HIGHTOP. All Rights Reserved.



Customization:

Brand Name: HIGHTOP
Model Number: HT15pro
Place of Origin: Shandong China
Certification: CE, EPA, EURO5
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 7-14 work days
Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability: 100 sets per month
Maximum height at minimum turning radius: 2110mm
Track gauge: 750mm
Tail turning radius: 800mm
Maximum digging depth: 1710mm
Shovel height above ground: 110mm
Customize your EURO5 mini excavator with Hightop!

With our HT15pro model, you can expect a high-performing, durable and efficient mini digger that meets the EURO5 emission standards. Made in Shandong China, our mini excavator is of top quality and can handle any job with ease.

Whether you need it for construction, landscaping or agricultural purposes, our mini excavator can be customized to fit your specific needs. We offer a wide range of customization options, including:

  • Choice of colors and graphics
  • Additional attachments such as buckets, rippers, and breakers
  • Adjustment of track width and height
  • Installation of GPS and other advanced technologies
  • And more!

Our mini excavator is compact, lightweight, and easy to transport, making it suitable for both small and large job sites. With a maximum digging depth of 1710mm and a shovel height above ground of 110mm, you can expect excellent performance and precision in any digging or excavation task.

Order your customized Hightop mini excavator today and experience the difference in quality and efficiency!

Minimum Order Quantity: 1 set



Packing and Shipping:

Packaging and Shipping of Hightop Mini Excavator

The Hightop Mini Excavator is carefully packaged to ensure safe delivery and protection during shipping. The packaging materials used are strong and durable to withstand any potential damage during transportation.

Packaging

The Mini Excavator is first placed on a wooden pallet and secured with straps to prevent any movement during shipping. It is then covered with a layer of protective plastic wrap to shield it from dirt and dust.

The cab and other components are also covered with foam padding to prevent any scratches or damage. The bucket and other attachments are securely fastened to the pallet to prevent them from shifting during transit.

The packaging is completed by placing a sturdy cardboard box over the entire pallet and securing it with tape. This ensures that all parts of the Mini Excavator are well-protected and ready for shipping.

Shipping

The Hightop Mini Excavator can be shipped to any location worldwide via sea, air, or land transportation. Our team works closely with reputable shipping companies to ensure prompt and safe delivery.

Before shipping, the Mini Excavator undergoes a thorough inspection to ensure that it meets all safety and quality standards. It is then loaded onto the chosen mode of transportation and secured for the journey.

Customers can track the status of their shipment and will be provided with a delivery date estimate. Upon arrival, the Mini Excavator will be unloaded and delivered to the specified location. Our team will also provide assistance with assembly and installation if needed.

With our careful packaging and efficient shipping methods, you can be confident that your Hightop Mini Excavator will arrive in perfect condition. Contact us today for more information on our packaging and shipping processes.
