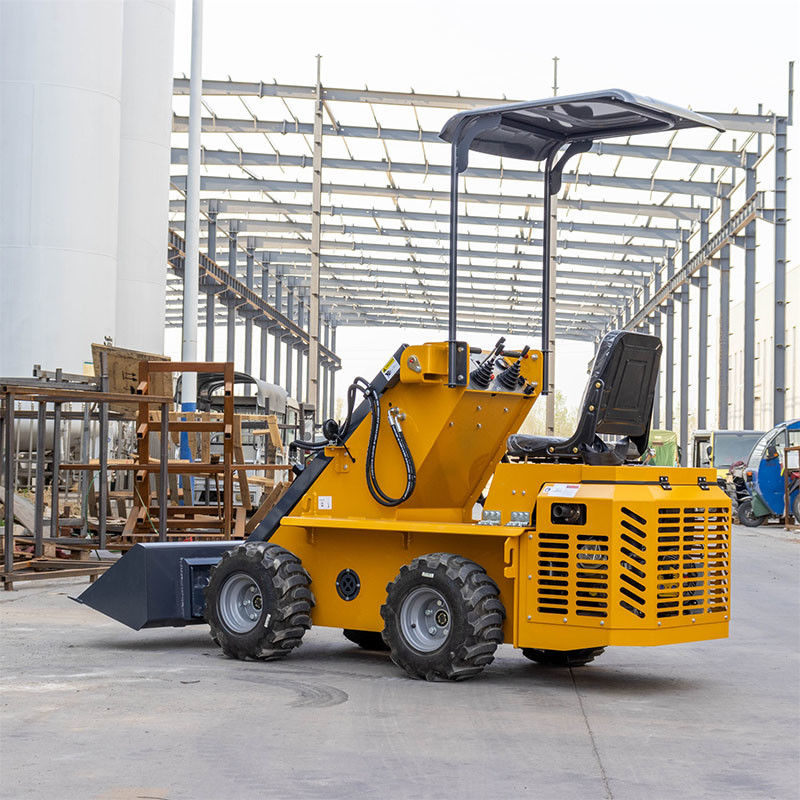

Compact Design Mini Skid Steer Loader Rapid Response
  • Compact Design Mini Skid Steer Loader Rapid Response
  • Compact Design Mini Skid Steer Loader Rapid Response

Compact Design Mini Skid Steer Loader Rapid Response

Place of Origin Shandong China
Brand Name HIGHTOP
Certification CE,EPA,
Model Number HTHY800-Y
Product Details
Overall Length Ithout Bucket(mm):
2180
Minimum Travel Speed: (low Speed):
4
Rated Power (HP):
13.5HP
Overall Operating Height (mm):
2750
Machine Net Weight: (kg):
800
Working Weight::
1200KG
Overall Length With Bucket(mm):
2680
Engine Brand::
Briggs&Stratton
High Light:

Various Mini Skid Steer Loader

,

rapid response Mini Skid Steer Loader

,

Compact Mini Skid Steer Loader

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

Product Description:

Product overview
① The series has compact design, small host width and good passability. Use variable amplitude working arm. Ensures a strong load carrying capacity in a smaller width.
② The width of the main machine is the smallest in all the sliding machine products. To meet special operational requirements.
③ The product uses imported European and American hydraulic parts. Sensitive control, rapid response, is the best choice for small space operations.

Operating load (kg)300
Maximum driving speed: (high speed)8
Minimum travel speed: (low speed)4
Tire(track) model18*8.5-8
Engine brand:Briggs&Stratton
Rated power (HP)13.5HP
Fuel tank capacity (L)20
Machine net weight: (kg)800
Working weight:1200KG
Bucket capacity (m3)0.15
Overall operating height (mm)2750
Height to bucket hinge pin (mm)2200
Overall length ithout bucket(mm)2180
overall length with bucket(mm)2680
Dumping angle at maximum height(°)38
Dumping height(mm)1770
Dumping reach(mm)200
Wheelbase(mm)950
Ground clearance(mm)140
Big arm width: (mm)340
Width (mm)960
Bucket width (mm)1000


Compact Design Mini Skid Steer Loader Rapid Response 0Compact Design Mini Skid Steer Loader Rapid Response 1



Features:

  • Product Name: Mini Skid Steer Loader
  • Overall length without bucket (mm): 2180
  • Working weight: 1200KG
  • Height to bucket hinge pin (mm): 2200
  • Maximum driving speed (high speed): 8
  • Dumping angle at maximum height(°): 38

The Mini Skid Steer Loader is a versatile and compact machine that can handle a variety of tasks. With an overall length of 2180mm and a working weight of 1200KG, this Skid Steer Loader is perfect for small spaces and tight areas. The height to bucket hinge pin is 2200mm, allowing for easy loading and unloading. It has a maximum driving speed of 8km/h in high speed and a dumping angle of 38° at maximum height.



Technical Parameters:

Product NameMini Skid Steer Loader
Minimum travel speed (low speed)4
Engine brandBriggs&Stratton
Working weight1200KG
Height to bucket hinge pin (mm)2200
Machine net weight (kg)800
Overall length with bucket(mm)2680
Rated power (HP)13.5HP
Tire (track) model18*8.5-8
Overall operating height (mm)2750
Dumping angle at maximum height(°)38

This Mini Skid Steer Loader is also known as a Track Loader.



Applications:

The HTHY800-Y is designed for various Product Application Occasions and Scenarios. Its compact size makes it perfect for small spaces like backyards, alleys, and indoor construction sites. It is ideal for moving small amounts of materials like dirt, gravel, and mulch. It is perfect for digging and trenching, and its dumping angle at maximum height of 38° makes it easy to unload the materials where needed.
The Mini Skid Steer Loader is also perfect for agricultural use. It can be used for loading and unloading hay bales, moving animal feed, and cleaning animal pens. Its low speed of 4 allows for precise and controlled movement, making it easy to maneuver around livestock.
The HTHY800-Y is a must-have for any DIY homeowner who takes pride in their landscaping. It can be used for leveling and grading, moving rocks and stones, and transporting plants and trees. Its compact size and lightweight design make it easy to transport from one job site to another.
This Mini Skid Steer Loader comes with a fuel tank capacity of 20L, ensuring that it can work for long hours without needing a refuel. It has a maximum driving speed of 8, making it quick and efficient. The overall length without a bucket is 2180, making it easy to transport in a small truck or trailer.
The HIGHTOP Mini Skid Steer Loader – HTHY800-Y comes with a minimum order quantity of 1 set, and the price is negotiable. It is packaged in a wooden case for safe transportation. The delivery time is between 5-14 work days, and payment can be made using Western Union, MoneyGram, T/T, D/A, D/P, or L/C. With a supply ability of 100 sets per month, the HTHY800-Y Mini Skid Steer Loader is a reliable and durable piece of machinery that is perfect for various Product Application Occasions and Scenarios.



Customization:

Our Mini Skid Steer Loader has a dumping angle at maximum height of 38°, a working weight of 1200KG, and a minimum travel speed (low speed) of 4. The rated power is 13.5HP and the bucket capacity is 0.15m3. Additionally, we offer customization options for our Track Loader, Skid Steer Loader, and Crawler Skid Steer Loader to meet your specific needs.



Support and Services:

The Mini Skid Steer Loader product technical support and services include:

  • 24/7 technical support via phone and email
  • Online user manuals and troubleshooting guides
  • On-site equipment training and demonstrations
  • Regular maintenance and service options
  • Extended warranties and financing options

Our team of experienced technicians is dedicated to providing excellent support and service to help you get the most out of your Mini Skid Steer Loader. Contact us for more information.



Packing and Shipping:

Product Packaging:

  • The Mini Skid Steer Loader will be packed securely in a crate made of durable materials.
  • All parts and accessories will be properly wrapped and secured to prevent any damage during transit.
  • A user manual and safety instructions will be included in the packaging.

Shipping Information:

  • The Mini Skid Steer Loader will be shipped within 2-3 business days of receiving the order.
  • Shipping will be done through a reputable carrier with tracking information provided to the customer.
  • Shipping charges will be calculated based on the destination and weight of the package.
