1.2 Ton Mini Excavator 930mm Total Width and Full Hydraulic Control

Name: 1.2 Ton Mini Excavator 930mm Total Width and Full Hydraulic Control
Brand: Shandong Hightop Group
SKU: HT12G
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT12G

Product Details

Model:

HT12G

Engine:

Z482 Kubota Z482

Transportation Length:

2380mm

Total Width:

930mm

Upper Width:

940mm

Total Height (Cab Roof):

2270mm

Standard Track Shoe Width:

180mm

Track Gauge:

750mm

Bulldozer Blade Height Above Ground:

110mm

Highlight:

930mm Width Mini Excavator

820mm Tail Turning Radius Mini Excavator

Full Hydraulic Control Mini Excavator

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

D/A,L/C,D/P,T/T,Western Union,MoneyGram

Supply Ability

100 set per month

Product Description

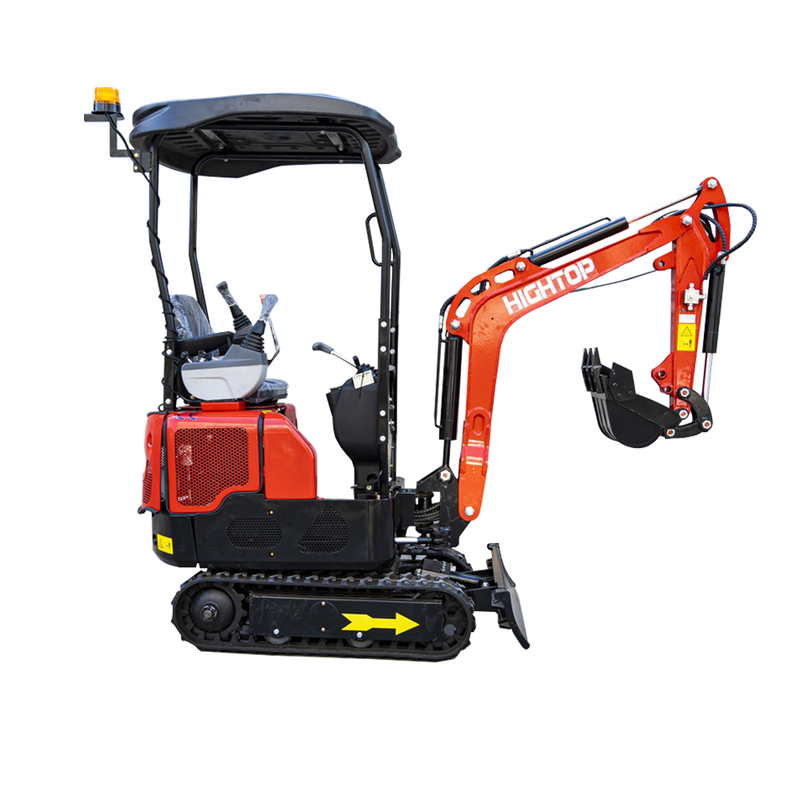

1.2 ton Mini Excavator HT12G

Product Features

Kubota Z482 Engine: Provides powerful power output and stable operation under various working conditions.
Full Hydraulic Control with Pilot System: Advanced pilot control system ensures more accurate operation, faster response, and improved work efficiency.
Compact Chassis Design: Total width of only 930mm with tail turning radius of 820mm, providing excellent maneuverability in narrow spaces.
Enhanced Structural Protection: Complete surface treatment including shot blasting, pickling, phosphating, and spraying for increased paint adhesion, durability, and corrosion resistance.

Technical Specifications

Model	HT12G	Maximum Excavation Height	2455mm
Engine	Z482 Kubota	Maximum Dumping Height	1620mm
Transportation Length	2380mm	Maximum Digging Depth	1850mm
Total Width	930mm	Maximum Excavation Distance	2920mm
Upper Width	940mm	Minimum Radius	1510mm
Total Height (Cab Roof)	2270mm	Maximum Height at Minimum Turning Radius	1930mm
Standard Track Shoe Width	180mm	Work Quality	900kg
Track Gauge	750mm	Bucket Capacity	0.02m³
Bulldozer Blade Height Above Ground	110mm	Form of Working Device	Backhoe
Bulldozer Shovel Pushes Excavation Depth	195mm	Gradeability	30 degrees
Tail Turning Radius	820mm
Track Grounding Length	890mm
Track Length	1235mm
