Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue
  • Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue
  • Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue
  • Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue
  • Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue
  • Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue

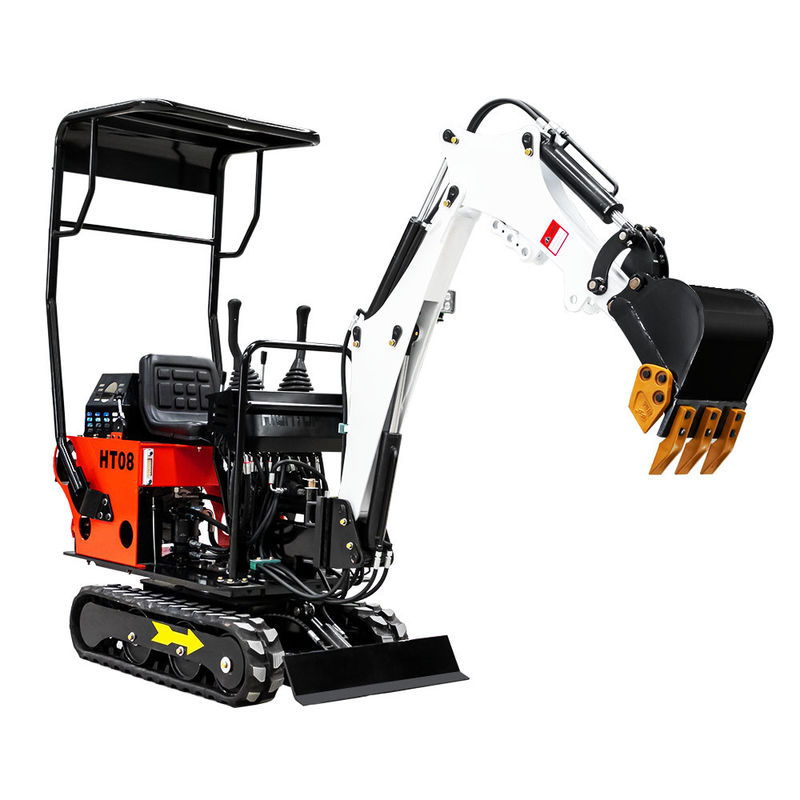

Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT08
Product Details
Operating Weight:
800kg
Max Digging Radius:
2450mm
Engine Brand:
KOOP 192F
Moving Type:
Crawler Excavator
Rated Speed:
2km/h
Application:
Construction Digging
High Light:

0.8ton Hightop Mini Excavator

,

Diesel Engine Hightop Mini Excavator

,

Diesel Engine 0.8 ton mini excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
80 set per month
Product Description

Diesel Engine Hydraulic 0.8ton Mini Excavator Customized Color Red Yellow Blue



Description:

Factory price mini digger excavator machine/Hightop mini excavator
-High fuel efficiency, super power
-Lower fuel Consumption, high configuration, superior performance
-Saving energy and protecting environment, customized color, red, yellow, blue, etc...

Excavators are able to equipped with multiple work equipments, such as quick hitch, log grab, ripper, leveling bucket, auger and
narrow bucket, as well as optional roof, radiator and others, so as to meet your needing.
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton and 2.2 ton mini Excavator for you too choose!



Features:

1. Unique big arm structure design not easy to break.

2. The operation front pipeline is clear.The protective cover protects the pipeline from being destroyed.

3. The boom cylinder adopts the well-known brand.The cylinder is designed integrated,which is more advanced than the
welding technology.

4. All structural parts are finely processed.Shot blasting, pickling, and baking finish process are adopted.The surface has high gloss and
high paint adhesion.

5. The hydraulic pump is a pure cast iron pump.which is more wear-resistant than aluminous pump under the 3600 rpm engine high speed.

6. All hydraulic pipes adopt high-quality German imported pipes.

7. Well-known crawler brand.For rubber track which uses Jin Lilong/Yuanchuang brand,a well-known crawler brand in China .

8. Quick and easy replacement of accessories



Technical parameters:



Performance Parameter
Rated power
12HP
Bucket Capacity
0.025 m3
Engine Model
changchai 192
Operating Weight
800 kg
Max.digging force
7.5KN
Pump form
Single gear pump
Set working pressure
14Mpa
Swing speed
12 rpm
Travel speed
2.2Km/h
Gradeability
30°
Ground pressure
19Kpa
Working Range
Max.digging distance
2450mm
Max.digging depth
1200mm
Max.digging height
2350mm
Max.dumping height
1600mm
Min.Swing radius
1100mm
Max.Digging depth of bulldozer blade
200mm
Max. Upgrade height of bulldozer blade
120mm
Dimensions
Total width
720-780mm
Total height
1300mm
Total length
2430mm
Min.ground clearance
80mm
Track ground length
1140mm
Track width
150mm



Applications:

Hightop mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.





Hightop mini excavator  Show Details:



Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue 0Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue 1Diesel Engine 0.8ton Hightop Mini Excavator Customized Color Red Yellow Blue 2
