Mini Hydraulic Excavator
>
|
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT08 |

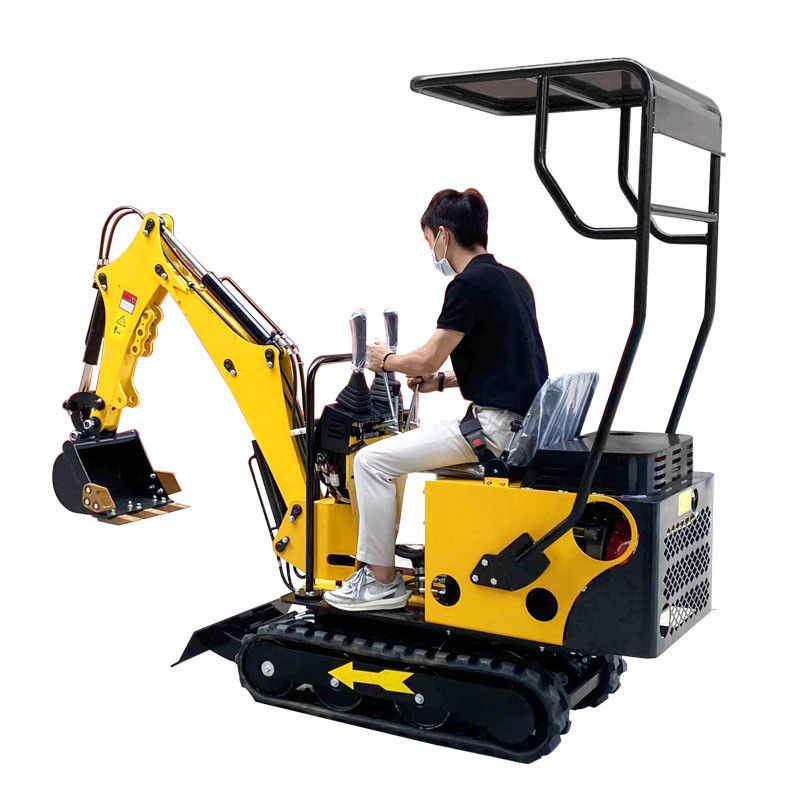

Diesel Engine Hydraulic 800kg Hightop Mini Excavator Customized Protective Cover
Description:
1. High fuel efficiency, super power
2. Lower fuel Consumption, high configuration, superior performance
3. Saving energy and protecting environment, customized color, red, yellow, blue, etc...
4. Excavators are able to equipped with multiple work equipments, such as quick hitch, log grab, ripper, leveling bucket, auger and
narrow bucket, as well as optional roof, radiator and others, so as to meet your needing.
Features:
1.Unique big arm structure design
2.The operation front pipeline is clear.
The protective cover protects the pipeline from being destroyed.
3.The boom cylinder adopts the well-known brand
The cylinder is designed integrated, which is more advanced than the welding technology.
4.All structural parts are finely processed.
Shot blasting, pickling, and baking finish process are adopted.
The surface has high gloss and high paint adhesion.
Technical parameters:
|
Performance Parameter
|
|
|
Rated power
|
7kw~7.5w
|
|
Bucket Capacity
|
0.025 m3
|
|
Engine Model
|
KOOP 192F
|
|
Operating Weight
|
800 kg
|
|
Max.digging force
|
7.5KN
|
|
Pump form
|
Single gear pump
|
|
Set working pressure
|
14Mpa
|
|
Swing speed
|
12 rpm
|
|
Travel speed
|
2.2Km/h
|
|
Gradeability
|
30°
|
|
Ground pressure
|
19Kpa
|
|
Working Range
|
|
|
Max.digging distance
|
2450mm
|
|
Max.digging depth
|
1200mm
|
|
Max.digging height
|
2350mm
|
|
Max.dumping height
|
1600mm
|
|
Min.Swing radius
|
1100mm
|
|
Max.Digging depth of bulldozer blade
|
200mm
|
|
Max. Upgrade height of bulldozer blade
|
120mm
|
|
Dimensions
|
|
|
Total width
|
720-780mm
|
|
Total height
|
1300mm
|
|
Total length
|
2430mm
|
|
Min.ground clearance
|
80mm
|
|
Track ground length
|
1140mm
|
|
Track width
|
150mm
|
Applications:
Hightop mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.
Hightop mini excavator Show Details:
