Mini Hydraulic Excavator
>
|
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT10B |

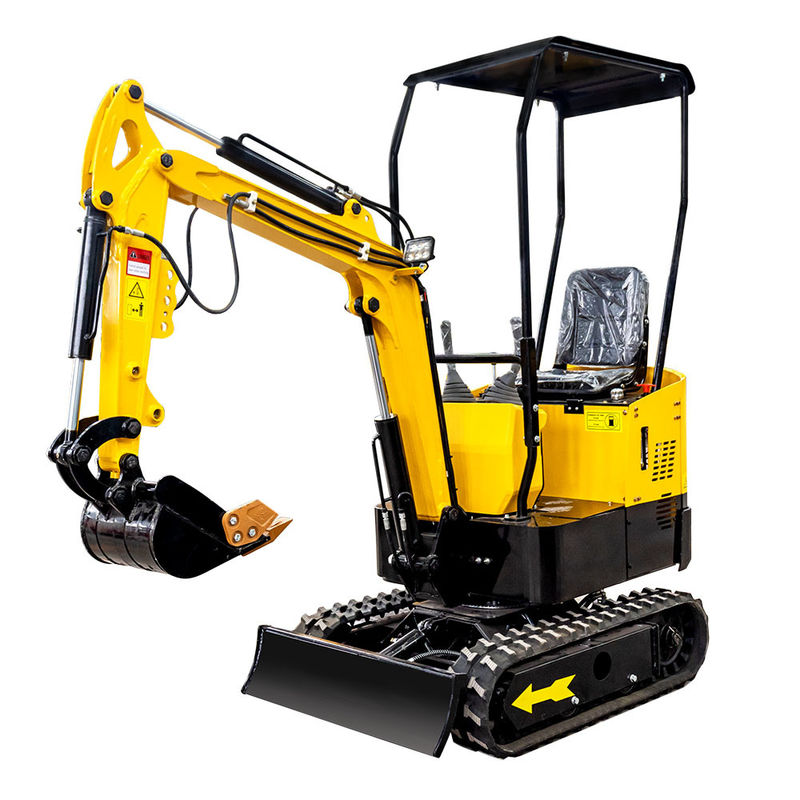

HT10B 1000kg crawler Hightop mini excavator EPA/EURO 5 home use small digger
Description:
Use domestic well-known brand Imported brand engine, strong power and stable working,or popular Koop Engine to meet europe emission demand. Cooperate with US EPA Engine to meet USA emission demand .
Other factories only can use common diesel engine,which can not meet USA and Europe emission demand.
Features:
1. The important components on the machine from developed countries :Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor
2. The hydraulic pipes all imported from Continental AG Germany Company .Not Easy to leak .
Other factories use lower quality high pressure pipe ,leaks everywhere after working one year.
3. 100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful.
No counterweight or counterweight less than 50kg
4. The structural parts of the machine are processed by brand supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable,non-bleaching and smoother.
Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty
5. The machine adds a pressure reducing valve device, which makes it easier to start when the machine starts.
No pressure reducing valve ,hard to start machine.
6. Optional Function
The dozer blade length can be adjusted according to the scope of work: 84cm-105cm,the dozer blade working height can be adjusted from -15cm to 15cm highest .
Other factories can only do fix length at 1000mm
7. Optional Function
The crawler can be stretched from minimum 830 to maximum 1000mm which and can pass through more narrow places .
8 .Optional Function
The boom can be deflected by 60 degrees turning left and right, making the job more flexible.
Other factories can only design fix boom or just turning by 30 degrees
Technical parameters:
|
Model
|
HT10B
|
|
Weight
|
1000kg
|
|
Digging bucket capacity
|
0.025cbm/120kg
|
|
Bucket width
|
380mm
|
|
Engine
|
KOOP (292F)
|
|
Optional Engine
|
BRIGGS & STRATTON YANMAR
|
|
Bore stroke
|
Single cylinder, fan cool
|
|
Rated power
|
7kw/3000r/min
|
|
Displacement
|
6.8ml/r
|
|
Travel speed
|
1.5km/h
|
|
Main Demensions
|
|
|
Overall dimension( LxWxH)
|
2775 x 930 x 2219 mm
|
|
Wheelbase
|
910mm
|
|
Total length of track
|
1230mm
|
|
Platform ground clearance
|
380 mm
|
|
Platform back turning radius
|
784 mm
|
|
Chassis width
|
897 mm
|
|
Track width
|
180 mm
|
|
Chassis ground clearance
|
132 mm
|
|
Track height
|
320 mm
|
|
Operating Range
|
|
|
Max. Digging depth
|
1750 mm
|
|
Max. Vertical digging depth
|
1375 mm
|
|
Max. Digging height
|
2610 mm
|
|
Max. Dumping height
|
1850 mm
|
|
Max. Digging radius on ground
|
2850 mm
|
|
Min. Rotation radius
|
1330 mm
|
|
Max. Upgrade height of bulldozer blade
|
345 mm
|
|
Max. Digging depth of bulldozer blade
|
255 mm
|
Applications:
Hightop mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.
Hightop mini excavator Show Details:
