HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine
  • HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine
  • HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine
  • HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine
  • HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine
  • HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT10BZ
Product Details
Product Name:
Mini Hydraulic Excavator
Model:
HT10BZ
Engine Brand:
B&S Gasoline Engine
Weight:
1100kg
Rated Power:
8.5kw
Displacement:
6.8ml/r
Swing Motor:
SJ-TECH (MP-1-160)
High Light:

1000kg Mini Crawler Excavator

,

Boom Swing small digging machine

,

Boom Swing Mini Crawler Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
80 set per month
Product Description

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Mini Digger



Description:

Cooperate with US BRAND Engine to meet USA emission demand .

Other factories only can use common diesel engine,which can not meet USA and Europe emission demand.



Features:

1. The important components on the machine from developed countries :Japan main hydraulic pump,Italy main valve ,Italy swing motor and travelling motor



2. The hydraulic pipes all imported from Continental AG Germany Company .Not Easy to leak .

Other factories use lower quality high pressure pipe ,leaks everywhere after working one year.



3. 100 kg counterweight is added to the rear of the machine which making the machine work more stable and powerful.

No counterweight or counterweight less than 50kg



4. The structural parts of the machine are processed by Japan Komatsu supporting manufacturers, and the whole vehicle is shot blasted, pickled, phosphated, and sprayed, which increases the adhesion of the paint molecules, and is more durable,non-bleaching and smoother.

Other manufacturers do not have these procedures, only simply polish and spray paint, which is easy to get rusty



5. The machine adds a pressure reducing valve device, which makes it easier to start when the machine starts.

No pressure reducing valve ,hard to start machine.



Technical parameters:


Weight
1100kg
Digging bucket capacity 0.025cbm/140kg
Bucket width 380mm
Engine B&S Gasoline engine
Rated power 8.5kw
Displacement 0.211 L
Bore stroke 70x55
Main pump CBK-F6.8
Displacement 6.8ml/r
Swing motor SJ-TECH (MP-1-160)
Traveling motor KERSEN(OMS-2450)
Travel speed 1.5km/h
Overall dimension( LxWxH) 2770x900/1100x1490 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Max. Digging depth 1650 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm




Applications:

Hightop mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.





Hightop mini excavator  Show Details:

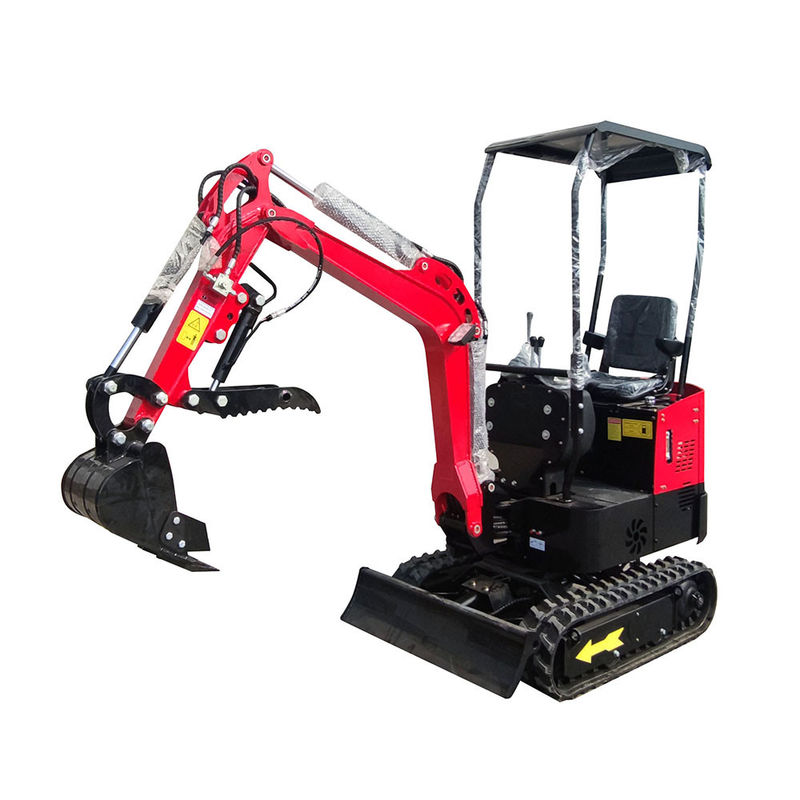

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine 0

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine 1HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine 2

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine 3

HT10BZ 1000kg Mini Crawler Excavator Optional Boom Swing Small Digging Machine 4
