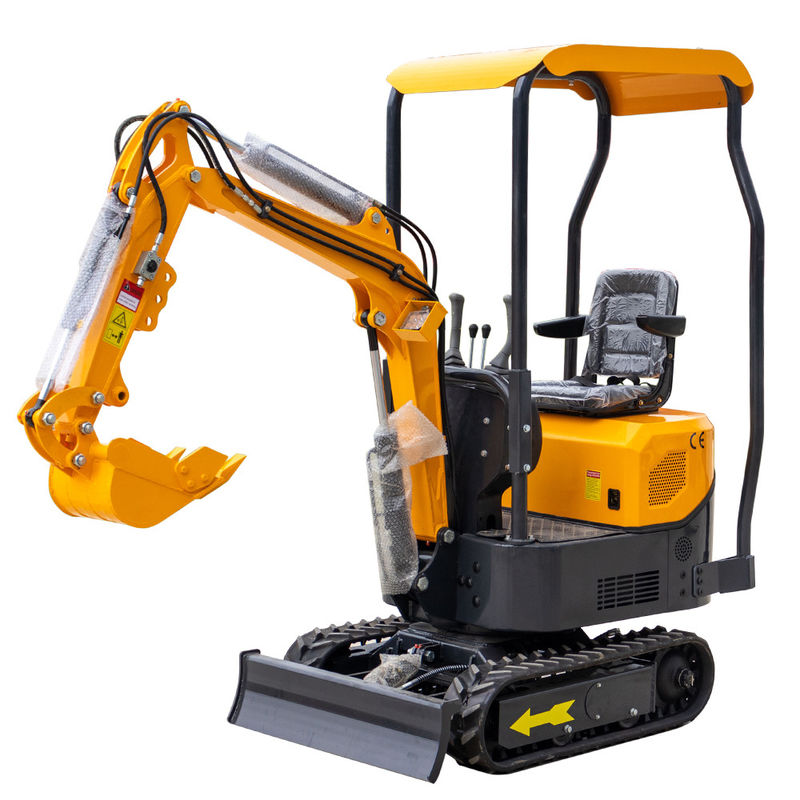

Four Legged Shed 1T Mini Excavator Long Life Construction Mini Digger

Four-Legged Shed 1T Hightop Mini Excavator The Back Cover Can Be Opened

Hightop mini excavator Description:

• Thickened four-legged shed

Super Power and Saving Energy
Optional function: swing boom, retractable track,Close Cab.
Long Life
Strong Power
360°Rotate
The back cover can be opened
Low Consumption

Hightop mini excavator Features:
1. Dynamical System High engine can ensure the reliability of the machine under bad working conditions.
Come with red flexible coupling that acts as a shock absorber. If the engine jumps or the different shafts act, this will compensate.

2. Oil Supply System
lubricating oil pressure alarm system for protect the machine, it will be alarm automatically if
no lubricating oil.
Equipped with high precision air filter and oil filter, the filtration accuracy is up to 1 micron, the filtration rate is more than 99.9%.
The hydraulic tank breathing valve has a pressure compensating valve and air filtering function. The other manufacturers' machines are only one cover, no pressure.
The entrance of the hydraulic oil tank is equipped with magnets to prevent tiny objects such as rust from entering the hydraulic oil tank.

3. Cooling System
Built-in sealed exhaust fan and good cooling system ensure the machine does not heat up and extend the service life.

4. Running System
Travel motor come with three hose, one is the unloading pipe, prevents the internal pressure of the motor from being too high, and the internal high-temperature oil will be discharged in the unloading pipe to improve the service life of the traveling motor.

5. Stable Equilibrium System
ISO TOPS/ROPS TEST analysis system is used in the 2-leg driving shed, which is safe and reliable with high stability.
New Cast iron counter weight to ensure more balanced digging force.
The back cover can be opened for easy refueling and maintenance

6. Security System
The key has the waterproof function, avoids to cause the power short circuit at the rainy day.
Safety seat is equipped with a seat belt that is mobile and more comfortable.
High strength German imported hydraulic pipeline, withstand higher pressure.
Using high strength bolts 4.9 and 8.8, other manufacturers are use white 4.8 bolts.
Beautiful Rubber Joystick.


HT10CS Hightop mini excavator Technical parameters:


Hightop mini excavator Applications:
Hightop mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.


HT10CS Hightop mini excavator  Show Details:
