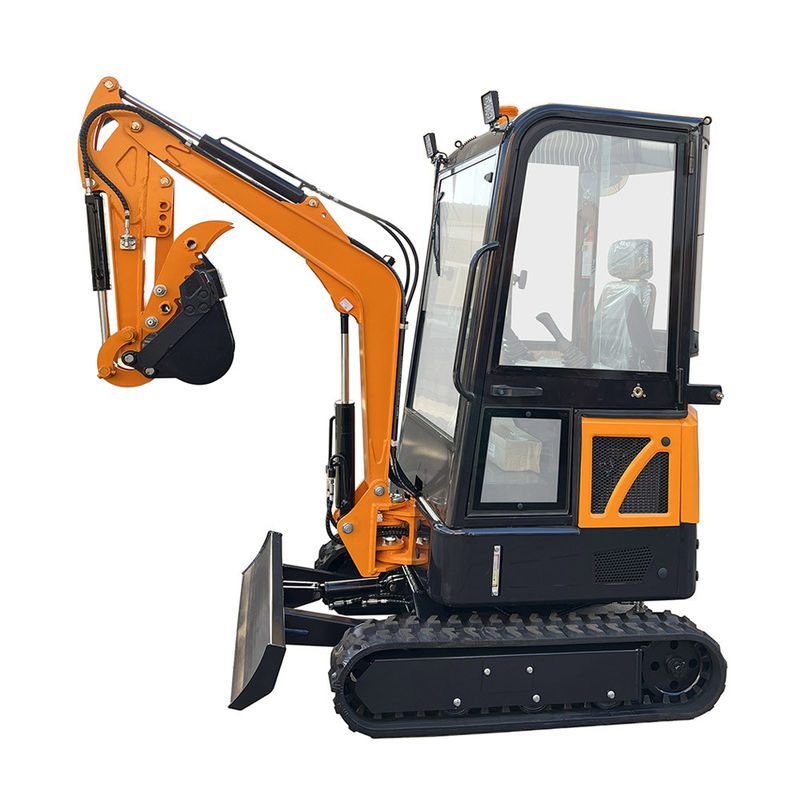

1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine
  • 1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine
  • 1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine
  • 1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine
  • 1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine

1700kg Micro Hightop Mini Excavator CE EPA Hydraulic Pump Mini Digging Machine

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT17-2
Product Details
Product Name:
Hightop Mini Excavator
Model:
HT17-2
Engine Brand:
Laidong
Operating Weight:
1700kg
Bore Stroke:
3 Cylinder, Water Cool
Overall Dimension( LxWxH):
2550x1300x2200 Mm
Highlight:

Hydraulic Pump Mini Digging Machine

,

1700kg Hightop Mini Excavator

,

1700kg Micro Mini Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

1700kg Micro Hightop Mini Excavator CE EPA Approved Hydraulic Pump Mini Digging



HT17-2 Hightop mini excavator Description:



EPA/CE,ISO certificate Optional: Boom swing
Color can choose Red, Yellow, Blue, accept customized

We are a professional factory specializing in the production of small excavators with 0.8T, 0.9T, 1T, 1.5T, 1.6T, 1.8T, 2T, 2.2T,3T, 3.5T mini excavator



HT17-2 Hightop mini excavator Features:



1. Hydraulic pump is easy to maintain, long life
2. The retractable undercarriage lets you access and work in the tightest areas.
3. Rubber track no damage to cement, tile floor.
4. Dig-to-blade and dozer float features allow for easy clean up.



Hightop mini excavator Technical parameters:



Model:HT17-2
Engine Emission Standard Tier 5/ Stage V
Engine Make Laidong/ Kubota
Engine Model 385/ D722
Engine Power /Rotation speed 18.2kw/10.2kw14HP)2500rpm
Engine Number of cylinder 3
Maximum Travel speed 3.5km/h
Width of track shoe 200mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
PERFORMANCE PARAMETER
Standard Bucket capacity 0.03m³
Swing speed 9 rpm
Max. Grade ability 35°
Maximum Bucket digging force 18KN
Maximum Arm digging force 11KN
Hydraulic system pressure 18.2Mpa
Machine weight 1650kg
MACHINE SIZE
Overall dimension (L*W*H) 2550mm*1100mm*2310mm
Wheel base 1100mm
Chassis width 1100mm
Axle base(Track length on ground) 1300mm
Track width 180mm
Min.Ground clearance 380mm
Working Range
Maximum Digging height 27400mm
Maximum Dumping height 2100mm
Maximum Digging depth 2150mm
Maximum Vertical digging depth 2320mm
Maximum Digging radius 2400mm
Minimum swing radius 1190mm
Maximum Lifting height of blade 325mm
Maximum Cutting depth of blade 175mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°




Applications:



HT17-2 hightop mini excavator is widely used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is with compact design, and with low oil consumption,and easy to maintain.



Our Advantage:



1.We pride ourself on our considerated and professional sale service team.



2.Our company has stuffcient resources and capabilities in order to control the cost price advantage.



3.We have a professional production and R & D team, strictly control and quality design.



4.With ten years production experience and marketing, all of our products are greatly appreciated.



HT17-2 Hightop Mini Excavator  Show Details:
