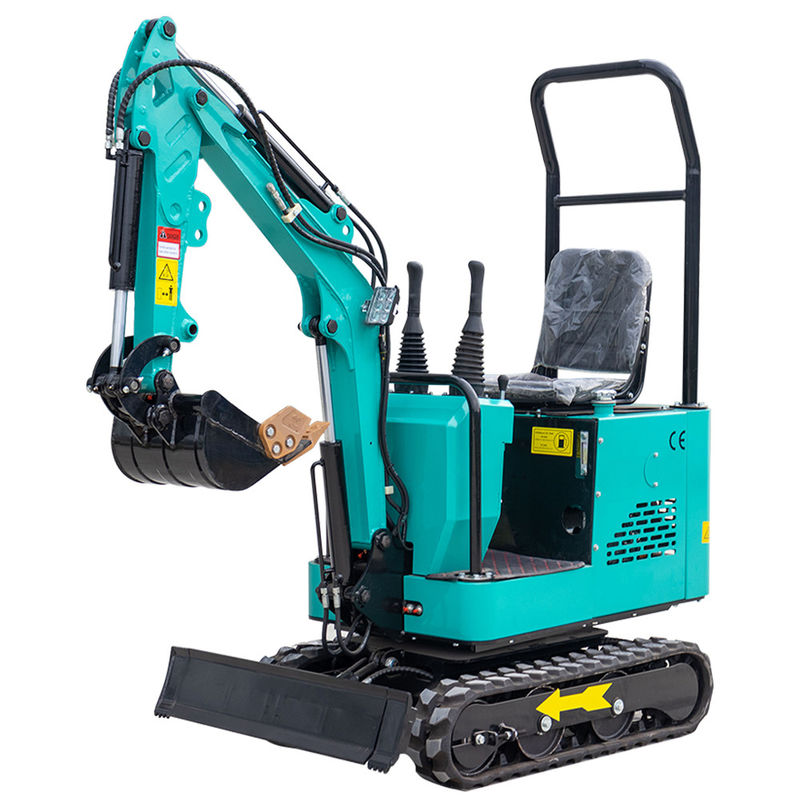

Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System
  • Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System
  • Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System
  • Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System
  • Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System

Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number PC10
Product Details
Product Name:
Hightop Mini Excavator
Model:
PC10
Engine Brand:
KOOP 192F
Operating Weight:
780kg
Bucket Capacity:
0.025 M2
Rated Power:
10.2KW/2500RPM
High Light:

Multifunctions Mini Hydraulic Excavator

,

Euro5 Mini Hydraulic Excavator

,

Euro5 mini home excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System Function



Hightop mini excavator Description:

Super Power and Saving Energy

Euro 5, EPA, CE,IsO Certificate

Optional function: swing boom, retractable track

Quick and easy replacement of accessories

Multi-functions



PC10 hightop mini excavator is a compact excavator, only 88 cm width which can easily fit through most doorways, permitting access inside of buildings.





Hightop mini excavator Features:



1. The hydraulic oil tank volume is 21L, which is 6 liters larger than other manufacturers’ excavator hydraulic oil tanks, which extends the continuous working hours in hot weather.



2. The dozer blade is retractable which can fully extend to 900mm width ,(other factories dozer blade is fixed at 700mm ),the machine body is more stable when working, especially working in the side direction, it is not easy to roll over.



3.  The PC10 Mini excavator uses the Changchai 192 engine, strong power and stable working,or popular Koop Engine to meet Europe emission demand.





Hightop mini excavator Technical parameters:



Performance Parameter
Rated power 12HP
Bucket capacity 0.025 m2
Engine model KOOP 192
Optional engine Briggs &Statton
Operating Weight 780 kg
Max. digging force 7 5KN
Pump form Single gear pump
working pressure 14Mpa
Swing speed 12 rpm
Travel speed 2.2Km/h
Gradeability 30°
Ground pressure 19Kpa
Dimensions
Total width 880mm
Total height 1380-1980mm(Folding safety frame)
Total length 2600mm
Min. ground clearance 100mm
Track ground length 1140mm
Track width 150mm
Working Range
Max. digging distance 2750mm
Max. digging depth 1450mm
Max diging height 2600mm
Max. dumping height 1760mm
Min Swing radius 1100mm
Max. ground clearance of bulldozer 120mm
Max. support depth of bulldozer 200mm




Applications:



PC10 hightop mini excavator is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments, digging the hole for tree planting of Fruit-land Nurseries, Concrete pavement crushing, sand-gravel material mixing, construction work in the narrow space.





PC10 Hightop mini excavator  Show Details:



Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 0



Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 1

Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 2

Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 3Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 4







Multifunctions 1000kg Euro5 Mini Hydraulic Excavator With Roll Over Protection System 5
