Mini Hydraulic Excavator
>
|
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT15 |
Hightop Mini Full Hydraulic Excavator 1500kg CE EPA Certificate Compact Digger
HT15 mini hydraulic excavator description:
Euro 5, EPA, CE,ISO certificate
Optional:hydraulic pilot joystick,boom swing,extendable
Strong Power and Simple operation
Low Consumption and Excellent quality
HT15 mini hydraulic excavator Features:
1. Hydraulic pilots
2. Famous brand engine.Low fuel consumption and guaranteed quality.
3. 360°Rotate
4. Extendable track.
5. Rubber track.Gear transmission,strong grip,Optional telescopic crawler.
6. All with oil drain.All with oil drain pipe for travel motor and swing motor.
Mini hydraulic excavator technical parameters:
|
Model
|
HT15
|
|
Operating Weight
|
1500kgs
|
|
Digging bucket capacity
|
0.045cbm/200kg
|
|
Bucket width
|
420mm
|
|
Engine
|
CHANGCHAI (KD192),KOOP,KUBOTA
|
|
Bore stroke
|
Three cylinder,water cooled
|
|
Rated power
|
10 kw/2200r/min
|
|
Displacement
|
6.8ml/r
|
|
Main pump
|
China
|
|
MAIN DEMENSIONS
|
|
|
Overall dimension( LxWxH)
|
3160*1040*2377mm
|
|
Total length of track
|
1230mm
|
|
Platform ground clearance
|
437 mm
|
|
Platform back turning radius
|
740 mm
|
|
Chassis width
|
1040 mm
|
|
Track width
|
180 mm
|
|
Chassis ground clearance
|
132 mm
|
|
Track height
|
320 mm
|
|
Max. Digging depth
|
2150 mm
|
|
Max. Vertical digging depth
|
1740 mm
|
|
Max. Digging height
|
3275 mm
|
|
Max. Dumping height
|
2310 mm
|
|
Max. Digging radius on ground
|
3470 mm
|
|
Min. Rotation radius
|
1440 mm
|
|
Max. Upgrade height of bulldozer blade
|
262 mm
|
|
Max. Digging depth of bulldozer blade
|
192 mm
|
Applications:
HT15 mini hydraulic excavator designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

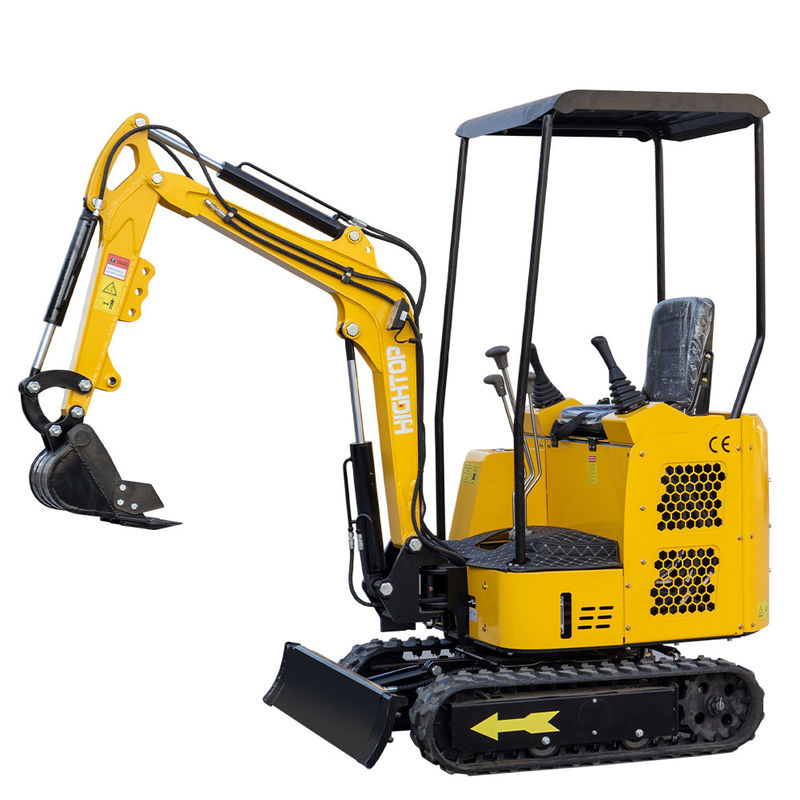

HT15 mini hydraulic excavator show details:
