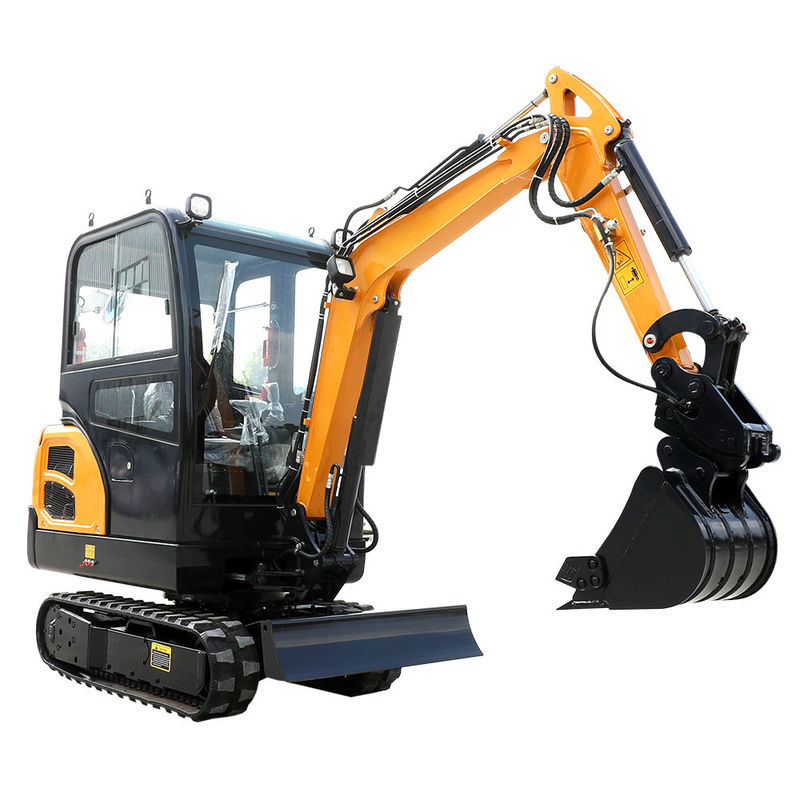

Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator
  • Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator
  • Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator
  • Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator
  • Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator

Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT20-1
Product Details
Product Name:
Hightop Mini Excavator
Model:
HT20-1
Engine Brand:
KUBOTA
Operating Weight:
2000kg
Power /Rotation Speed:
14.1kw(20HP)2000rpm
Bucket Capacity:
0.1m³
High Light:

KUBOTA Engine Small Tracked Excavator

,

Boom Swing 2 Ton Mini Excavator

,

KUBOTA Engine 2 Ton Mini Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

2ton Boom Swing Hightop Mini Excavator Japan Engine Small Digger



HT20-1 Hightop Mini Excavator  Description:



This 2 ton mini excavator can be easy to change any accessory of excavator.

Retractable shoes and steel shoes are optional.

Front window can open and close

Gauge shows water temperature, battery capacity, total working time, front lamp, work lamp, charging indication and Engine oil pressure.





HT20-1 Hightop Mini Excavator  Features:



1. Air cleanliness adjustment

There are harmful gases and dust in the air to varying degrees, and they can easily enter the trachea, lungs and other organs with human breathing. These dusts often carry bacteria and spread various diseases. Therefore, it is very necessary to filter the air in the air conditioning process.

Purification methods are: ventilation, filtration, adsorption, absorption, etc.



2. STARTER

Open the battery power, insert key into starter, turn the key anticlockwise to first gear, engine is preheated. Turn the key clockwise to middle position, then turn the key clockwise to start the engine, Please remove your hand off the key after engine is started.





Hightop Mini Excavator Technical parameters:



ENGINE
Emission Standard Euro5/ EPA
Engine Model KUBOTA
Power/Rotation speed 14.1kw(20HP)2000rpm
Optional Engine China Laidong 22.1kw,2300rpm
Number of cylinder 3
TRACK SYSTEM
Maximum Travel speed 3.5km/h
Width of track shoe(Rubber & steel track) 230mm
Number of track shoe per side(Steel track only) 38 pcs
Number of upper roller per side 0
Number of bottom roller per side 4
PERFORMANCE PARAMETER
Standard bucket capacity 0.1m³
Swing speed 12rpm
Max. Grade ability 30°
Max. Bucket digging force 15.3KN
Max. Arm digging force 10.5KN
Hydraulic system pressure 18Mpa
Machine weight 2000kg
Arm length 1000mm
MACHINE SIZE
Overall dimension (L*W*H) 4170mm*1300mm*2280mm
Axle base(Track length on ground) 1230mm
Track gauge 1070mm
Min.Ground clearance 230mm
Swing radius at tail 1180mm
WORKING RANGE
Max. Digging height 3700mm
Max. Dumping height 2290mm
Max. Digging depth 2450mm
Max. Vertical digging depth 2160mm
Max. Digging radius 4370mm
Min .swing radius 2020mm
Max. Lifting height of blade 240mm
Max. Cutting depth of blade 310mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°



Applications:



HT20-1Mini Hydraulic Excavator is flexible and are suitable for house maintenance, pipeline openings and other infrastructure construction excavation work.



HT20-1 Mini Hydraulic Excavator Show Details:



Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator 0Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator 1

Boom Swing 2 Ton Mini Excavator Japan Engine Small Tracked Excavator 2
