Mini Hydraulic Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT25 |

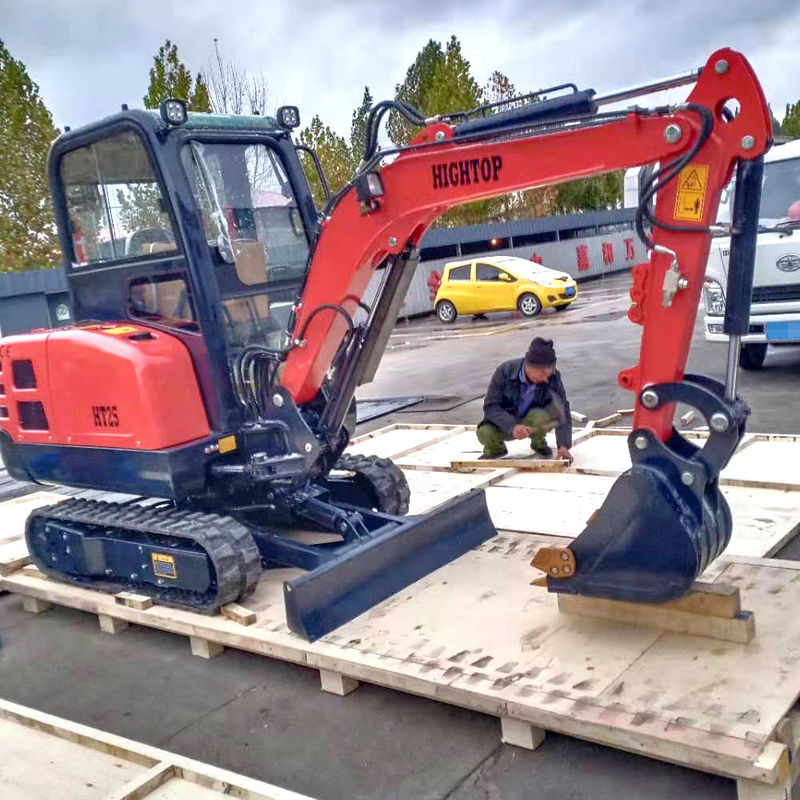

2500kg Mini Hydraulic Excavator Retractable Shoes Mini Digger
HT25 Mini Hydraulic Excavator Description:
2.5T Mini Excavator High fuel efficiency,super power Saving energy and protecting environment.
HT25 Mini Hydraulic Excavator Features:
China laidong 3TE25 type engine , 22.1kw, stage III, front glass can be designed with open or closed
Simple Controls:
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.
Mini Hydraulic Excavator Technical parameters:
| Machine Size | |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Min.Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| Track System | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| Performance Parameter | |
| Standard bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Max. Grade ability | 30° |
| Max. Bucket digging force | 15.3KN |
| Max. Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2500kg |
| Arm length | 1000mm |
| Engine | |
| Emission Standard | Euro5/ EPA |
| Engine Model | KUOBTA |
| Power/Rotation speed | 14.1kw(20HP)2000rpm |
| Optional Engine | China Laidong 22.1kw,2300rpm |
| Number of cylinder | 3 |
| Working Range | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2290mm |
| Max. Digging depth | 2450mm |
| Max. Vertical digging depth | 2160mm |
| Max. Digging radius | 4370mm |
| Min .swing radius | 2020mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 310mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Applications:
Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.
HT25 Mini Hydraulic Excavator Show Details:
