2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator
  • 2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator
  • 2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator
  • 2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator
  • 2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator

2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT25-2
Product Details
Product Name:
Hightop Mini Excavator
Model:
HT25-2
Engine Brand:
KUBOTA D1105
Operating Weight:
2500kg
Power /Rotation Speed:
20HP
Bucket Capacity:
0.07m³
High Light:

2500kg micro mini digger

,

Retractable Shoes Compact Mini Excavator

,

2500kg Compact Mini Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

2500kg Hightop Mini Excavator Retractable Shoes Compact Digger



HT25-2 Hightop Mini Excavator Description:



High fuel efficiency, super power
Lower fuel Consumption, high configuration, superior performance
Saving energy and protecting environment, customized color, red, yellow, blue, etc...



HT25-2 Hightop Mini Excavator Features:



Excavators are able to equipped with multiple work equipments, such as quick hitch, log grab, ripper, leveling bucket, auger and
narrow bucket, as well as optional roof, radiator and others, so as to meet your needing.
We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton and 2.2 ton mini Excavator for you too choose!





Hightop Mini Excavator Technical parameters:



Model:HT25-2
Emission Standard Tier 5/ Stage V
Make KUBOTA
Model D1105
Power /Rotation speed 14.1kw(20HP)@2000rpm
Number of cylinder 3
Maximum Travel speed 3km-5.5km/h
Width of track shoe 250mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
PERFORMANCE PARAMETER
Standard Bucket capacity 0.07m³
Swing speed 9 .5 rpm
Max. Grade ability 35°
Maximum Bucket digging force 19.5KN
Maximum Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2480kg
MACHINE SIZE
Overall dimension (L*W*H) 3850*1300/1500*2290mm
Chassis Recovery 1300mm
Chassis Extension 1500mm
Axle base(Track length on ground) 1300mm
Min.Ground clearance 230mm
Swing radius at tail 750mm
Working Range
Maximum Digging height 3980mm
Maximum Dumping height 2610mm
Maximum Digging depth 2500mm
Maximum Vertical digging depth 2050mm
Maximum Digging radius 4130mm
Minimum swing radius 1850mm
Maximum Lifting height of blade 280mm
Maximum Cutting depth of blade 310mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 55°



Applications:



HT25-2 mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.





HT25-2 Hightop Mini Excavator  Show Details:

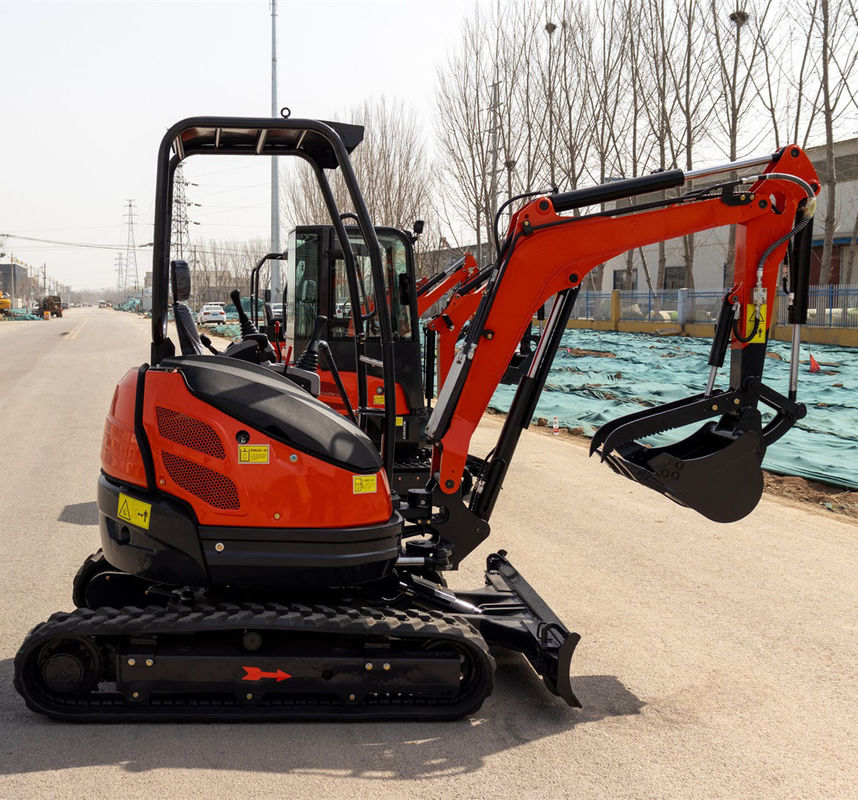

2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator 0

2500kg Hightop Micro Mini Digger Retractable Shoes Compact Mini Excavator 1
