Mini Hydraulic Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT25-2 |
2500kg Mini Hydraulic Excavator Manufacturer Earth-Moving Machinery
HT25-2 Mini Hydraulic Excavator Description:
Multifunctional, bucket can be replaced with Auger, Grab, Hydraulic Hammer, Narrow bucket and other accessories.
Accept OEM,Euro5,EPA,Products Approved with CE.
HT25-2 Mini Hydraulic Excavator Features:
1. Unique big arm structure design not easy to break.
2. The operation front pipeline is clear.The protective cover protects the pipeline from being destroyed.
3. The boom cylinder adopts the well-known brand.The cylinder is designed integrated,which is more advanced than the
welding technology.
Mini Hydraulic Excavator Technical parameters:
| Model:HT25-2 | |
| Emission Standard | Tier 5/ Stage V |
| Make | KUBOTA |
| Model | D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| Maximum Travel speed | 3km-5.5km/h |
| Width of track shoe | 250mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 .5 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 19.5KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2480kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3850*1300/1500*2290mm |
| Chassis Recovery | 1300mm |
| Chassis Extension | 1500mm |
| Axle base(Track length on ground) | 1300mm |
| Min.Ground clearance | 230mm |
| Swing radius at tail | 750mm |
| Working Range | |
| Maximum Digging height | 3980mm |
| Maximum Dumping height | 2610mm |
| Maximum Digging depth | 2500mm |
| Maximum Vertical digging depth | 2050mm |
| Maximum Digging radius | 4130mm |
| Minimum swing radius | 1850mm |
| Maximum Lifting height of blade | 280mm |
| Maximum Cutting depth of blade | 310mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 55° |
Applications:
HT25-2 mini excavator is suitable for garden repair, ditching and digging, town construction, farmland water conservancy, landscaping and other small engineering projects.

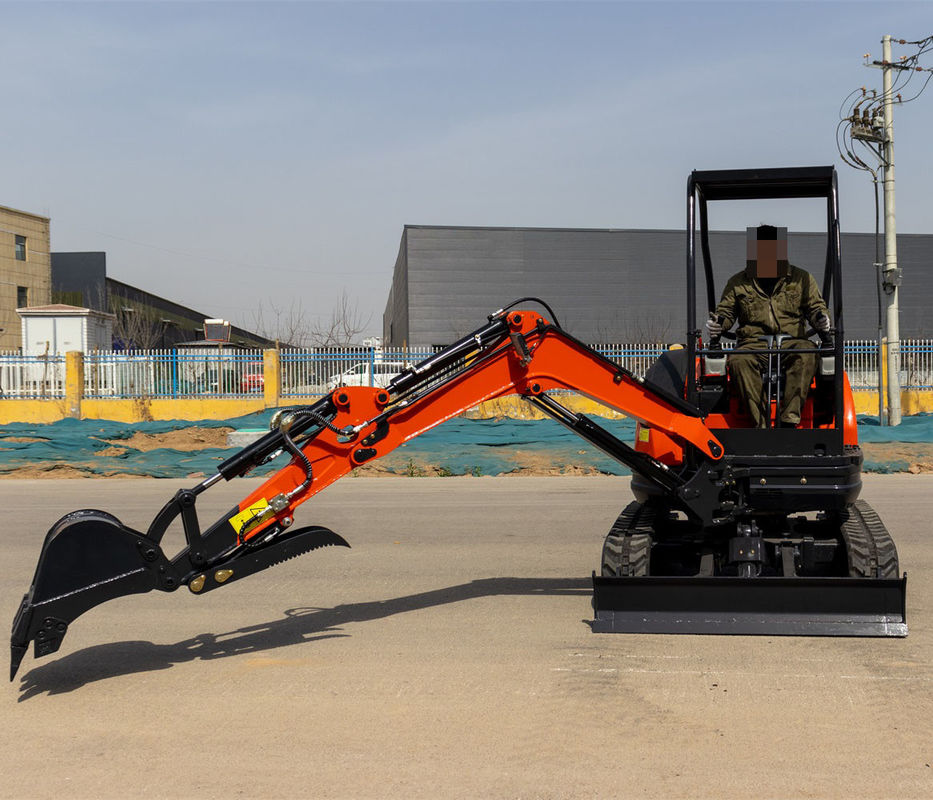

HT25-2 Mini Hydraulic Excavator Show Details:
