| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT30 |
3T Cabin Mini Hydraulic Excavator CE Euro 5 Engine Rubber Tire Mini Digger
HT30 Mini Hydraulic Excavator Description:
Mini Excavator, also called Small Excavator , Micro Excavator. It including 0.8ton mini excavator,mini excavator 3 ton,long arm
excavator,wheel excavator...used in a orchard,farm, greenhouse, to break the road, rake the hay,grab the wood.
HT30 Mini Hydraulic Excavator Features:
EPA/CE,ISO certificate ,Euro 5 engine, Optional: Boom swing
Colors can be customized: red, yellow, white, blue
Mini Hydraulic Excavator Technical parameters:
| 外形尺寸OVERALL DIMENS IONS | |
| 运输总长(mm) Total Length | 4180 |
| 运输总宽(mm) Total Width | 1500 |
| 运输总高(mm) Total Height | 2128 |
| 最低离地(mm) Ground Clearance | 458 |
| 整车重量(kg)Total Weight | 2600 |
| 接地比压(kpa) Ground Pressure | 38 |
| 性能PERFORMANCE | |
| 最大挖掘高度(mm) Max. Digging Height | 3900 |
| 最大挖掘半径(mm) Max. Digging Radius | 4040 |
| 最大挖掘深度(mm) Max. Digging Depth | 2500 |
| 最大装卸高度(mm) Max. Dumping Height | 2600 |
| 转角(度) Slewing Angle _ | 360° |
| 爬坡角(度) Grade ability | 25° |
| 行走速度(km/h)Travel speed | 2.6 |
| 斗容(m3 ) Bucket Capacity | 0.095 |
| 铲斗宽度(mm) Bucket Width | 500 |
| 动臂偏转角度(左/右) Swing angle of boom(° )L/R | 70/50 |
| 履带 TRACK | |
| 中心距(mm) Track Gauge | 1150 |
| 宽(mm) Track Width | 250/ 260 |
| 接地长(mm) Track Length (on ground) | 2300 |
| 液压参数HYDRAULIC SYSTEM | |
| 主泵Main Pump | |
| 主压力(Mpa) Main Pressure | Triple Pump |
| 泵最大转速(r/min)Max. Rpm of the pump | 18 |
| 泵排量(ml/r) Pump Displacement | 2500 |
Applications:
HT30 cab mini excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.

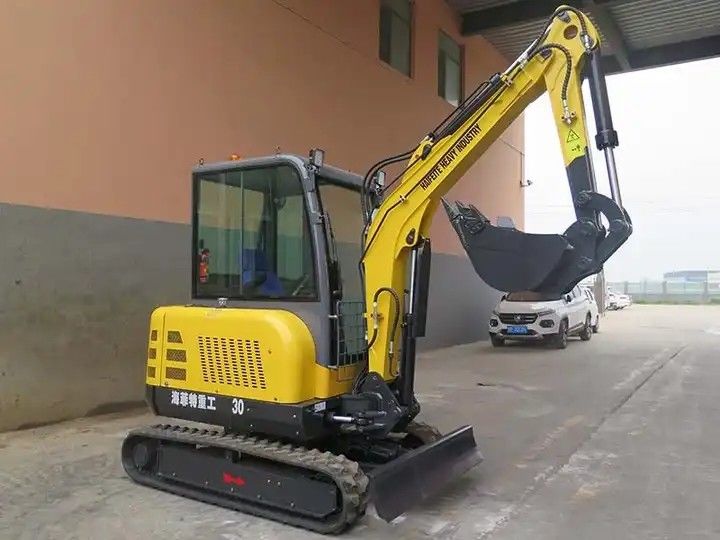

HT30 Cab Mini Hydraulic Excavator Show Details:
