Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator
  • Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator
  • Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator
  • Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator
  • Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator

Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator

Place of Origin China
Brand Name Hightop
Certification CE,EPA,ISO,TUV
Model Number HT40
Product Details
Product Name:
Mini Hydraulic Excavator
Model:
HT40
Engine:
KUBOTA D1703
Overall Dimension (L*W*H):
4915mm*1720mm*2525mm
Emission Standard:
Euro 5,EPA4
Track Width:
300mm
High Light:

Closed Cabin 4t Mini Excavator

,

Kubota Engine 4t Mini Excavator

,

Kubota Engine Small Long Reach Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

4T Closed Cabin Hightop Mini Excavator Japan Engine Small Digger



HT40 Hightop Mini Excavator Description:



HT40 small excavator hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.



HT40 Hightop Mini Excavator Features:



1. Hydraulic pilot servo operation system

2. Steel track :300mm

3. With hydraulic hammer pipeline system

4. Bucket capacity: 0.12m³

5. With dozer blade

6. with high-low speed

7. with side boom



Hightop Mini Excavator Technical parameters:



ENGINE
Emission Standard Euro 5,EPA4
Make /Model KUBOTA /D1703
Power /Rotation speed 18.5kw(25HP)@2200rpm
Number of cylinder 3
Type In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque 97.4N.m/1500rpm
Displacement 1.647L
TRACK DRIVING SYSTEM
Maximum Travel speed(High/low) 4.4/2.4km/h
Width of steel track shoe 300mm
Carrier roller(Each side) 1
Supporting roller(Each side) 4
PERFORMANCE PARAMETER
Standard Bucket capacity 0.12m³
Swing speed 9rpm
Maximum Grade ability 58%
Ground pressure 32Kpa
Maximum Bucket digging force 30.4KN
Maximum Arm digging force 18.2KN
Hydraulic system pressure 22.5Mpa
Machine weight 3810kg
Boom length 2535mm
Arm length 1400mm
Fuel tank capacity 42L
Hydraulic oil tank capacity 48.5L
Engine oil capacity 7L
MACHINE SIZE
Overall dimension (L*W*H) 4915mm*1720mm*2525mm
Axle base(Track length on ground) 1670mm
Length of rubber track 2154mm
Track gauge 1420mm
Minimum Ground clearance 295mm
Swing radius at tail 860mm
Swing radius at front 2538mm
Height of blade 350mm
WORKING RANGE
Maximum Digging height 4800mm
Maximum Dumping height 3406mm
Maximum Digging depth 3208mm
Maximum Vertical digging depth 2957mm
Maximum Digging distance 5480mm
Maximum digging distance (on ground) 5359mm
Minimum swing radius 2530mm
Max.height when min.swing radius 3655mm
Maximum Lifting height of blade 365mm
Maximum Cutting depth of blade 385mm
Boom swing angle(Left/Right) 55°/65°



Applications:



HT40 cab mini excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.

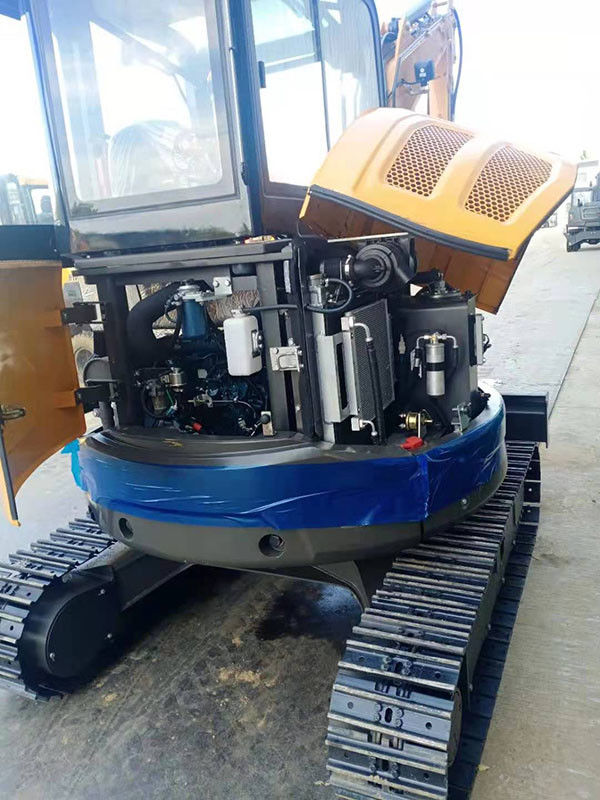

HT40 Closed Cabin Hightop Mini Excavator Show Details:



Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator 0Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator 1

Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator 2Closed Cabin 4t Mini Excavator Japan Engine Small Long Reach Excavator 3
