PC10 Mini Crawler Excavator with Euro5 Engine 0.025 m2 Bucket Capacity and 780kg Operating Weight

Name: PC10 Mini Crawler Excavator with Euro5 Engine 0.025 m2 Bucket Capacity and 780kg Operating Weight
Brand: Shandong Hightop Group
SKU: PC10
Price: Negotiable USD
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	PC10

Product Details

Product Name:

Mini Crawler Excavator

Model:

PC10

Engine Brand:

KOOP 192F

Operating Weight:

780kg

Bucket Capacity:

0.025 M2

Rated Power:

10.2KW/2500RPM

Highlight:

1tone Small Garden Excavator

1tone Compact Crawler Excavator

Euro5 Engine Small Garden Excavator

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-14 work days

Payment Terms

T/T,D/P,L/C

Supply Ability

100 set per month

Product Description

1tone Small Garden Excavator Euro5 Engine Compact Crawler Excavator PC10

Product Overview

PC10 1000kg Mini Crawler Excavator with Euro5 Engine - Compact Garden Excavator featuring superior power and energy efficiency. Certified with Euro 5, EPA, CE, and ISO standards. Optional functions include swing boom and retractable track capabilities.

Key Features

21L hydraulic oil tank capacity - 6 liters larger than competitors, extending continuous operation in hot weather
Retractable dozer blade extends to 900mm width (vs. standard 700mm), providing superior stability during side operations
Powered by Changchai 192 engine for strong, stable performance or optional engines meeting European emission standards
Quick and easy accessory replacement system
Multi-functional capabilities for diverse applications

Technical Specifications

Performance Parameters

Rated power	12HP
Bucket capacity	0.025 m³
Engine model	KOOP 192
Optional engine	Briggs & Stratton
Operating Weight	780 kg
Max. digging force	7.5 KN
Pump form	Single gear pump
Working pressure	14 Mpa
Swing speed	12 rpm
Travel speed	2.2 Km/h
Gradeability	30°
Ground pressure	19 Kpa

Dimensions

Total width	880mm
Total height	1380-1980mm (Folding safety frame)
Total length	2600mm
Min. ground clearance	100mm
Track ground length	1140mm
Track width	150mm

Working Range

Max. digging distance	2750mm
Max. digging depth	1450mm
Max digging height	2600mm
Max. dumping height	1760mm
Min Swing radius	1100mm
Max. ground clearance of bulldozer	120mm
Max. support depth of bulldozer	200mm

Applications

PC10 hightop mini excavator is suitable for loosening soil in vegetable greenhouses, campus greening for municipal departments, digging tree planting holes for fruit-land nurseries, concrete pavement crushing, sand-gravel material mixing, and construction work in narrow spaces.

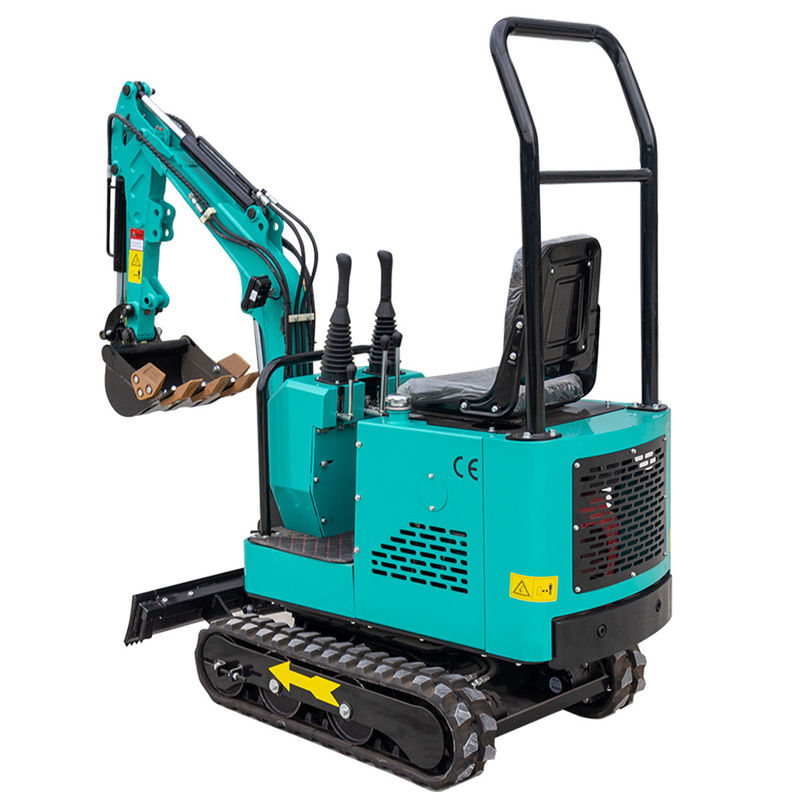

Product Images
