Mini Crawler Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT15-2 |
1.5T EPA CE Mini Crawler Excavator Accept Customized Small Digger
HT15-2 Mini Crawler Excavator Description:
Euro 5, EPA, CE,ISO certificate
Optional:hydraulic pilot joystick,boom swing,extendable
Long life
Strong Power
360°Rotate
Simple operation
Low Consumption
Excellent quality
HT15-2 Mini Crawler Excavator Features:
1. Hydraulic pilots
2. Famous brand engine.Low fuel consumption and guaranteed quality.
3. Optional
4. Extendable track .990-1170mm
5. Rubber track.Gear transmission,strong grip,Optional telescopic crawler.
6. All with oil drain.All with oil drain pipe for travel motor and swing motor.
Mini Crawler Excavator Technical parameters:
| Model:HT15-2 | |
| Emission Standard | Tier 5/ Stage V |
| Engine | Kubota |
| Model | D722 |
| Power /Rotation speed | 10.2kw(15HP)2500rpm |
| Number of cylinder | 3 |
| Maximum Travel speed | 4km/h |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.025m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Machine weight | 1350kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2450mm*940mm*2150mm |
| Chassis width | 1000mm |
| Axle base(Track length on ground) | 1300mm |
| Track width | 200mm |
| Min.Ground clearance | 380mm |
| MAIN DEMENSIONS | |
| Maximum Digging height | 2640mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 1800mm |
| Maximum Vertical digging depth | 2230mm |
| Maximum Digging radius | 2350mm |
| Minimum swing radius | 1190mm |
Applications:
HT15-2 mini excavator designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

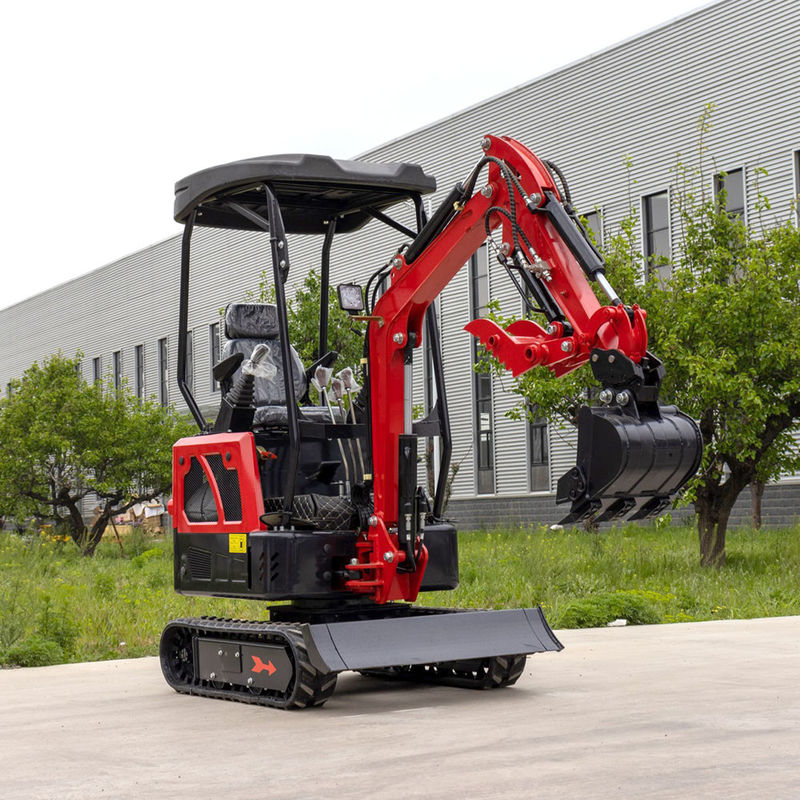

HT15-2 Mini Crawler Excavator Show Details:
