Small Wheel Loader
>
|
| Place of Origin | China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT180 |
HT180 All Hydraulic Small Wheel Loader KUBATA Engine Mini Loader
Technical parameters of Small Wheel Loader :
| Model | H180 |
| Performance | |
| Rated loading | 800kg |
| Operation weight | 2000kg |
| Max. Shovel width | 1180mm |
| Bucket capacity | 0.3cbm |
| Max. grade ability | 30° |
| Min. ground clearance | 200mm |
| Wheelbase | 1540mm |
| Steering angle | 49° |
| Max. dump height | 2167mm |
| Load over height | 2634mm |
| Hinge pin height | 2900mm |
| Dinging depth | 94mm |
| Dump distance | 920mm |
| Overall dimension (L*W*H) | 4300x1160x2150mm |
| Min. turning radius over shovel | 2691mm |
| Min. turning radius over tyres | 2257mm |
| Track base | 872mm |
| Dumping angle | 45° |
| Function of leveling automatic | Yes |
| Engine | |
| Brand | |
| Model | KUBATA D1105-EF02 |
| Rated power | 18.2KW |
| Transmission system | |
| Type | Hydrostatic |
| System pump type | Variable displacement piston |
| Drive type | Independent wheel motors |
| Classic angle oscillation | 7.5 each way |
| Max. speed | 20km/h |
| Loader hydraulic | |
| Pump type | Gear |
| Pump maximum flow | 42L/min |
| Pump maximum pressure | 200bar |
| Electric output | |
| System Voltage | 12V |
| Alternator output | 65Ah |
| Battery capacity | 60Ah |
| Tyre model | 10.0/75-15.3 |
| Filling capacity | |
| Hydraulic and transmission system | 40L |
| Fuel tank | 45L |
| Engine oil sump | 7.1L |
Applications of Small Wheel Loader :
Small electric loaders are widely used in construction projects suchas roads, railways, buildings, hydropower, ports, mines, etc, andare also agricultural machinery used in small spaces such as riceplants, farms, and pastures.

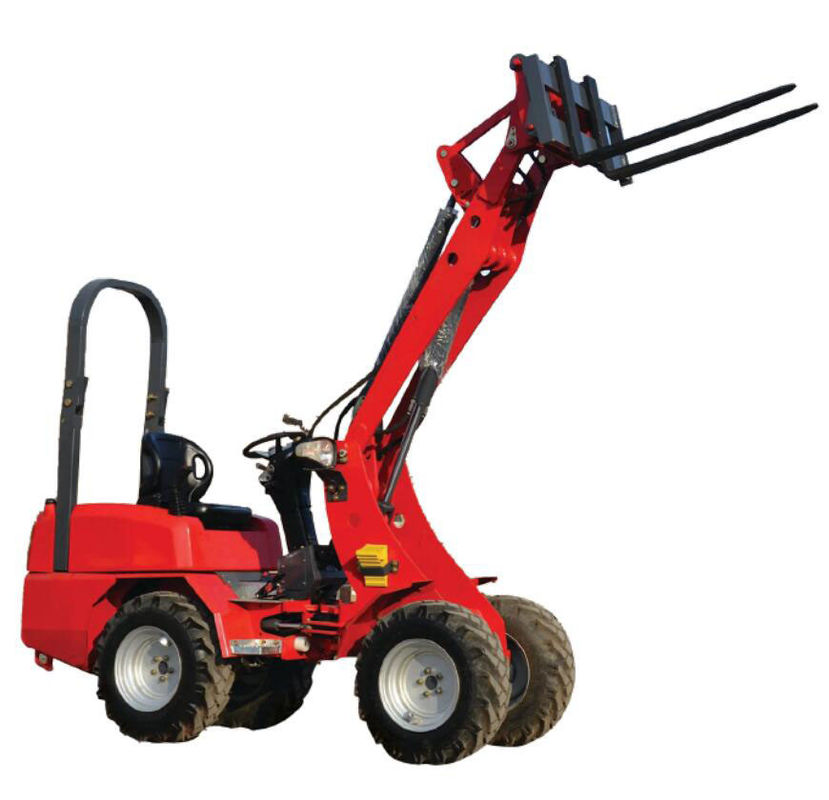

Images of Small Wheel Loader :
