Hydraulic Polyurethane Spray Foam Machine 230v 3 Phase CNMC-400
  • Hydraulic Polyurethane Spray Foam Machine 230v 3 Phase  CNMC-400

Hydraulic Polyurethane Spray Foam Machine 230v 3 Phase CNMC-400

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number CNMC-E8P
Product Details
Product Name:
CNMC-E8P Polyurethane Spraying Machine
Heating Power:
3kw Each Side
Max Pressure:
17MPa
Air Source:
:0.5-0.8MPa≥0.25m³
Power Source:
230v 3 Phase ,400v 3 Phase ,50/60HZ
Warranty:
1 Year
High Light:

Polyurethane Spray Foam Machine 230v

,

Polyurethane Spray Foam Machine 3 phase

,

hydraulic polyurea spray machine 230v

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
40 set per month
Product Description

Pneumatic CNMC-400 polyurethane spraying machine 70KG



Description of CNMC-400 polyurethane spraying machine:

Primary Heating System

The primary heating system consists of two separate hydraulically and electrically independent block heaters. Each heater incorporates 2 each 3000W heating elements that supply a total power of 1000W with the necessary control and safety features for the accurate and reliable performance of the system. The special design of the heaters allows for a DT of 50ºC and enables it to reach application temperatures of 90ºC in normal environmental temperature conditions.

Hose Heating System

The hose heating system is designed with 4000W isolation transformer that allows the heating of up to 120m. The system incorporates an innovative concept of heated hose in which the copper resistance element is homogenously spread around de hose. This allows accurate and uniform control of the application temperature of the products and avoids the heat concentrations that are produced in traditionally manufactured hoses.

Control Panel

The control panel consists of a touch screen that incorporates specially designed software to facilitate the selection and control of all working parameters in quick and easy manner. A sophisticated alarm system warns the operation of any error in the process to ensure the right application of the products. As an additional feature, a phase connection alarm is incorporated into the design to avoid costly repairs from errors or mistakes when plugging the proportioner into the electrical supply.

Monobloc Proportioning Pumps

Pumps with Anti-Leak System (International Patent pending). A double acting hydraulic cylinder drives two directly opposed chemical proportioning pumps. This design eliminates asymmetrical loads and assures prolonged life of the pump packing seals as well as assures a constant stabilised pressure in order to achieve perfect mixing of the chemical components. Several pump sizes are available to obtain different volumetric ratios.

Features of CNMC-400 polyurethane spraying machine:



Product name

Hydraulic CNMC-400 polyurethane spraying machine 17MPa
Power source 230v 3 phase ,400v 3 phase ,50/60HZ
Heating power 3kw each side
Whole power 10KW
Driven mode Hydraulic
Air source 0.5-0.8MPa≥0.25m³
Chemical output 2-24kg/min
Maximum output pressure 17MPa
Max hose support 120 meters
Machine size 870*700*1150mm





Technical parameters of CNMC-400polyurethane spraying machine:

The new CNMC-400 hydraulically driven proportioning unit has been designed and manufactured to fulfil the most demanding requirements of industrial foam in place applications of two component systems polyurethane spray .Its particular configuration facilitates easy access to all its components, simplifies the control functions and significantly reduces maintenance time.

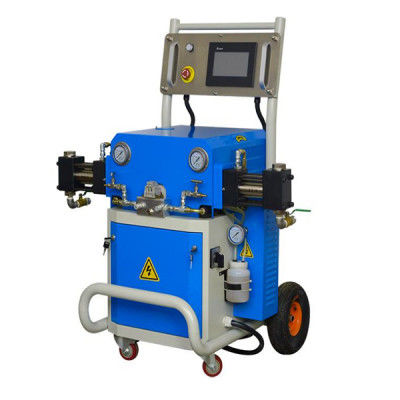

Images of CNMC-400 polyurethane spraying machine:



Hydraulic Polyurethane Spray Foam Machine 230v 3 Phase  CNMC-400 0
