2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun
  • 2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun
  • 2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun
  • 2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun
  • 2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun

2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun

Place of Origin China
Brand Name HIGHTOP
Certification CE,EPA,ISO,TUV
Model Number HT2200
Product Details
Product Name:
Street Sweeping Machine
Dimension(L*W*H:
2400*2050*1950mm
Weight (KG):
1300kg
Working Time:
6-8h
Power Supply:
48V
Warranty:
1 Year
High Light:

2200mm Road Brush Sweeper Cleaning Machine

,

2200mm Brush street broom machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

HT2200 Street Sweeping Machine With High Pressure Water Gun



Description of Street Sweeping Machine

1.Solid rubber tyre use for a long time.

2.The car fan Improve interior air circulation Summer is cool to relieve the heat.



Features of Street Sweeping Machine

1.Operation panel.Rudder steering wheel,easy and flexible operation

2.The foot material start Agile operation and easy driving



Technical parameters of Street Sweeping Machine



Parameter 2200 model
Shell material: sheet metal spray
Steering method: steering wheel
Braking method: hydraulic double disc brake
sweeping width: 2200mm
main brush width: 800mm
side brush diameter: 500mm
power supply: 48v
working efficiency: 18500㎡/h
operating hours: 6-8h
trash bin capacity: 220L
water tank capacity: 200L
walking motor: 1800w
main brush motor: 1000w
fan: 500w*2
side brush motor: 100w*4
Vibrating dust motor: 100W*2
battery capacity: 48v150Ah
Control method: automatic one-key start
Air filter: industrial dust filter
Gradeability: 35%
Tire: 400*80 solid tire
walking speed: 12-16km/h
weight: 1300kg
product size: 2400*2050*1950mm
high pressure pump power: 1.5KW
working flow: 8L/min
working pressure: 140Bar
pressure tube: 15meter, high quality import tube
water head: 15meter





Adhibitions of Street Sweeping Machine



Widely used in supermarkets, workshops, pedestrian streets, hotel halls, waiting halls, auditoriums, subways and other large-area tiles, marble, cement floor cleaning, drying integration.

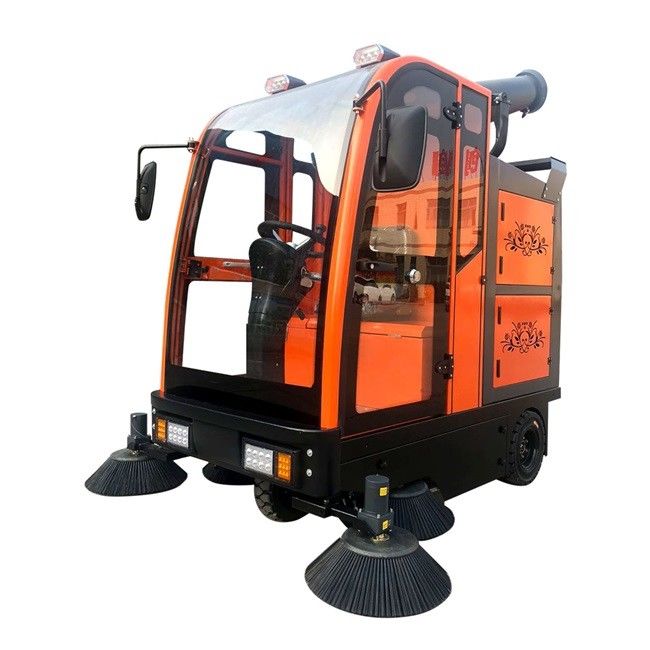

Images of Street Sweeping Machine



2200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun 02200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun 12200mm Road Brush Sweeper Cleaning Machine With High Pressure Water Gun 2
