Mini Skid Steer Loader
>
|
| Place of Origin | Shandong China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA， |
| Model Number | HTHY800-Y |
Product overview
① The series has compact design, small host width and good passability. Use variable amplitude working arm. Ensures a strong load carrying capacity in a smaller width.
② The width of the main machine is the smallest in all the sliding machine products. To meet special operational requirements.
③ The product uses imported European and American hydraulic parts. Sensitive control, rapid response, is the best choice for small space operations.
| Operating load (kg) | 300 |
| Maximum driving speed: (high speed) | 8 |
| Minimum travel speed: (low speed) | 4 |
| Tire(track) model | 18*8.5-8 |
| Engine brand: | Briggs&Stratton |
| Rated power (HP) | 13.5HP |
| Fuel tank capacity (L) | 20 |
| Machine net weight: (kg) | 800 |
| Working weight: | 1200KG |
| Bucket capacity (m3) | 0.15 |
| Overall operating height (mm) | 2750 |
| Height to bucket hinge pin (mm) | 2200 |
| Overall length ithout bucket(mm) | 2180 |
| overall length with bucket(mm) | 2680 |
| Dumping angle at maximum height(°) | 38 |
| Dumping height(mm) | 1770 |
| Dumping reach(mm) | 200 |
| Wheelbase(mm) | 950 |
| Ground clearance(mm) | 140 |
| Big arm width: (mm) | 340 |
| Width (mm) | 960 |
| Bucket width (mm) | 1000 |
| Minimum travel speed (low speed) | 4 |
| Working weight | 1200KG |
| Height to bucket hinge pin (mm) | 2200 |
| Dumping angle at maximum height(°) | 38 |
| Overall operating height (mm) | 2750 |
| Engine brand | Briggs&Stratton |
| Bucket capacity (m3) | 0.15 |
| Operating load (kg) | 300 |
| Fuel tank capacity (L) | 20 |
| Machine net weight (kg) | 800 |

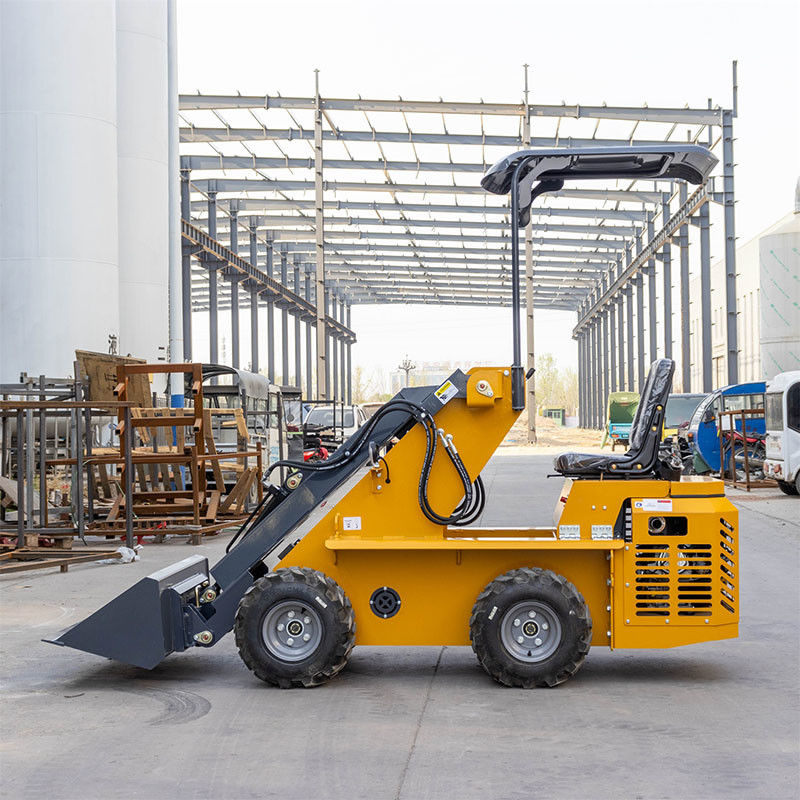

The HIGHTOP Mini Skid Steer Loader is perfect for small-scale construction projects, landscaping, agriculture, and even DIY home projects. Its compact size and maneuverability make it ideal for working in tight spaces and hard-to-reach areas. It can easily navigate through doorways, narrow hallways, and between trees, making it an efficient and effective tool for any job.
The Mini Skid Steer Loader can be used for various applications such as digging, lifting, carrying, and leveling. Its 0.15m3 bucket capacity allows for easy loading and transporting of materials such as sand, gravel, and dirt. With its 18*8.5-8 tire (track) model, it can easily move on any terrain, whether it be rough or smooth.
The HIGHTOP Mini Skid Steer Loader has a minimum travel speed of 4 (low speed), making it easy to control and maneuver. It also has a fuel tank capacity of 20L, allowing you to work for longer periods without the need for frequent refueling. Its engine is powered by the reliable Briggs&Stratton brand, ensuring its durability and efficiency.
For those interested in purchasing the HIGHTOP Mini Skid Steer Loader, the minimum order quantity is 1 set, and the price is negotiable. The product will be packaged in a wooden case for safe transportation, and the delivery time is within 5-14 work days. Payment terms include Western Union, MoneyGram, T/T, D/A, D/P, and L/C, providing you with various options for payment. Our supply ability is 100 sets per month, ensuring that we can cater to your needs in a timely manner.
Overall, the HIGHTOP Mini Skid Steer Loader is a reliable and powerful tool that can assist you in various occasions and scenarios. Whether you're a contractor, landscaper, farmer, or DIY enthusiast, this Skid Steer Loader can help you achieve your goals efficiently and effectively.
Our Mini Skid Steer Loader has a net weight of 800kg and is available in crawler, mini, and wheel options. The low-speed travel speed is 4km/h, and it has a maximum operating load of 300kg and a working weight of 1200kg. The overall operating height is 2750mm, allowing for efficient operation in a variety of spaces.
Customization services are available to ensure that your Mini Skid Steer Loader meets your unique needs. Contact us today to learn more about how we can help you get the most out of your HIGHTOP Mini Skid Steer Loader.
The Mini Skid Steer Loader is designed to provide a reliable and efficient solution for a wide range of applications. Our product technical support and services include:
Our team of experienced technicians and engineers are dedicated to ensuring your Mini Skid Steer Loader operates at peak performance and efficiency. Contact us for more information.
