Import Brand Engine 1800kg Mini Hydraulic Excavator With Retractable Track
HT18-3 Hightop Mini Excavator Description:
tailless design, boom side swing, telescopic track chassis, high and low speed.
HT18-3 Hightop Mini Excavator Features:
1. The excavator is equipped with the famous Japanese brand engine, which has low noise and stable performance. There are after-sales service points around the world for easy maintenance.
2. This machine has a telescopic track chassis function,the telescopic range is 95cm-130cm,which can meet the different needs of customers and adapt to a variety of operating environments.
Mini Hydraulic Excavator Technical parameters:
| Model | HT18-3 |
| Overal legnth A | 4325/1655mm |
| Overall width | 1100mm |
| Upper width | 990mm |
| Overall height | 2272mm |
| Standard track shoewidth | 180mm |
| Track Gauge | 920mm |
| Min.ground clearance | 119mm |
| Tail turning radius | 790mm |
| Track ground length | 1050mm |
| Track length | 1545mm |
| Max digging height | 2580mm |
| Max.unloading height | 1637mm |
| Max. digging depth | 2060mm |
| Max. digging distance | 3160mm |
| Min.turning radius | 1711mm |
| Max. height at minimumturning radius | 2048mm |
| Boom swing Angle(left) | 75° |
| Boom swing Angle(right) | 45° |
| Working weight | 1800KG |
| Bucket capacity | 0.03m³ |
| Power | 10.2KW/14KW |
| Swing speed | 12RMP |
| Gradeability | 30 |
| Engine | KUBOTA D722:KOOP 292 |
| Main valve | BEIFANG |
Applications:
HT18-3 Mini Hydraulic Excavator is flexible and are suitable for house maintenance, pipeline openings and other infrastructure construction excavation work.

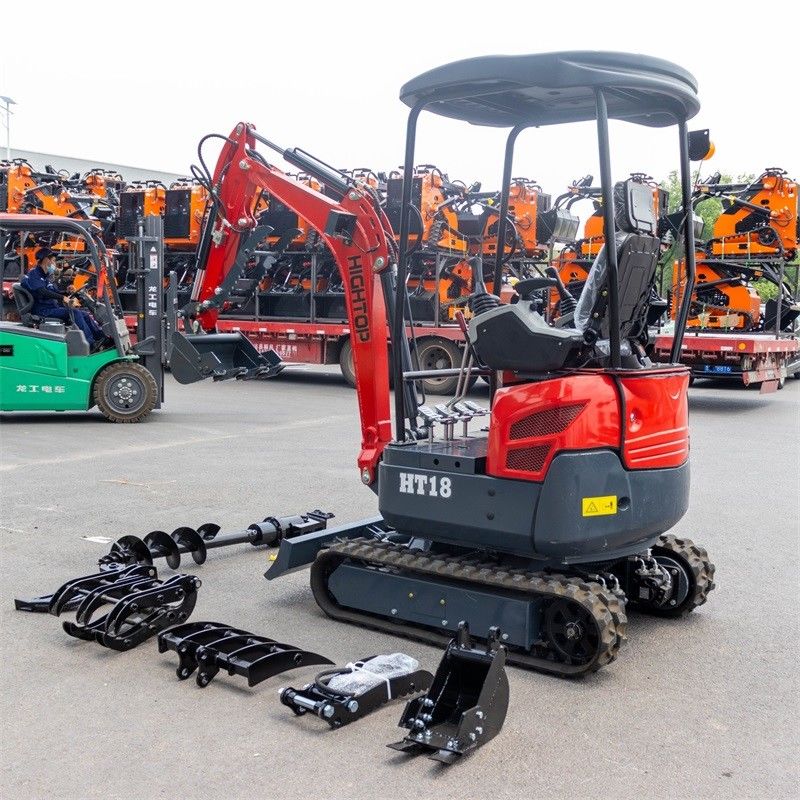

HT18-3 Mini Hydraulic Excavator Show Details:
