| Place of Origin | Shandong China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA ，EURO5 |
| Model Number | HT35 |

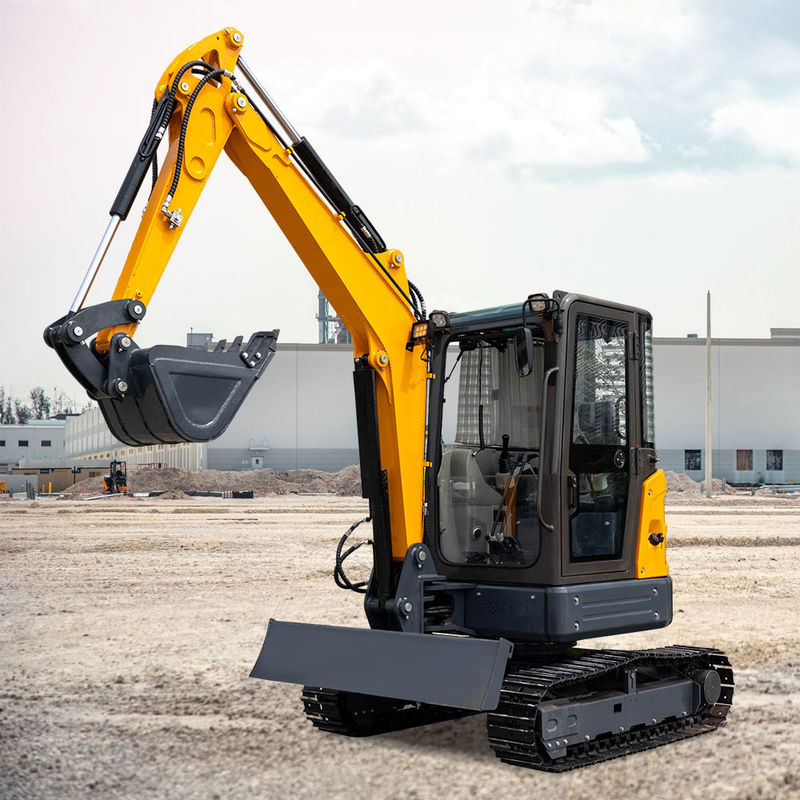

One of the most notable features of the Hightop Mini Excavator is its compact size. With a tail turning radius of just 885mm, this mini excavator is ideal for working in tight spaces where larger machines simply can't fit. Despite its small size, the Hightop Mini Excavator is a true workhorse, capable of tackling a variety of excavation tasks with ease.
The Hightop Mini Excavator's track ground length (J) measures 1645mm, while its track length (K) is 2150mm. These dimensions give the machine excellent stability on uneven terrain, ensuring that it can operate safely and efficiently in a variety of environments.
With a total height of 2580mm (shed roof/cab roof), the Hightop Mini Excavator provides excellent visibility for the operator. This makes it easier to work with precision, even in challenging conditions. In addition, the machine's minimum ground clearance (H) of 319mm ensures that it can tackle rough terrain with ease.
Overall, the Hightop Mini Excavator is an excellent choice for anyone in need of a versatile and reliable mini crawler excavator. Whether you're working on a construction site, landscaping project, or any other type of excavation task, this machine is sure to get the job done quickly and efficiently.
| Machine size | |
| Total length/transportation length(A): | 5029mm |
| Total width(B) | 1720mm |
| Upper width(D): | 1554mm |
| Total height (shed roof/cab roof)(C): | 2580mm |
| Standard track shoe width(F): | 300mm |
| Minimum ground clearance(H): | 319mm |
| Tail turnina radius(l): | 885mm |
| Track ground length(J): | 1645mm |
| Track length(K): | 2150mm |
| Bulldozer Ground height(R) | 393mm |
| Bulldozer digging depth(T): | 461mm |
| Operating range | |
| Maximum digging height (a): | 4938mm |
| Maximum unloading height(b) | 3376mm |
| Maximum digging depth(c): | 3106mm |
| Maximum digging distance(d): | 5175mm |
| Minimum radius of turn(e): | 2634mm |
| Max. Height @ Min. Rotation Radius(f) | 3716mm |
| Performance parameter | |
| Operating weight (kG) | 3500kg |
| SuCKetcaoaCw | 0.12m³ |
| Rated power : | 18.5KW/2200rpm |
| Turning speed : | 9r/min |
| Climbing ability : | 58% |
| Bucket digging force : | 30.4KN |
| Bucket rod digging force : | 18.2KN |
| Main parts | |
| Engine :Kubota D1703 | Valve pressure:24MP |
| Flow sharing main valve :HVSE-09-09-P270-BE212 | Pump displacement:40cc |
| Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1 | Travel speed :4.2/2.4km/h |
| Travel motor :Variable plunger motor | Enqine oil capacity :5.1L |
| Fuel tank :Capacity 50L | Valve svstem flow :79.2L/min |
| Cooling system :Capacity 5.05L | Pump Max.speed :3250r/min |
| Hydraulic oil tank :Capacity 55L | |
Our minimum order quantity is only 1 set, and our prices are negotiable to fit your budget. Our packaging details include a sturdy wooden case for safe transport, and our delivery time is only 7-14 work days. We accept a variety of payment terms, including Western Union, MoneyGram, T/T, D/A, D/P, and L/C.
We have a supply ability of 100 sets per month, so you can trust that we can meet your needs. Our excavator also comes with a variety of accessories to customize your experience, including:
Choose the Hightop mini excavator for a reliable and customizable excavation experience. Contact us today to learn more.
The Hightop Mini Excavator comes with a comprehensive technical support and services package, including:
Our team of experienced technicians is dedicated to ensuring that your Hightop Mini Excavator operates at peak performance and efficiency, minimizing downtime and maximizing productivity.
Product Packaging:
The Hightop Mini Excavator will be packaged securely to ensure safe transportation during shipping. It will be carefully placed in a wooden crate and wrapped with protective materials to prevent any damages during transit. All necessary accessories and attachments will also be included in the package.
Shipping:
Shipping of the Hightop Mini Excavator will be arranged through a reliable and experienced freight company. The shipping cost will be calculated based on the destination and delivery time required. The customer will be provided with a tracking number to allow for easy tracking of the shipment. Delivery times may vary depending on the location of the customer.
