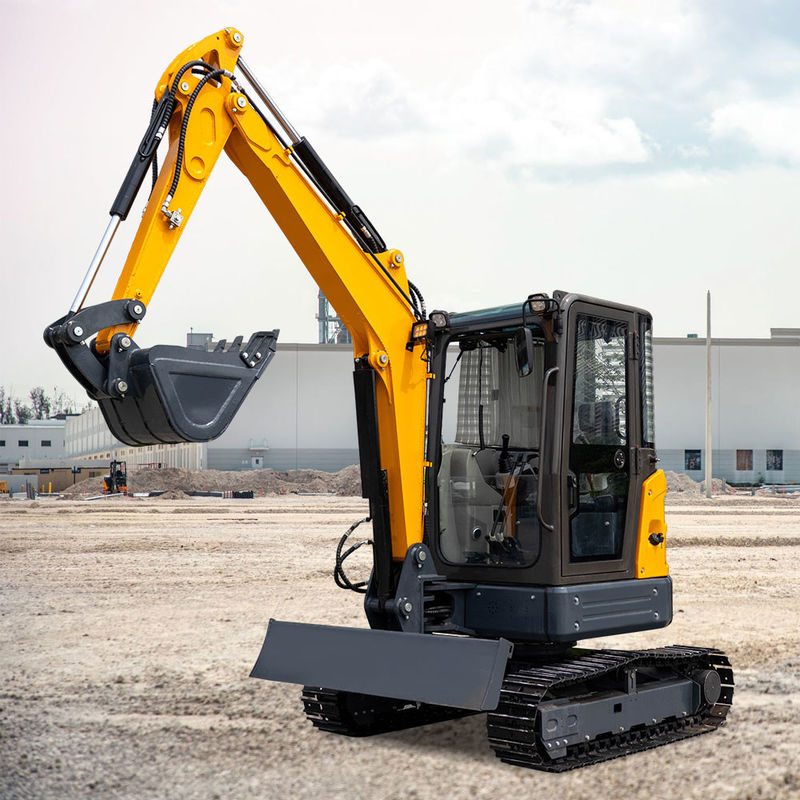

Hightop Mini Excavator
>
|
|
| Place of Origin | Shandong China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA ，EURO5 |
| Model Number | HT35 |
| Machine Dimensions | |
|---|---|
| Total length/transportation length (A) | 5029mm |
| Total width (B) | 1720mm |
| Upper width (D) | 1554mm |
| Total height (shed roof/cab roof) (C) | 2580mm |
| Standard track shoe width (F) | 300mm |
| Minimum ground clearance (H) | 319mm |
| Tail turning radius (I) | 885mm |
| Track ground length (J) | 1645mm |
| Track length (K) | 2150mm |
| Bulldozer Ground height (R) | 393mm |
| Bulldozer digging depth (T) | 461mm |
| Operating Range | |
|---|---|
| Maximum digging height (a) | 4938mm |
| Maximum unloading height (b) | 3376mm |
| Maximum digging depth (c) | 3106mm |
| Maximum digging distance (d) | 5175mm |
| Minimum radius of turn (e) | 2634mm |
| Max. Height @ Min. Rotation Radius (f) | 3716mm |
| Performance Parameters | |
|---|---|
| Operating weight | 3500kg |
| Bucket capacity | 0.12m³ |
| Rated power | 18.5KW/2200rpm |
| Turning speed | 9r/min |
| Climbing ability | 58% |
| Bucket digging force | 30.4KN |
| Bucket rod digging force | 18.2KN |
| Main Components | |
|---|---|
| Engine | Kubota D1703 | Valve pressure: 24MP |
| Flow sharing main valve | HVSE-09-09-P270-BE212 | Pump displacement: 40cc |
| Swash plate axial plunger variable pump | HP5V45/AV10RB2S2MGA-L1/1-HT1 | Travel speed: 4.2/2.4km/h |
| Travel motor | Variable plunger motor | Engine oil capacity: 5.1L |
| Fuel tank | Capacity 50L | Valve system flow: 79.2L/min |
| Cooling system | Capacity 5.05L | Pump Max. speed: 3250r/min |
| Hydraulic oil tank | Capacity 55L |
