Hightop Mini Excavator
>

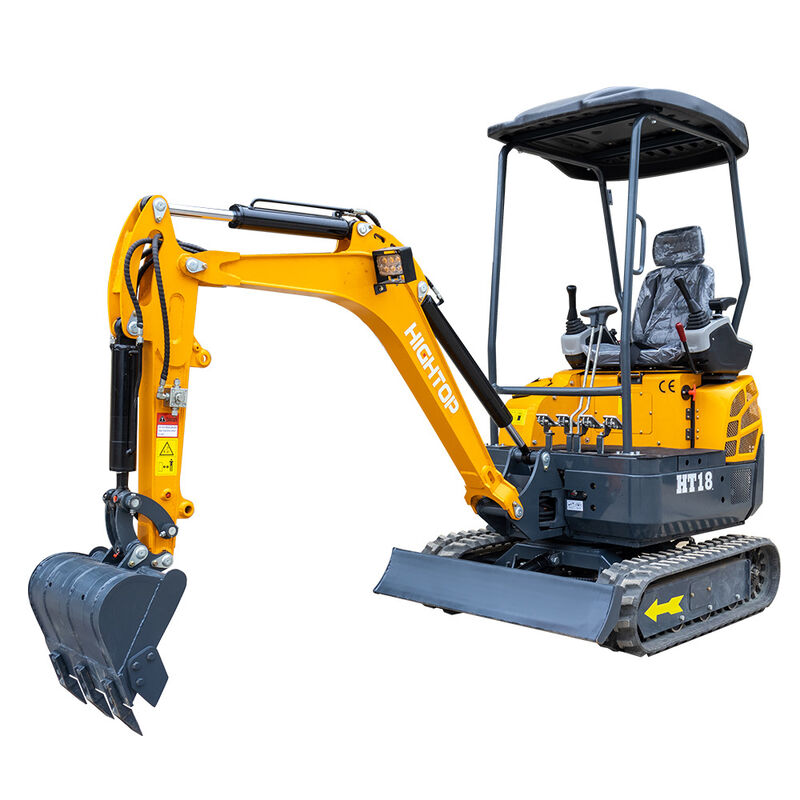

The HT18L Mini Excavator combines compact design with powerful performance, making it ideal for confined spaces and demanding construction applications.
Equipped with the LaiDong 385 brand engine, delivering robust and consistent power output with exceptional durability. Designed for high-intensity repetitive tasks, it maintains performance even in the most demanding conditions.
With 2.5m digging depth and 2.8m digging height, it effortlessly handles complex tasks like deep pit excavation and elevated work, covering more operational scenarios.
Choose from swing, telescopic, and other attachment configurations. Supports quick attachment changes for multifunctional tasks like digging, grading, and crushing—expanding your operational boundaries.
With a body width of just 1120mm and a tail swing radius as small as 890mm, it effortlessly navigates doorways and alleys, operating flexibly indoors, outdoors, and on narrow construction sites.
The heavy-duty undercarriage design, paired with 200mm-wide tracks and a 1050mm ground contact length, delivers low ground pressure for steady, reliable operation on uneven surfaces.
The responsive hydraulic system enables fluid, coordinated compound movements. Operation is intuitive and lag-free, reducing fatigue during extended shifts and allowing quick mastery even for new operators.
Critical parts are thoughtfully positioned for effortless daily checks and upkeep. This streamlined maintenance process saves time, effectively increasing equipment availability and extending its service life.
| Transport Length | 2545mm | Maximum Digging Height | 2785mm |
| Total Width | 1120mm | Maximum Dumping Height | 1860mm |
| Upper Body Width | 990mm | Maximum Digging Depth | 2050mm |
| Total Height (Top of Cab) | 2280mm | Maximum Digging Distance | 3130mm |
| Standard Track Shoe Width | 200mm | Minimum Swing Radius | 1655mm |
| Track Gauge | 920mm | Maximum Height at Minimum Swing Radius | 2205mm |
| Dozer Ground Clearance | 105mm | Operating Weight | 1310kg |
| Dozer Digging Depth | 270mm | Bucket Capacity | 0.02m³ |
| Tail Swing Radius | 890mm | Working Device Type | Backhoe |
| Track Ground Contact Length | 1050mm | Gradeability | 30° |
| Total Track Length | 1350mm | Engine | Laidong385 |
| Main Valve | Tengfei |
