HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
  • HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments
HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments

HT-10CZ 1000kg Weight Mini Excavator with 360° Rotation and Optional Attachments

Place of Origin China
Brand Name Hightop
Certification CE，EPA，ISO，TUV
Model Number HT-10CZ
Product Details
Product Name:
HT-10CZ Mini Excavator
Model:
HT-10CZ
Weight:
1000kg
Digging Bucket Capacity:
0.025cbm/120kg
Bucket Width:
380mm
Engine:
KOOP(192F)
Optional Engine:
BRIGGS & STRATTON YANMAR
Bore Stroke:
Single Cylinder, Fan Cool
Rated Power:
7kw/3000r/min
Travel Speed:
1.5km/h
Highlight:

360 Degree Rotation Mini Excavator

,

1000kg Compact Excavator

,

Hydraulic System Crawler Mini Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
CE，EPA，ISO，TUV
Packaging Details
Wooden case
Delivery Time
5-14 work days
Payment Terms
L/C,T/T,D/P,D/A,Western Union
Supply Ability
100 set per month
Product Description
HT-10CZ Mini Excavator
HT10CZ hydraulic crawler mini excavator with BRIGGS & STRATTON engine, super power, energy saving. Optional boom deflection, telescopic track, closed cab. Color optional yellow, red, blue, white, black, etc., support customization, with EPA, Euro 5, CE, ISO certification.
Key Features
  • The back cover can be opened, allowing clear visibility of internal engine and accessories for convenient refueling and maintenance
  • 360-degree rotation capability without tail swing
  • Equipped with Bailiton engine meeting U.S. EPA environmental requirements, ensuring stable operation in harsh environments
  • Bucket can be replaced with various attachments including sieve hopper, narrow bucket with teeth, tilting bucket, flat bucket, rake, hydraulic thumb clamps, looseners, and crushing hammer
  • Red flexible coupling for effective shock absorption
  • High-precision air and oil filtration system with 1μm filtration precision and over 99.9% filtration rate
  • Oil pressure alarm system automatically alerts when oil is low to protect the machine
  • Advanced heat dissipation system with built-in sealed exhaust fan to prevent overheating and extend service life
  • Traveling motor equipped with oil unloading pipe to prevent internal pressure buildup and improve motor lifespan
  • Stabilizing and balancing system with thickened four-legged roof structure for high stability and safety
Technical Specifications
Model HT10CZ
Weight 1000kg
Digging bucket capacity 0.025cbm/120kg
Bucket width 380mm
Engine KOOP(192F)
Optional Engine BRIGGS & STRATTON YANMAR
Bore stroke Single cylinder, fan cool
Rated power 7kw/3000r/min
Main pump G5-6
Displacement 6.8ml/r
Swing motor SANYANG (BMRS-250)
Traveling motor SANYANG (BMT-245)
Travel speed 1.5km/h
Main Dimensions
Overall dimension (LxWxH) 2775 x 930 x 2219 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Performance Specifications
Max. Digging depth 1750 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Product Images

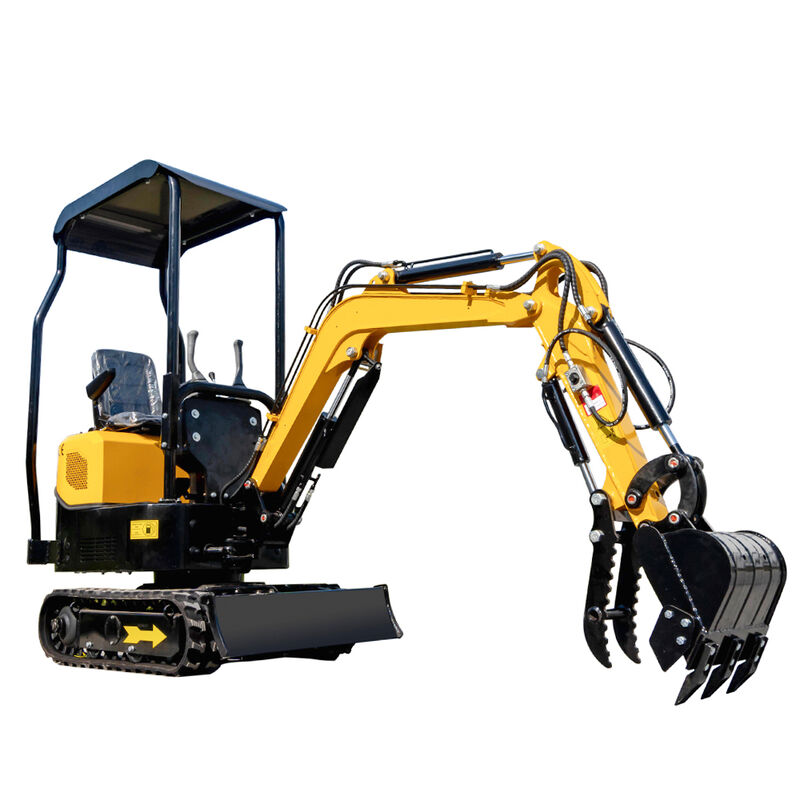

HT-10CZ Mini Excavator front view showing compact design and hydraulic components HT-10CZ Mini Excavator side view displaying track system and boom structure HT-10CZ Mini Excavator operational view demonstrating digging capability
