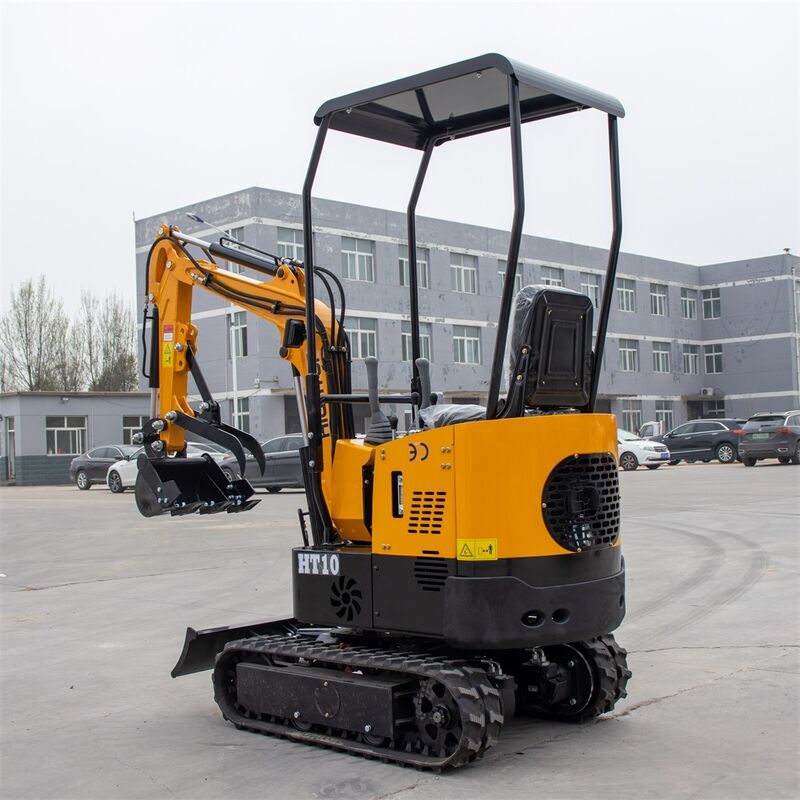

1Ton Capacity HT-10B Mini Excavator

Name: 1Ton Capacity HT-10B Mini Excavator
Brand: Shandong Hightop Group
SKU: HT-10B
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT-10B

Product Details

Model:

HT-10B Mini Excavator

Weight:

1000kg

Digging Bucket Capacity:

0.025m³ / 120kg

Bucket Width:

380mm

Standard Engine:

Koop Engine 192F

Highlight:

1Ton Capacity Mini Excavator

60° Boom Swing Compact Excavator

Adjustable Dozer Blade Mini Digger

Payment & Shipping Terms

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

100 set per month

Product Description

HT-10B 1Ton Mini Excavator

The HT-10B 1T Mini Excavator delivers exceptional performance and reliability through premium international components and advanced engineering design.

Key Advantages

Premium International Components: Features Japanese main hydraulic pump, Italian main valve, and Italian swing/traveling motors for superior performance
Global Engine Options: Equipped with Changchai 192F engine, with optional Koop Engine for European emissions compliance or Briggs & Stratton Engine for US emissions standards
German Hydraulic Systems: Utilizes Continental AG Germany hydraulic pipes to prevent leaks and ensure long-term reliability
Enhanced Stability: 100kg counterweight provides superior balance and operational stability
Advanced Surface Treatment: Structural components processed by Komatsu-supported manufacturers with shot blasting, pickling, phosphating, and professional painting for superior corrosion resistance
Easy Start System: Integrated pressure reducing valve ensures smooth and effortless machine startup
Adjustable Dozer Blade: Blade length adjustable from 84cm to 105cm with working height adjustment from -15cm to 15cm for versatile operation
Flexible Crawler System: Track width adjustable from 830mm to 1000mm for navigating narrow spaces
Articulated Boom: 60-degree left/right boom deflection provides exceptional job site flexibility and access

Technical Specifications

Parameter	Specification
Model	HT-10
Weight	1000kg
Digging Bucket Capacity	0.025m³ / 120kg
Bucket Width	380mm
Standard Engine	Koop Engine 192F
Optional Engines	Briggs & Stratton Engine, Yanmar Engine
Engine Configuration	Single cylinder, fan cooled
Rated Power	7kW / 3000r/min
Main Pump	G5-6
Displacement	6.8ml/r
Swing Motor	SANYANG (BMRS-250)
Traveling Motor	SANYANG (BMT-245)
Travel Speed	1.5km/h
Main Dimensions
Overall Dimensions (L×W×H)	2775 × 930 × 2219 mm
Wheelbase	910 mm
Total Length of Track	1230mm
Platform Ground Clearance	380mm
Platform Back Turning Radius	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
Operating Range
Maximum Digging Depth	1650 mm
Maximum Vertical Digging Depth	1375 mm
Maximum Digging Height	2610 mm
Maximum Dumping Height	1850 mm
Maximum Digging Radius on Ground	2850 mm
Minimum Rotation Radius	1330 mm
Maximum Upgrade Height of Bulldozer Blade	345 mm
Maximum Digging Depth of Bulldozer Blade	255 mm
