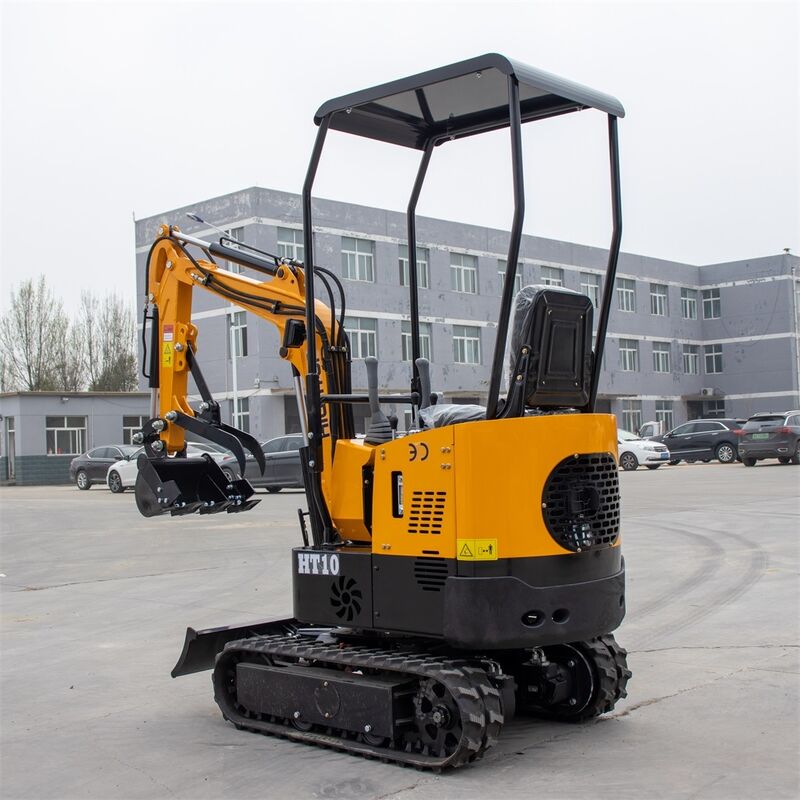

1Ton HT-10B Mini Excavator Koop Engine 192F and Adjustable Dozer Blade

Name: 1Ton HT-10B Mini Excavator Koop Engine 192F and Adjustable Dozer Blade
Brand: Shandong Hightop Group
SKU: HT-10B
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT-10B

Product Details

Model:

HT-10B Mini Excavator

Weight:

1000kg

Digging Bucket Capacity:

0.025m³ / 120kg

Bucket Width:

380mm

Standard Engine:

Koop Engine 192F

Highlight:

1Ton Capacity Mini Excavator

60° Boom Swing Compact Excavator

Adjustable Dozer Blade Mini Digger

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden packaging

Delivery Time

8-14 week days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

100 set per month

Product Description

1Ton HT-10B Mini Excavator

Product Advantages

Premium components from developed countries: Japan main hydraulic pump, Italy main valve, Italy swing motor and traveling motor
Domestic well-known brand Changchai 192F engine with strong power and stable operation, or optional Koop Engine for European emission standards, and US BRIGGS & STRATTON Engine for USA emission standards
Hydraulic pipes imported from Continental AG Germany Company for superior leak resistance
100 kg counterweight added to the rear for enhanced stability and power during operation
Structural parts processed by Japan Komatsu Engine supporting manufacturers with complete surface treatment including shot blasting, pickling, phosphating, and spraying for superior paint adhesion and durability
Pressure reducing valve device for easier machine startup
Adjustable dozer blade length from 84cm to 105cm with working height adjustment from -15cm to 15cm
Crawler track adjustable from minimum 830mm to maximum 1000mm for navigating narrow spaces
Boom deflection capability of 60 degrees left and right for enhanced job flexibility

Technical Specifications

Model	HT-10
Weight	1000kg
Digging bucket capacity	0.025cbm/120kg
Bucket width	380mm
Engine	Koop Engine 192F
Optional Engine	Briggs & Stratton Engine, Yanmar Engine
Bore stroke	Single cylinder, fan cool
Rated power	7kw/3000r/min
Main pump	G5-6
Displacement	6.8ml/r
Swing motor	SANYANG (BMRS-250)
Traveling motor	SANYANG (BMT-245)
Travel speed	1.5km/h

Main Dimensions

Overall dimension (LxWxH)	2775 x 930 x 2219 mm
Wheelbase	910 mm
Total length of track	1230mm
Platform ground clearance	380mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm

Operating Range

Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm
