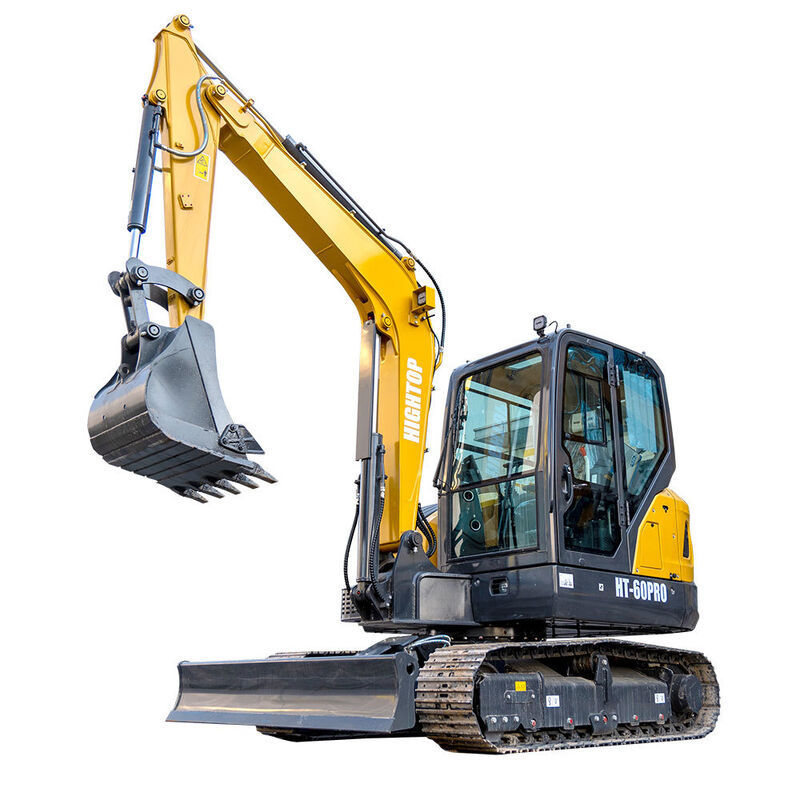

HT60Pro Hydraulic Excavator Hydraulic System and High Strength Structural Design

Name: HT60Pro Hydraulic Excavator Hydraulic System and High Strength Structural Design
Brand: Shandong Hightop Group
SKU: HT60Pro
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT60Pro

Product Details

Product Name:

HT60Pro Excavator

Model Number:

HT60Pro

Total Length:

6010mm

Total Width:

2000mm

Overall Height:

2650mm

Turntable Width:

1880mm

Track Length:

2535mm

Operating Weight (Kg):

6000

Bucket Capacity (m³):

0.24

Highlight:

36.2kW Engine Hydraulic Excavator

138.6 L/min Hydraulic Flow Mini Excavator

6100mm Excavation Radius HT60Pro Excavator

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Packaging Details

Wooden box packaging

Delivery Time

5-8 work days

Payment Terms

Western Union,T/T,D/P,D/A,L/C

Supply Ability

100 set per month

Product Description

HT60Pro Hydraulic Excavator

Product Overview

The HT60Pro Hydraulic Excavator combines powerful performance with advanced engineering for superior efficiency and reliability in demanding work environments.

Efficient Power & Energy Saving: Equipped with Yanmar 4TNV94L National IV engine delivering 36.2kW/2200rpm rated power. Features multiple fuel filtration systems for stable operation and reduced emissions. Automatic engine speed reduction technology minimizes fuel consumption.
Advanced Hydraulic System: Load-sensitive hydraulic system with 138.6 L/min maximum flow rate. Provides fast response in single-action operations and excellent composite operation capability. Parking brake design ensures smooth operation and precise control.
High-Strength Structural Design: Total operating weight of 5670kg with 3000mm boom and 1600mm arm. Optimized upper and lower framework withstands strong impact and pressure. X-shaped central frame enhances overall stability.
Wide Operation Range: Maximum excavation radius of 6100mm, maximum excavation depth of 3730mm, and maximum unloading height of 4040mm. Compact tail turning radius of 1655mm for operation in confined spaces.
Comfortable Operation: Well-designed cabin with wide visibility and suspended seats. LED headlights provide excellent nighttime illumination for enhanced safety.
Reliable Performance: Rotation speed of 9.5r/min, walking speed of 2.3-3.8km/h, and strong climbing ability. VHD sleeves in key areas extend lubrication cycles and ensure long-term stability.

Technical Specifications

Dimensions (Unit: mm)

Total Length	6010
Total Width	2000
Overall Height	2650
Turntable Width	1880
Track Length	2535
Chassis Overall Width	2000
Standard Track Shoe Width	400
Track Wheelbase	1990
Gauge	1600
Counterweight Ground Clearance	700
Minimum Ground Clearance	385
Minimum Tail Turning Radius	1700
Track Height	606

Hydraulic System

Main Pump	Plunger Pump
Rated Flow Rate of Main Pump (L/min)	158.4
Main Safety Valve Pressure (MPa)	24.5
Walking System Pressure (MPa)	24
Rotary System Pressure (MPa)	24
Pilot System Pressure (MPa)	3.5

Scope of Work (Unit: mm)

Maximum Excavation Height	5630
Maximum Unloading Height	3945
Maximum Excavation Depth	3830
Maximum Vertical Excavation Depth	2680
Maximum Excavation Radius	6130
Minimum Turning Radius	2460

Working Device (Standard Configuration)

Arm Length (mm)	3000
Standard Stick Length (mm)	1600
Bucket Capacity (m³)	0.24

Oil Capacity

Fuel Tank Capacity (L)	130
Hydraulic Oil Tank Capacity (L)	85
Engine Oil Capacity (L)	9

General Specifications

Model	HT60Pro
Operating Weight (Kg)	6000
Bucket Capacity (m³)	0.24

Engine Specifications

Model	V2607
Direct Injection	√
4-Stroke	√
Water Cooling	√
Number of Cylinders	4
Rated Output Power/Speed (kW/rpm)	35.0/2200
Maximum Torque/Speed (N.m)	171.5/800-1800
Displacement (L)	2.615

Main Performance

Driving Speed (High/Low) (km/h)	4.2/2.4
Rotation Speed (r/min)	11
Climbing Ability (°)	≤35
Grounding Specific Pressure (kPa)	33.4
Bucket Excavation Force (kN)	48.3
Excavating Force of Boom (kN)	32.5
Maximum Traction Force (kN)	50.5
