HT06 600kg Operating Weight Mini Excavator with a Compact Length of 1889mm

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT-06

Product Details

Product Name:

HT06 Mini Excavator

Overall Length A:

1,889 Mm

Max Digging Height A:

2,017 Mm

Overall Width B:

700 Mm

Max. Height At Minimum Turning Radius B:

1,589 Mm

Upper Width D:

700 Mm

Max. Digging Depth C:

1,118 Mm

Gradeability:

30°

Highlight:

600kg Operating Weight Mini Excavator

2017mm Max Digging Height Compact Excavator

650mm Tail Turning Radius Mini Digger

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden box packaging

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

100 set per month

Product Description

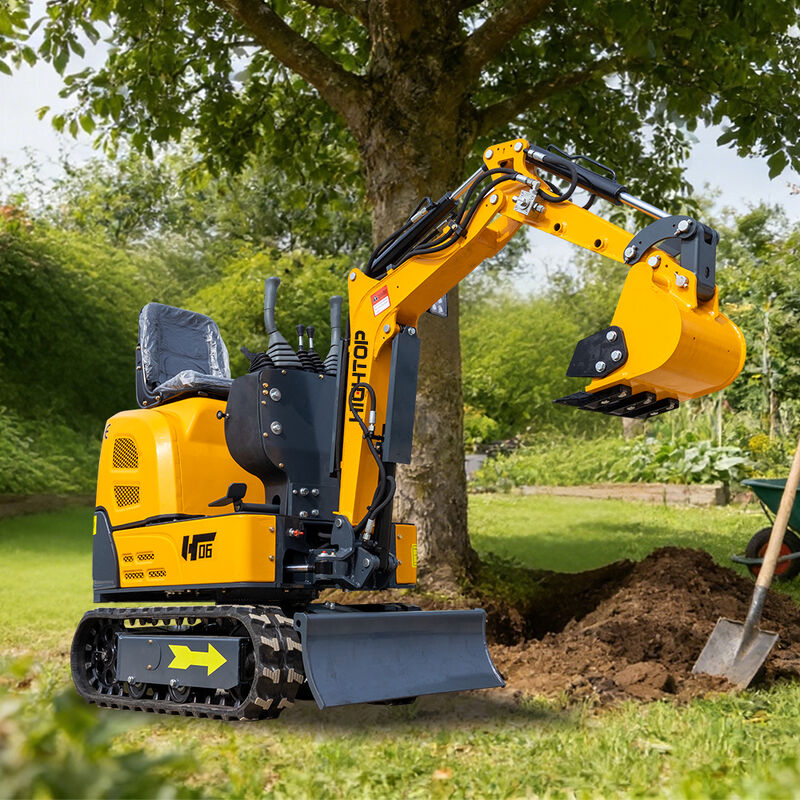

HT06 Mini Excavator

Compact and powerful, a true all-rounder

HT06 | 600kg mini excavator: small in size, big on power

Extremely Compact & Maneuverable

Overall transport dimensions: length 1,889 mm, width 700 mm, height 2,086 mm
Easily accesses confined spaces such as indoor areas, gardens and basements
Rear turning radius of just 650 mm for collision-free precision operations

Versatile Performance

Maximum digging height: 2,017 mm, maximum digging depth: 1,118 mm, maximum digging reach: 2,025 mm
Maximum dumping height: 1,284 mm; minimum swing radius: 1,239 mm
30° climbing ability for complex terrain including construction site ramps and garden steps

Lightweight & Portable

Total operating weight of just 600 kg - transportable with standard pick-up truck
Significantly reduces transport costs and site relocation difficulty
0.01 m³ bucket capacity for precise material control and waste prevention

Robust & Reliable Construction

Equipped with Runtong R300 or Briggs & Stratton engine for stable power and excellent fuel economy
Tengfei main valve ensures precise hydraulic control with rapid response and high efficiency
High-quality pins with excellent wear resistance and durability reduce maintenance costs

Thoughtful Operational Details

Dozer blade clearance: 92 mm; digging depth: 93 mm for rapid site levelling
Standard track plate width: 150 mm with low ground pressure to prevent surface damage
Track contact length: 782 mm; track length: 1,126 mm for stable travel with reduced tipping risk

Flexible Configuration Options

Rear-view mirror options for improved visibility and safety
Removable canopy for indoor precision work or outdoor stability
Rain cover option for enhanced comfort during operation
Balances practicality with cost control to meet individual user needs

Technical Specifications

Overall length A	1,889 mm	Max digging height a	2,017 mm
Overall width B	700 mm	Max. height at minimum turning radius b	1,589 mm
Upper width D	700 mm	Max. digging depth c	1,118 mm
Overall height C	2,086 mm	Max. digging distance d	2,025 mm
Standard track shoe width F	150 mm	Min. turning radius e	1,239 mm
Track Gauge E	550 mm	Max. unloading height f	1,284 mm
Shovel height above ground G	92 mm	Working weight	600 kg
Depth of excavation of bulldozer H	93 mm	Bucket capacity	0.01 m³
Tail turning radius I	650 mm	Working device form	Backhoe
Track ground length J	782 mm	Gradeability	30°
Track length K	1,126 mm	Main valve	Tengfei
