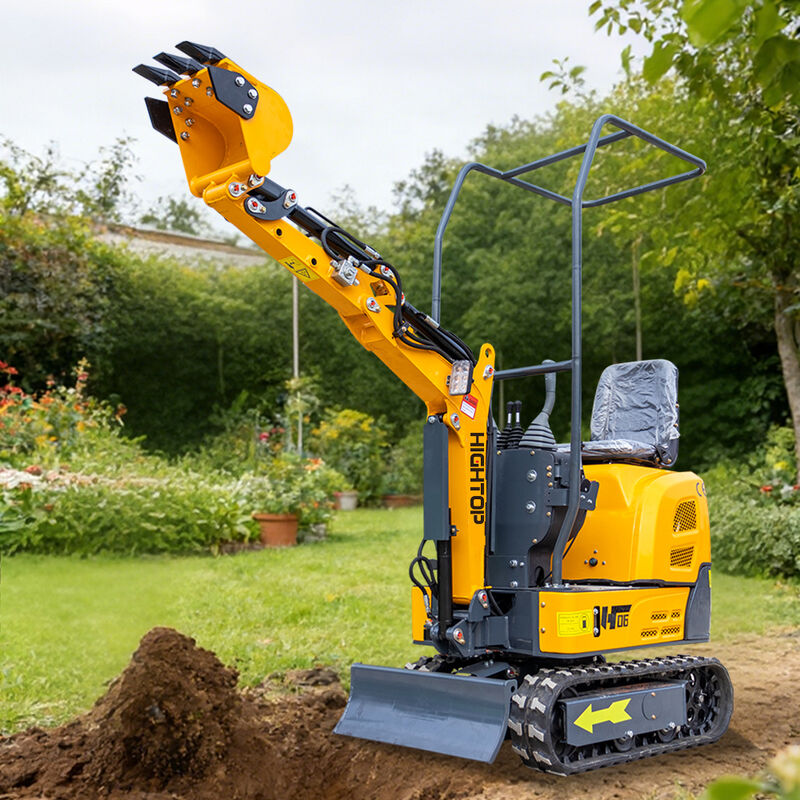

HT06 Mini Excavator with 600kg Operating Weight 2017mm Max Digging Height

Name: HT06 Mini Excavator with 600kg Operating Weight 2017mm Max Digging Height
Brand: Shandong Hightop Group
SKU: HT06
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT06

Product Details

Product Name:

HT06 Mini Excavator

Model:

HT06

Overal Legnth A:

1889mm

Max Digging Height A:

2017mm

Tail Turning Radius I:

650mm

Gradeability:

30°

Standard Track Shoe Width F:

150 Mm

Track Gauge E:

550 Mm

Working Weight:

600 Kg

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Packaging Details

Wooden crate packaging

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

100 set per month

Product Description

HT06 Mini Excavator

Product Overview

The HT06 Mini Excavator combines ultra-compact design with versatile performance, making it ideal for confined spaces and multiple job site applications.

Key Features

Ultra-compact Design for Effortless Maneuverability

Overall transport length: 1,889 mm; total width: 700 mm; total height: 2,086 mm
Easily accesses narrow spaces such as indoor areas, yards, and basements
Rear turning radius of just 650 mm for collision-free operation

Versatile Performance for Multiple Scenarios

Maximum digging height: 2,017 mm; maximum digging depth: 1,118 mm; maximum digging reach: 2,025 mm
Maximum dumping height of 1,284 mm and minimum swing radius of 1,239 mm
30° gradeability for complex terrain including construction site ramps and garden steps

Lightweight and Portable

Total operating weight of just 600 kg
Transportable by standard pickup truck - no large trailer required
0.01 m³ bucket capacity for precise material control

Reliable Core Components

Equipped with Runtong R300 or Briggs & Stratton engines
Tengfei main valve for precise hydraulic control
High-quality, wear-resistant pins for extended service life

Operational Excellence

Dozer blade ground clearance: 92 mm; digging depth: 93 mm
Standard track plate width: 150 mm with low ground pressure
Track contact length: 782 mm; total track length: 1,126 mm for stable operation

Flexible Configuration Options

Rearview mirror option for improved visibility and safety
Canopy options for indoor/outdoor adaptability
Rain cover available for enhanced operator comfort

Technical Specifications

Overall Length A	1,889 mm	Max Digging Height a	2,017 mm
Overall Width B	700 mm	Max Height at Minimum Turning Radius b	1,589 mm
Upper Width D	700 mm	Max Digging Depth c	1,118 mm
Overall Height C	2,086 mm	Max Digging Distance d	2,025 mm
Standard Track Shoe Width F	150 mm	Min Turning Radius e	1,239 mm
Track Gauge E	550 mm	Max Unloading Height f	1,284 mm
Shovel Height Above Ground G	92 mm	Working Weight	600 kg
Depth of Excavation of Bulldozer H	93 mm	Bucket Capacity	0.01 m³
Tail Turning Radius I	650 mm	Working Device Form	Backhoe
Track Ground Length J	782 mm	Gradeability	30°
Track Length K	1,126 mm	Main Valve	Tengfei
