HT08 800 kg Mini Excavator with 360 Degrees Tailless Rotation

Place of Origin	China
Brand Name	Hightop
Model Number	HT-08

Product Details

Product Name:

HT08 Mini Excavator

Bucket Capacity:

0.025 M3

Engine Model:

Koop 192

Weight:

800 Kg

Max. Digging Force:

7.5KN

Pump Form:

Single Gear Pump

Set Working Pressure:

14Mpa

Travel Speed:

2.2Km/h

Payment & Shipping Terms

Minimum Order Quantity

1 sets

Packaging Details

Wooden box packaging

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Product Description

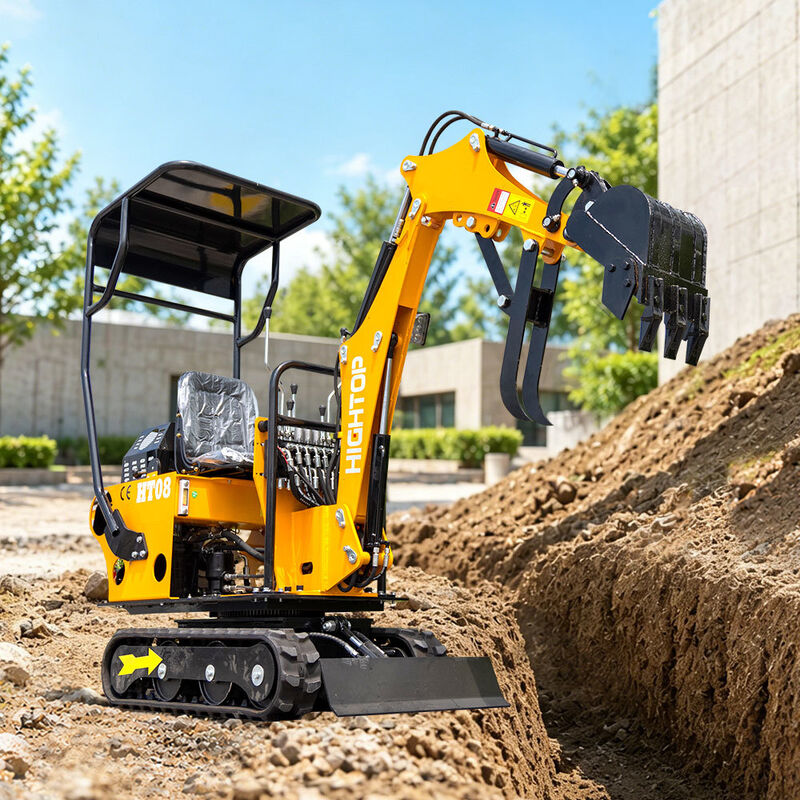

HT08 Mini Excavator

The HT08 800kg mini excavator offers compact design and exceptional flexibility with 360-degree tailless rotation. Engineered for stable performance and strong power with reduced fuel consumption, this multi-purpose machine saves time and labor while delivering long service life. Quick attachment changes enable versatile operation across various applications.

The 0.8-ton compact excavator features engines from internationally recognized brands including Changchai, Briggs & Stratton, and Koop. Compliant with European standards and US EPA environmental requirements, the HT08 carries CE, ISO, BV and other international certifications.

Performance specifications include maximum digging depth of 1300mm, maximum digging distance of 2450mm, and bucket capacity of 0.025 cubic meters.

Key Features

Unique large arm structure design for enhanced durability and reduced breakage risk
Clear front-end piping protected by durable covers (unlike exposed pipes on some competitor models)
Boom cylinder from reputable brands with integrated processing technology superior to welding
Precision-processed structural components with shot blasting, pickling, and painting for superior surface finish and paint adhesion
Pure cast iron hydraulic pump offering superior wear resistance compared to aluminum pumps at 3600 motor speed
High-quality German imported hydraulic pipes
Non-slip, wear-resistant tracks from established brands with guaranteed quality
Attractive machine design with customizable colors including yellow and black

Performance Parameters

Rated Power	7-7.5kw
Bucket Capacity	0.025 m³
Engine Model	Koop 192
Weight	800 kg
Max. Digging Force	7.5KN
Pump Form	Single Gear Pump
Set Working Pressure	14Mpa
Swing Speed	12 rpm
Travel Speed	2.2Km/h
Gradeability	30°
Ground Pressure	19Kpa

Working Range

Max. Digging Distance	2450mm
Max. Digging Depth	1200mm
Max. Digging Height	2350mm
Max. Dumping Height	1600mm
Min. Swing Radius	1100mm
Max. Upgrade Height of Bulldozer Blade	120mm
Max. Digging Depth of Bulldozer Blade	200mm
