| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |

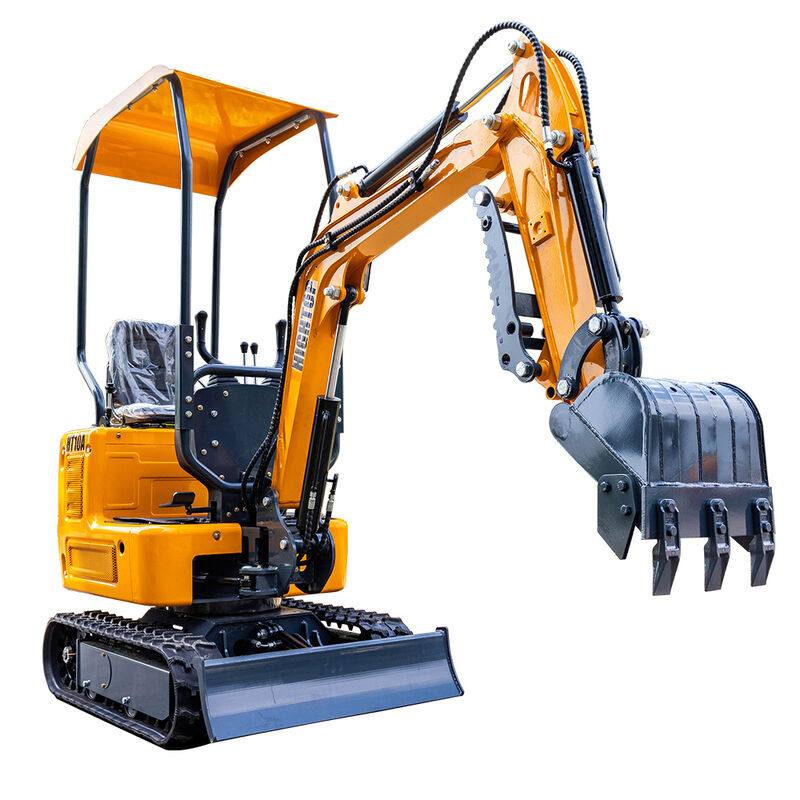

| Model Number | HT‑10A |
| Specification | Measurement |
|---|---|
| Total length / Transport length (A) | 3830 mm |
| Total width (B) | 925 mm |
| Upper width (D) | 710 mm |
| Total height (to the top of the cab) (C) | 2150 mm |
| Standard track plate width (F) | 180 mm |
| Track gauge (G) | 754 mm |
| Minimum ground clearance (H) | 106 mm |
| Tail turning radius (I) | 816 mm |
| Track contact length (J) | 950 mm |
| Track length (K) | 1225 mm |
| Work quality | 850 kg |
| Capacity of the tank | 0.02 m³ |
| Rated power | 10 kw |
| Rotation speed | 14 RPM |
| Climbing ability | 30° |
| Specification | Measurement |
|---|---|
| Maximum excavation height (a) | 2820 mm |
| Maximum unloading height (b) | 1950 mm |
| Maximum excavation depth (c) | 1700 mm |
| Maximum excavation distance (d) | 2880 mm |
| Minimum turning radius (e) | 1585 mm |
| Maximum height at the minimum turning radius (f) | 2055 mm |
