| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT15 |

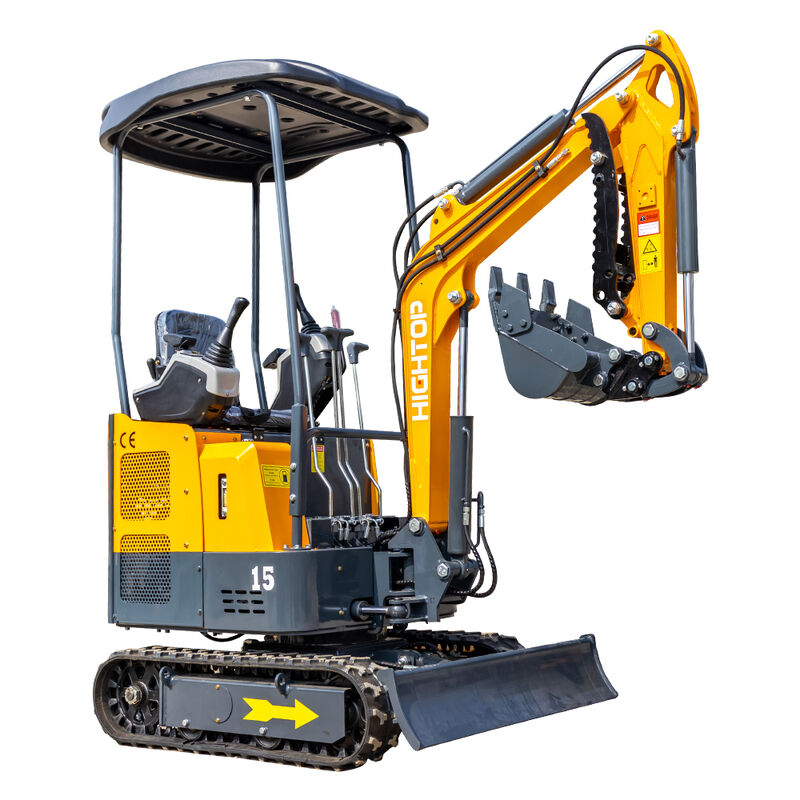

The HT15 mini excavator is engineered for exceptional performance with easy operation, powerful capabilities, and low fuel consumption. Designed for energy efficiency and environmental protection, this compact machine features a 360-degree rotating body and weighs 1500kg. Available with KOOP or Kubota brand engines, it comes with a standard 0.03 cubic meter bucket capacity.
The quick-change attachment system allows for versatile operation with various tools including rakes, augers, narrow buckets, grapple clamps, and trailers, making it ideal for multiple job site applications.
| Model | HT15 |
|---|---|
| Tread | 935mm |
| Crawler Length | 1235mm |
| Platform Ground Clearance | 380mm |
| Revolving Radius of Tail End | 870mm |
| Chassis Width | 1000mm |
| Crawler Width | 175mm |
| Crawler Height | 320mm |
| Transport Length | 2590mm |
| Seat Height to Ground | 1560mm |
| Full Vehicle Height | 2190mm |
| Weight | 1500kg |
| Standard Shovel Capacity | 0.03m³ |
| Working Device Form | Backhoe |
| Engine Model | Koop 292 |
| Displacement | 0.997L |
| Rated Output Power Speed | 15.5/3000 16.5/3600 |
| Maximum Torque | 48/2700 |
| Maximum Walking Speed | 2.4km/h |
| Gyration Speed | 9rpm |
| Maximum Climbing Ability | 30° |
| Bucket Digging Force | 10.5kn |
| Bucket Rod Excavation Force | 7.2kn |
| Maximum Traction Force | 12.2kn |
| Ground Specific Voltage | 25.6kpa |
| Track Track Material | Cauciuc |
| Type of Track Tensioning Device | Screw Tensioning |
| Hydraulic Pump Type | Gear Pumps |
| Working Pressure | 18Mpa |
| Traffic | 16L/min |
| Hydraulic Tank Capacity | 14L |
| Maximum Engine Oil Capacity (Effective) | 2.75/1.8L |
| Fuel Tank Capacity | 10L |
