| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT16 |

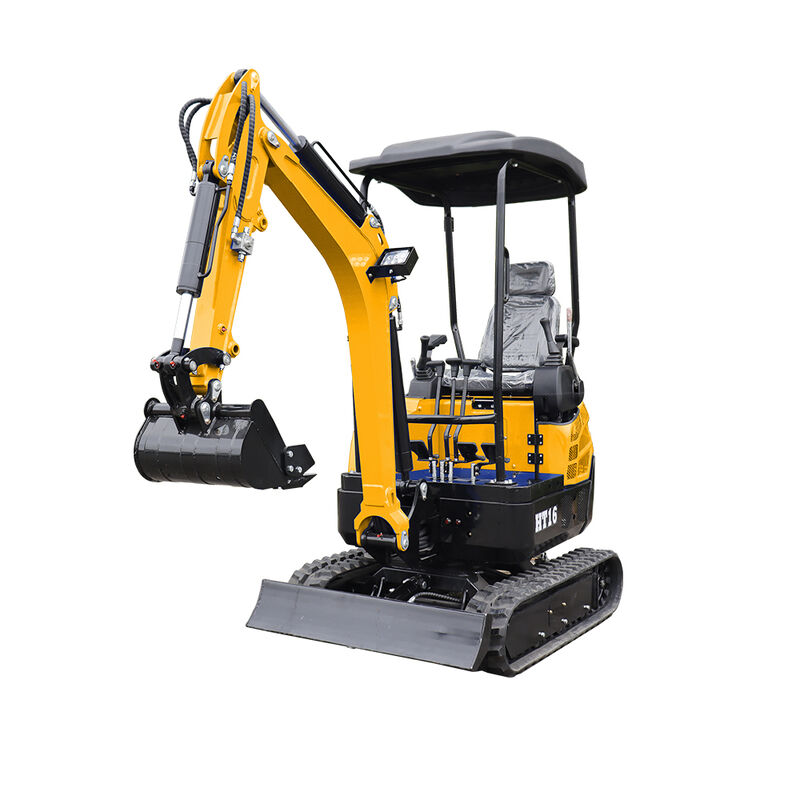

The HT16 is a 1.6-ton crawler mini excavator designed for maximum efficiency in confined spaces. Its compact structure and minimal turning radius enable seamless operation in narrow areas. Powered by a reliable diesel engine and featuring pilot hydraulic control, this machine delivers smooth, precise movements with exceptional stability.
Standard equipment includes a bulldozer blade, with support for quick attachment changes including breaker hammers, spiral drills, and tree-grabbing tools. Ideal for garden land preparation, orchard operations, municipal pipeline excavation, rural infrastructure construction, and courtyard renovation projects. The HT16 combines robust digging power with low fuel consumption, easy maintenance, and outstanding cost-effectiveness for small-scale earthwork applications.
| Model | HT16 |
|---|---|
| Overall Length A | 4325/1655mm |
| Overall Width | 1100mm |
| Upper Width | 990mm |
| Overall Height | 2272mm |
| Standard Track Shoe Width | 180mm |
| Track Gauge | 920mm |
| Minimum Ground Clearance | 119mm |
| Tail Turning Radius | 790mm |
| Track Ground Length | 1050mm |
| Track Length | 1545mm |
| Maximum Digging Height | 2580mm |
| Maximum Unloading Height | 1637mm |
| Maximum Digging Depth | 2060mm |
| Maximum Digging Distance | 3160mm |
| Minimum Turning Radius | 1711mm |
| Maximum Height at Minimum Turning Radius | 2048mm |
| Boom Swing Angle (Left) | 75° |
| Boom Swing Angle (Right) | 45° |
| Working Weight | 1600KG |
| Bucket Capacity | 0.03m³ |
| Power | 10.2KW/14KW |
| Swing Speed | 12RPM |
| Gradeability | 30 |
| Engine | KUBOTA D722:KOOP 292 |
| Main Valve | BEIFANG |
