HT-150 Full Hydraulic Crawler Excavator

HT-150 Full Hydraulic Crawler Excavator

Place of Origin China
Brand Name Hightop
Certification CE，EPA，ISO，TUV
Model Number HT-150
Product Details
Weight:
14.8T
Bucket Capacity:
0.53-0.58m²
Engine Rated Power:
73kw/1850rpm
Travel Speed (high/low):
5.04/3.01km/h
Ground Specific Pressure:
0.35-0.36kg/cm²
Gradeability:
70%
Highlight:

73kw/1850rpm Engine Rated Power HT-150 Full Hydraulic Crawler Excavator

,

14.8T Weight Hightop Mini Excavator

,

0.53-0.58m² Bucket Capacity Construction Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
100 set per month
Product Description

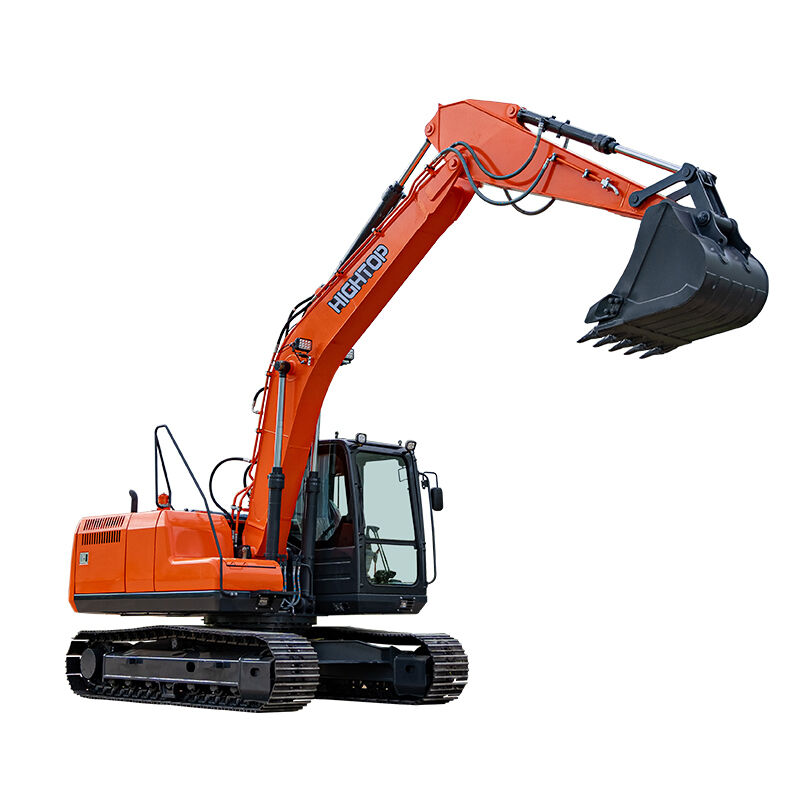

HT-150 Full Hydraulic Crawler Excavator
The HT-150 full hydraulic crawler excavator is a versatile 14.8-ton construction machine designed for optimal performance across multiple working scenarios. With powerful output and flexible operation capabilities, it supports various attachments to enhance working efficiency and adaptability.
Performance Specifications
Weight 14.8T
Bucket capacity 0.53-0.58m²
Engine rated power 73kw/1850rpm
Swing speed 10.1min⁻¹
Travel speed (high/low) 5.04/3.01km/h
Ground specific pressure 0.35-0.36kg/cm²
Gradeability 70%
Digging force Standard 77.4KN / Pressurized 81.3KN
Boom length 4600mm
Arm length 2500mm
Max. digging depth 5625 mm
Max. digging height 8750 mm
Max. unloading height 6300mm
Max. digging radius 8160mm
Min. turning radius 2207mm
Transport length 7662mm
Transport arm height 2980mm
Wheelbase 2780mm
Radius of gyration platform end 2202mm
Counter weight ground clearance 894mm
Track gauge 1990mm
Total width of undercarriage 2590mm
Width of upper structure 2540mm
Width of track shoe 600mm
Ground clearance 412mm
Total length of travel mechanism 3750mm
Cabin height 832mm
Product Gallery
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
HT-150 Crawler Excavator
