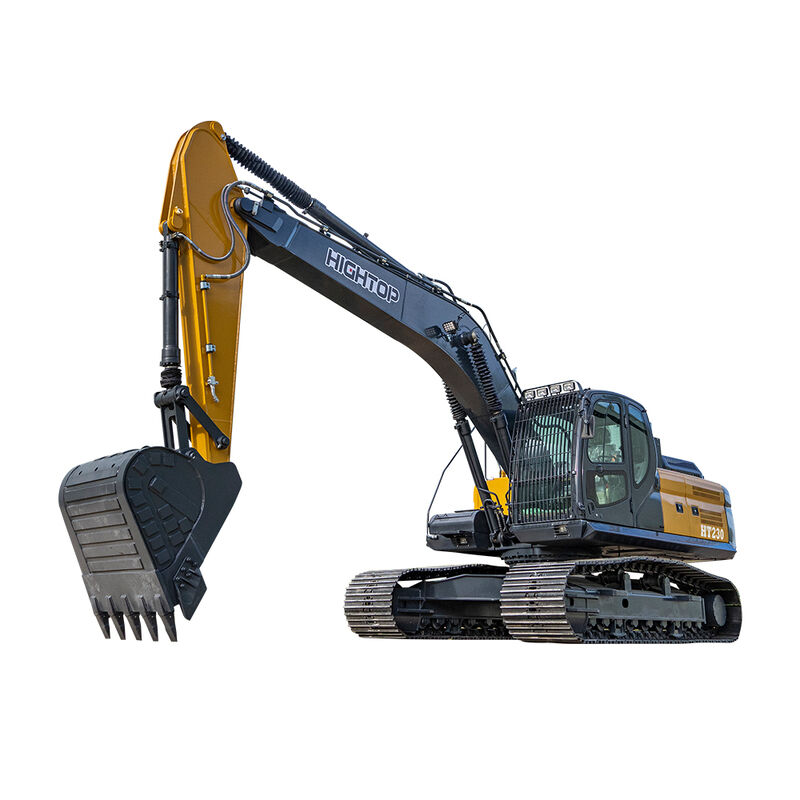

HT230 Large Excavator Crawler Excavator with 1.2m³ Bucket Capacity

Name: HT230 Large Excavator Crawler Excavator with 1.2m³ Bucket Capacity
Brand: Shandong Hightop Group
SKU: HT230
Price: Negotiable USD
Availability: InStock

Place of Origin	China
Brand Name	Hightop
Certification	CE，EPA，ISO，TUV
Model Number	HT230

Product Details

Model:

HT230

Weight:

22.3T

Transport Length A:

9600mm

Bucket Capacity:

1.2m²

Transport Arm Height B:

3005mm

Engine Rated Power:

128kw-135kw

Wheelbase C:

3635 Mm

Swing Speed:

10.7 Min⁻¹

Highlight:

1.2m³ Bucket Capacity Large Excavator

128kw-135kw Engine Crawler Excavator

22.3T Operating Weight Large Excavator

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden case

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

100 set per month

Product Description

Product Overview

The HT230 is a 23-ton class fully hydraulic crawler excavator engineered for demanding job sites. Powered by a 140 kW engine and fitted with a standard 1.0 m³ bucket, it combines reliable hydraulic components, reinforced working structures, and an intelligent monitoring system for consistent, dependable performance.

With a comfortable operator cabin and optional attachments including a breaker and grapple, the HT230 delivers steady results across earthmoving, municipal works, road construction, and foundation projects.

Key Specifications

Weight	22.3 T
Transport Length (a)	9600 mm
Bucket Capacity	1.2 m³
Transport Arm Height (b)	3005 mm
Engine Rated Power	128 kW – 135 kW
Wheelbase (c)	3635 mm
Swing Speed	10.7 min⁻¹
Radius of Gyration, Platform End (d)	2794 mm
Travel Speed (High/Low)	43.5 kPa
Track Gauge (f)	2400 mm
Gradeability	70%
Total Width of Undercarriage (g)	2980 mm
Digging Force	Standard 144.1 kN
Width of Upper Structure (h)	2990 mm
Boom Length	5700 mm
Width of Track Shoe (i)	600 mm
Arm Length	2900 mm
Ground Clearance (j)	600 mm / 475 mm
Maximum Digging Depth	6592 mm
Total Length of Travel Mechanism (k)	4440 mm
Maximum Digging Height	9616 mm
