2 ton Mini Crawler Excavator Euro 5 EPA Engine Compact Excavator
HT20-2 Mini Crawler Excavator Description:
HT20-2 mini excavator with steel track, with broken pipeline system , the machine can change track from steel to rubber. Can telescoping the track frame.Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
HT20-2 Mini Crawler Excavator Features:
5. Highly trained team members with overseas working experience
Mini Crawler Excavator Technical parameters:
| Machine Size | |
| Overall dimension (L*W*H) | 3555mm*1300mm*2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| Track System | |
| Maximum Travel speed | 4km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| Performance Parameter | |
| Standard bucket capacity | 0.07m³ |
| Swing speed | 9rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 18KN |
| Max. Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| Engine | |
| Emission Standard | Euro 5/EPA |
| Engine Brand | Kubota |
| Model | D1105 |
| Power/Rotation speed | 14.1kw(20HP) 2000rpm |
| Number of cylinder | 3 |
| Working Range | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2440mm |
| Max. Digging depth | 2400mm |
| Max. Vertical digging depth | 2025mm |
| Max. Digging radius | 4040mm |
| Min .swing radius | 1610mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Applications:
Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.

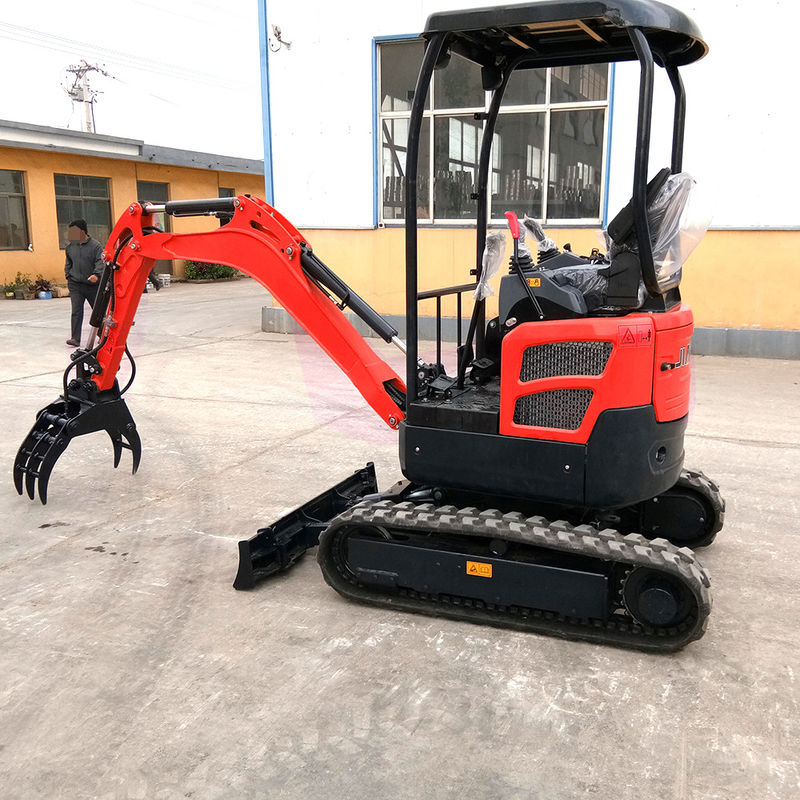

HT20-2 Mini Crawler Excavator Show Details:
