| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT20-2 |

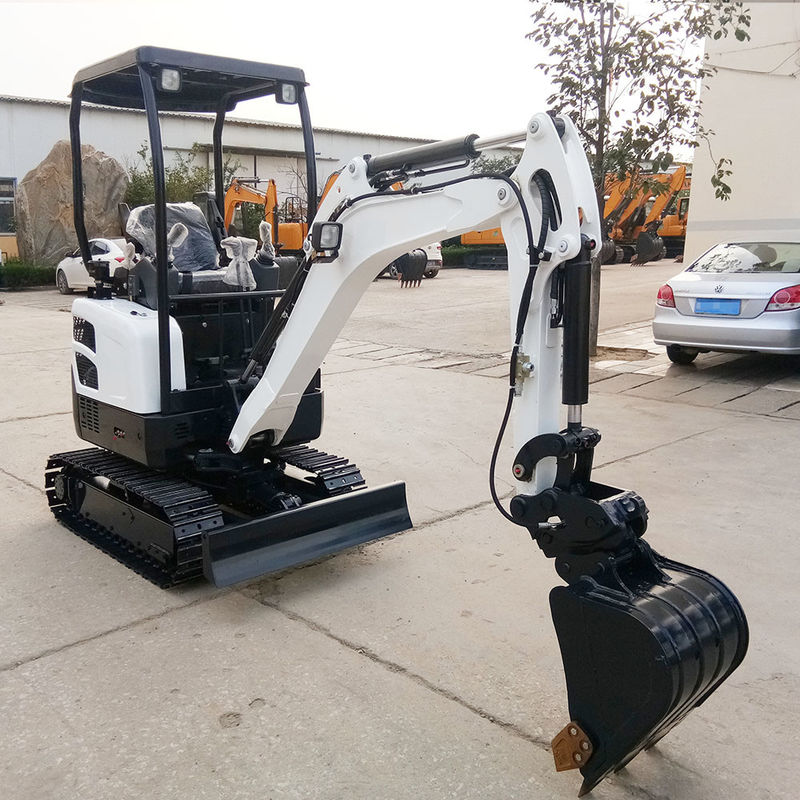

2000rpm Crawler Mini Home Excavator Euro 5 Engine 2 Tonne Digger
HT20-2 Mini Crawler Excavator Description:
HT20-2 mini excavator With swing boom: Left 75°,Right 45°
With telescopic track chassis,990mm-1300mm
HT20-2 Mini Crawler Excavator Features:
3. With Hydraulic pilot operation system,It saves energy to operate and makes compound movements smoother
Mini Crawler Excavator Technical parameters:
| Machine Size | |
| Overall dimension (L*W*H) | 3555mm*1300mm*2290mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 760mm |
| Min.Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| Track System | |
| Maximum Travel speed | 4km/h |
| Width of track shoe | 230mm |
| Number of track shoe per side | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| Performance Parameter | |
| Standard bucket capacity | 0.07m³ |
| Swing speed | 9rpm |
| Max. Grade ability | 35° |
| Max. Bucket digging force | 18KN |
| Max. Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| Engine | |
| Emission Standard | Euro 5/EPA |
| Engine Brand | Kubota |
| Model | D1105 |
| Power/Rotation speed | 14.1kw(20HP) 2000rpm |
| Number of cylinder | 3 |
| Working Range | |
| Max. Digging height | 3700mm |
| Max. Dumping height | 2440mm |
| Max. Digging depth | 2400mm |
| Max. Vertical digging depth | 2025mm |
| Max. Digging radius | 4040mm |
| Min .swing radius | 1610mm |
| Max. Lifting height of blade | 240mm |
| Max. Cutting depth of blade | 270mm |
| Boom swing angle(Left) | 75° |
| Boom swing angle(Right) | 45° |
Applications:
Multi-function: In addition to digging, loading and unloading materials, small excavators can also be used for operations under special conditions, such as changing other work tools: install augers for drilling and install grippers for wood grabbing, Installation is used to loosen the ground, install breakers, augers, grippers, rakes, rippers, narrow buckets, grab buckets, flat buckets, trailers, etc., to adapt to other accessories for different construction occasions.
HT20-2 Mini Crawler Excavator Show Details:
