Mini Crawler Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT40 |

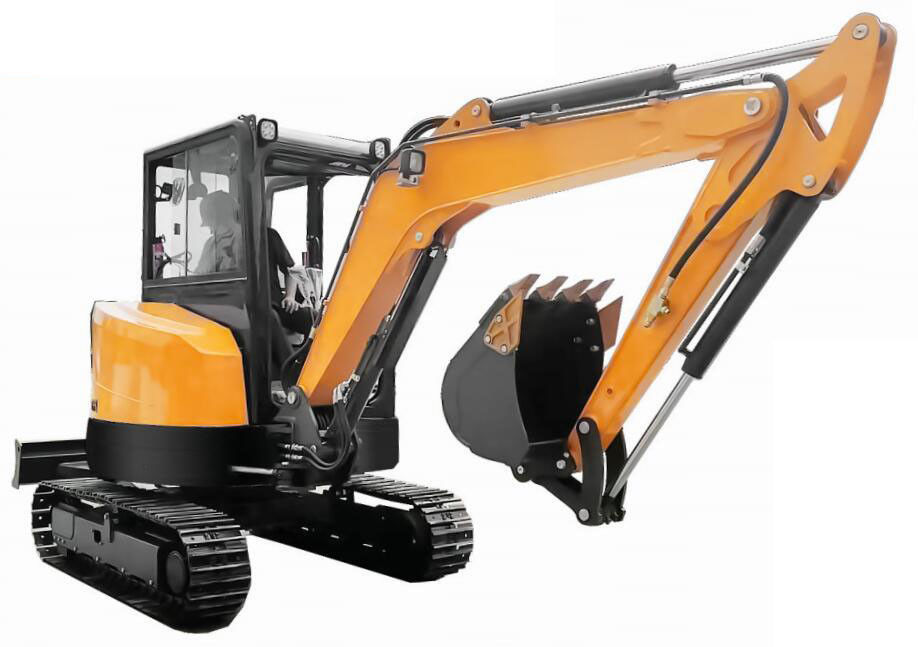

4000kg Closed Cabin Mini Crawler Excavator Can Be Opened For Easy Repair
HT40 Mini Crawler Excavator Description:
1. Hydraulic pilot servo operation system
2. Steel track :300mm
3. With hydraulic hammer pipeline system
4. Bucket capacity: 0.12m³
HT40 Mini Crawler Excavator Features:
1. lift off armrest :Graduate seat distance
2. Kubota Engine , meet EPA and EURO 5
3. Boom swing
4. The machine can be opened for easy repair
Mini Crawler Excavator Technical parameters:
| ENGINE | |
| Emission Standard | Euro 5,EPA4 |
| Make /Model | KUBOTA /D1703 |
| Power /Rotation speed | 18.5kw(25HP)@2200rpm |
| Number of cylinder | 3 |
| Type | In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated |
| Max.torque | 97.4N.m/1500rpm |
| Displacement | 1.647L |
| TRACK DRIVING SYSTEM | |
| Maximum Travel speed(High/low) | 4.4/2.4km/h |
| Width of steel track shoe | 300mm |
| Carrier roller(Each side) | 1 |
| Supporting roller(Each side) | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.12m³ |
| Swing speed | 9rpm |
| Maximum Grade ability | 58% |
| Ground pressure | 32Kpa |
| Maximum Bucket digging force | 30.4KN |
| Maximum Arm digging force | 18.2KN |
| Hydraulic system pressure | 22.5Mpa |
| Machine weight | 3810kg |
| Boom length | 2535mm |
| Arm length | 1400mm |
| Fuel tank capacity | 42L |
| Hydraulic oil tank capacity | 48.5L |
| Engine oil capacity | 7L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 4915mm*1720mm*2525mm |
| Axle base(Track length on ground) | 1670mm |
| Length of rubber track | 2154mm |
| Track gauge | 1420mm |
| Minimum Ground clearance | 295mm |
| Swing radius at tail | 860mm |
| Swing radius at front | 2538mm |
| Height of blade | 350mm |
| WORKING RANGE | |
| Maximum Digging height | 4800mm |
| Maximum Dumping height | 3406mm |
| Maximum Digging depth | 3208mm |
| Maximum Vertical digging depth | 2957mm |
| Maximum Digging distance | 5480mm |
| Maximum digging distance (on ground) | 5359mm |
| Minimum swing radius | 2530mm |
| Max.height when min.swing radius | 3655mm |
| Maximum Lifting height of blade | 365mm |
| Maximum Cutting depth of blade | 385mm |
| Boom swing angle(Left/Right) | 55°/65° |
Applications:
HT40 cab mini excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.
HT40 Closed Cabin Mini Crawler Excavator Show Details:
