Mini Crawler Excavator
>
|
| Place of Origin | China |
| Brand Name | Hightop |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT17-1 |
1700kg CE Mini Crawler Excavator Cheap Price Hydraulic Crawler Digger
HT17 Mini Crawler Excavator Description:
Euro 5, EPA, CE,ISO certificate

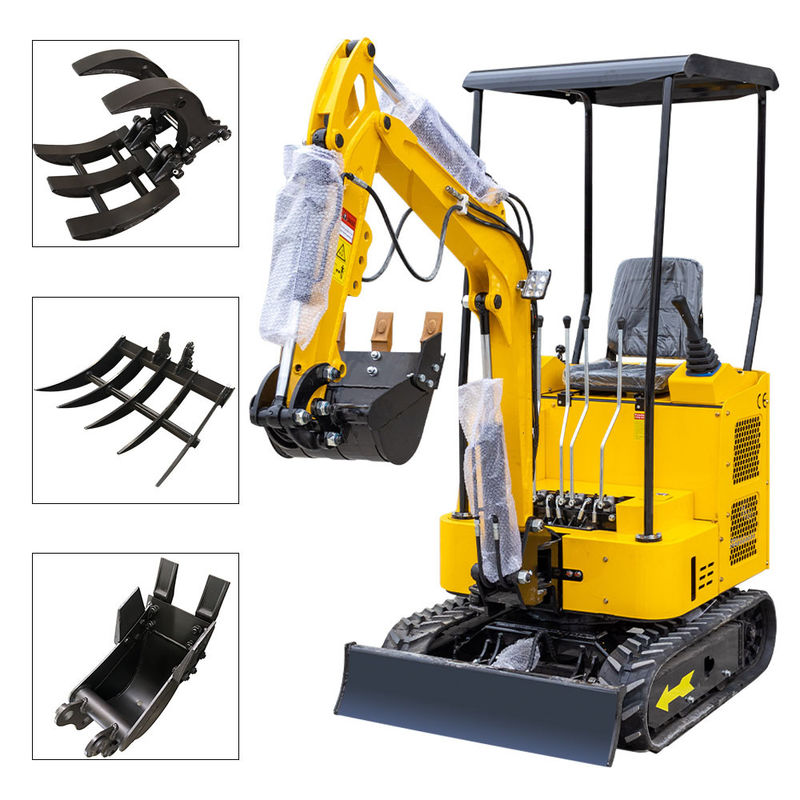

The HT17 mini Crawler excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions.
HT17 Mini Crawler Excavator Features:
1. Hydraulic pump is easy to maintain, long life
2. The retractable undercarriage lets you access and work in the tightest areas.
3. Rubber track no damage to cement, tile floor.
4. Dig-to-blade and dozer float features allow for easy clean up.
Mini Crawler Excavator Technical parameters:
| Model | HT17 |
| Operation Weight | 1700kg |
| Digging bucket capacity | 0.03CBM |
| Engine | Laidong |
| Bore stroke | 3 cylinder, water cool |
| Rated power | 18.1 kw/2200r/min |
| Travel speed | 2.5km/h |
| Ground Pressure | 38 kpa |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 2550x1300x2200 mm |
| Total length of track | 1300mm |
| Track Gauge | 950 mm |
| Track Width | 180 mm |
| Track Length(on ground) | 1300 mm |
| OPERATING RANGE | |
| Max. Digging depth | 1800 mm |
| Max. Digging height | 2740 mm |
| Max. Dumping height | 1750mm |
| Max.Digging Radius | 2400 mm |
| Slewing Angle | 360° |
| Main Pump | Triple Pump |
| Main Pressure | 18Mpa |
| Max.Rpm of the pump | 2500 r/min |
| Pump Displacement | 18ml/r |
Applications:
HT17 mini excavator is widely used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is with compact design, and with low oil consumption,and easy to maintain.
HT17 Mini Crawler Excavator Show Details:
