Mini Crawler Dumper
>
|
| Place of Origin | China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT5050A |
IOS New Mini Crawler Dumper Transporter Rubber Track Dumper 500kg
Description of HT5050A Mini Crawler Dumper:
Crawler dump truck, also known as handling truck, unloader, mountain climber. Suitable for easily transporting large items, crops, sand, and other objects that are difficult to transport manually in narrow spaces.
Features of HT5050A Mini Crawler Dumper:
The HT5050A mini dumper is easy to operate, with precise controls and a unique design that makes operation not only fast and cost saving, but also has excellent climbing ability, especially for hard work, and features rubber tracks that allow the operator to transport with little effort and reduce damage to the ground to a minimum.
Technical parameters of HT5050A Mini Crawler Dumper :
| Mini Dumper Model | 5050A |
| Engine | Loncin270CC |
| Cooling mode | Air-cooled |
| Fuel | Gasoline |
| Emission | Euro 5 |
| Transmission | Forward:6/Rear:2 |
| Speed type | High-Low |
| Loading capacity | 500kg |
| Box length | 816mm |
| Box width | 680mm |
| Box depth | 620mm |
| Box type | Integrated/one-piece |
| Track width | 180mm |
| Flow of pump | 3L/min |
| Mini Dumper weight | 316kg |
| Overall dimension(L*W*H) | 1750*700*1080 |
| Start mode | Electric |
| Driving type | Mechanical |
| Steering mode | Mabual |
| Unload mode | Hydraulic |
| Loading quantity | 18sets/20GP |
| 36sets/40HQ |
Application of Mini Crawler Dumper:
mini dumper is suitable for complex areas such as swamps, riverbanks, deserts, paddy fields, tropical rainforests, mountains and snow.

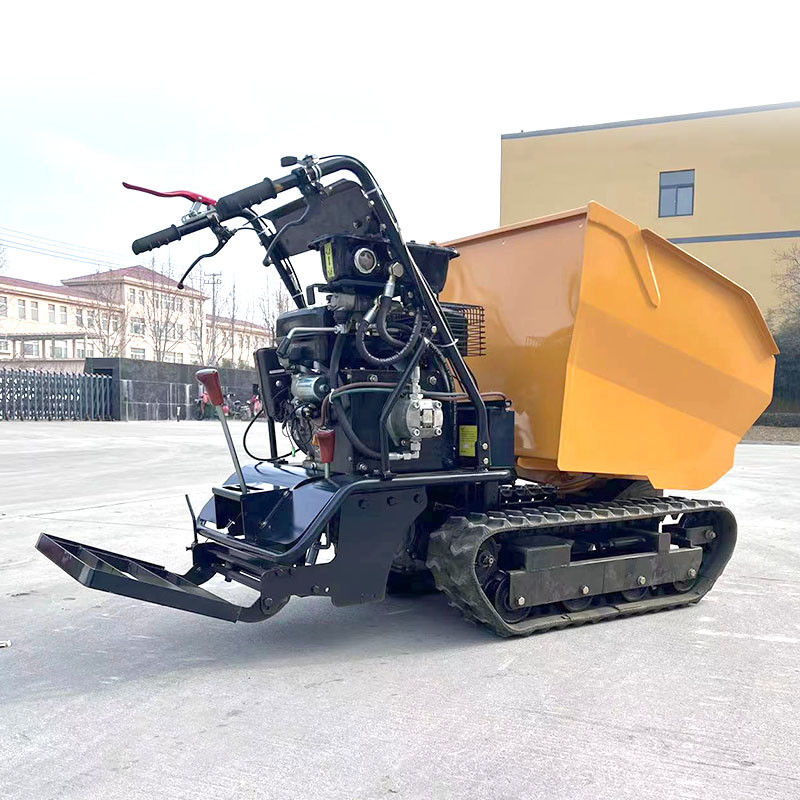

Images of HT5050A Mini Crawler Dumper:
