Mini Crawler Dumper
>
|
| Place of Origin | China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT5100 |
IOS New Mini Crawler Dumper Transporter Rubber Track Dumper 1000kg
Description of HT5050A Mini Crawler Dumper:
The crawler transporter is a dump truck made of rubber crawler chassis or steel crawler chassis. manufacturer quality assurance, long service life, high efficiency.
Features of HT5100 Mini Crawler Dumper:
1. wide range of use, simple structure, smooth transmission, labor-saving operation, easy to realize automatic control.
2. Single-cylinder power system, low fuel consumption. Large traction, good climbing grip performance, and strong transportation capacity.
Technical parameters of HT5100 Mini Crawler Dumper :
| Mini Dumper Model | 5100 |
| Engine | KoopKD192F |
| Cooling mode | Air-cooled |
| Fuel | Gasoline |
| Emission | Euro 5 |
| Transmission | Forward:3/Rear:1 |
| Speed type | / |
| Loading capacity | 1000kg |
| Box length | 1250mm |
| Box width | 890mm |
| Box depth | 480mm |
| Box type | Integrated/one-piece |
| Track width | 230mm |
| Flow of pump | |
| Mini Dumper weight | 682KG |
| Overall dimension | 2310*950*1345 |
| Start mode | Electric |
| Driving type | |
| Steering mode | Lever type |
| Unload mode | Hydraulic |
| Loading quantity | 6sets/20GP |
| 12sets/40HQ |
It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

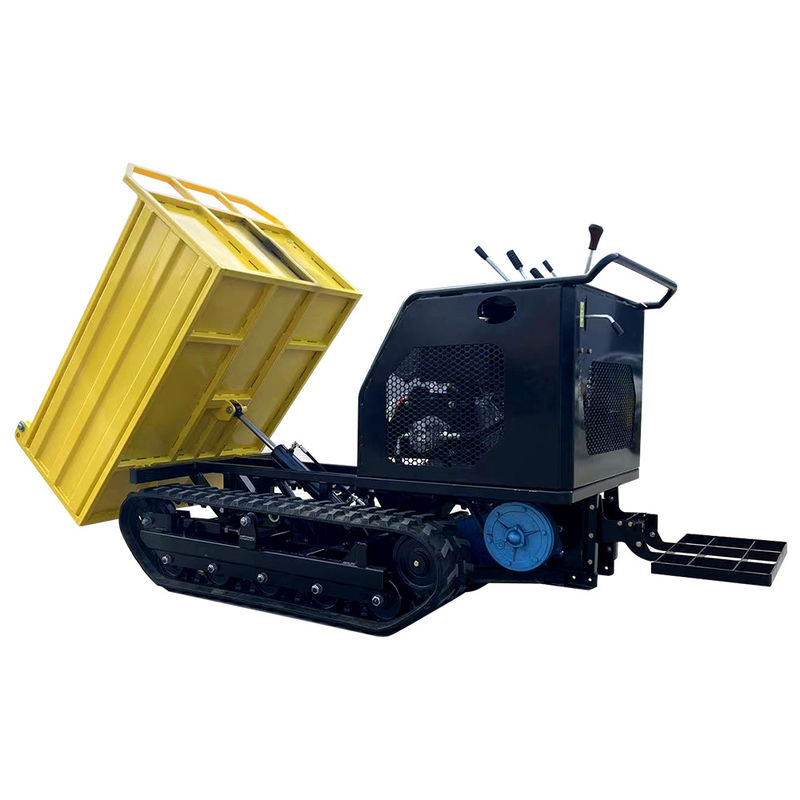

Images of HT5100 Mini Crawler Dumper:
