13.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity
  • 13.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity
  • 13.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity

13.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity

Place of Origin Shandong China
Brand Name Hightop
Certification CE,EPA,ISO
Model Number HTD1200
Product Details
Maximum Rotation Angle:
260
Rated Power:
13.5HP/3600rpm
Fuel Tank Capacity:
6.5L
Maximum Load Capacity:
1200kg
Tipping Interval:
320mm
Displacement:
420CC
Engine Model:
Briggs&Stratton Pioneer
Body Size : (Footboard Not Included):
2060*900*1400
High Light:

Maximize Construction Productivity Mini Crawler Dumper

,

13.5HP mini crawler dumper

,

3600rpm mini crawler dumper

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
7-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

Product Description:

HTD1200 Rotary Dumper Instruction

HIGHTOP's HTD1200 Rotary Dumper, which offers high work efficiency and operational flexibility, utilizes engineered rubber tracks that provide balanced weight distribution, traverses interesting terrain with ease, and saves the user cost as well as manpower in a timely manner.

The HTD1200 offers ease of maneuverability, low cost maintenance and high return on investment, with a 90 degree tilt angle, the unoccupied hopper allows for quick cycle work. Rotate the bucket from left to right and it can be dumped in any direction at the push of a switch, allowing the operator to turn the bucket on a construction site or in tight terrain without having to rotate the entire machine, the battle platform can be folded for a smaller turning radius and the machine can be pneumatically manoeuvred to improve manoeuvrability, and the rubber tracks on steep or rugged terrain improve driveability in muddy or sandy terrain where wheeled trucks cannot. Easy and convenient operation, hydraulic transmission for efficient energy transfer to the tracks, hopper control, separate controls for dumping and rotating, allowing both motions to be operated at the same time, tracks allow for a smaller turning radius, engine compartment allows for opening for maintenance or locking for added safety, close and lock the engine compartment at normal times, the HTD1200 is a multi-purpose, multi-purpose, multi-purpose, multi-purpose, multi-purpose platform that is designed to be used in a wide variety of applications.

The HTD1200 is a multi-market machine suitable for rental stores, concrete contractors, landscapers, utility contractors, trail builders, plumbing and drainage contractors and more.

HTD1200 Rotary Dumper Parameter

Engine Model Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 420CC
Rated Power 13.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 6.5
Weight data
Net weight: 850
Maximum load capacity 1200

Body size :

(Footboard not included)

2060*900*1400
Pedal machine size included 2470*900*1400
Container size: 1400*800*600
Chassis width: 900
Rotating data
Maximum rotation Angle 260
Rotation mode: Hydraulic rotation
Tipping interval 320mm
Track data
track width: 180
Track grounding length: 1000
Chassis ground clearance: 140
Hopper data
Cargo box Capacity 594
Tipping Systme Hydraulic Tipper
Tilting Angle 90
Clearance after tipping container 300
Walk data
Walking Speed 5
Climbing abillty 25

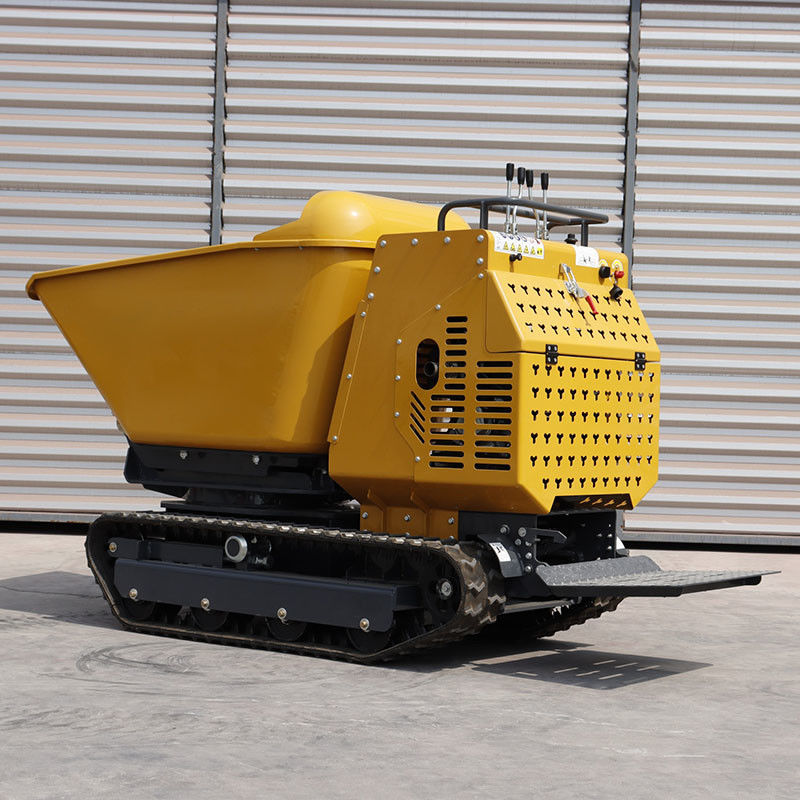

13.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity 013.5HP 3600rpm Mini Crawler Dumper Maximize Construction Productivity 1





Features:

  • Product Name: Mini Crawler Dumper
  • Engine Type: Single Cylinder, OHV, 4-stroke, Air Cooling
  • Rated Power: 13.5HP/3600rpm
  • Engine Model: Briggs&Stratton Pioneer
  • Chassis width: 900
  • Maximum load capacity: 1200kg

This Mini Crawler Dumper is a versatile and powerful vehicle that can be used as a garbage dump truck or a crawler dumper. Its single cylinder, OHV, 4-stroke, air-cooled engine provides a rated power of 13.5HP/3600rpm, making it capable of handling heavy loads with ease. The chassis width of 900 ensures stability and control even on rough terrain, while the maximum load capacity of 1200kg allows for efficient transportation of materials.



Technical Parameters:

Technical Parameter Description
Product Name Mini Crawler Dumper
Body Size (Footboard not included) 2060*900*1400
Rotation Mode Hydraulic Rotation
Total Weight 850kg
Chassis Width 900
Fuel Tank Capacity 6.5L
Pedal Machine Size Included 2470*900*1400
Displacement 420CC
Engine Model Briggs&Stratton Pioneer
Maximum Load Capacity 1200kg
Engine Type Single Cylinder, OHV, 4-stroke, Air Cooling


Applications:

Hightop Mini Crawler Dumper HTD1200 is a versatile and practical mini dump truck suitable for a variety of applications. Made in Shandong, China, this mini dumper is certified with CE, EPA, and ISO. It is available for negotiation at a minimum order quantity of 1 set and can be delivered to your doorstep in a wooden case within 7-14 work days. Payment terms include Western Union, MoneyGram, T/T, D/A, D/P, and L/C, and the supply ability is 100 sets per month.

Equipped with a single-cylinder, OHV, 4-stroke, air-cooled engine, with a rated power of 13.5HP/3600rpm, this mini crawler dumper has a powerful and efficient performance. The fuel type is 92 # gasoline, and the fuel tank capacity is 6.5L. The rotation mode is hydraulic rotation, making it easy to unload materials.

The Hightop Mini Crawler Dumper HTD1200 is perfect for a wide range of applications and scenarios. Its compact size and crawler tracks make it suitable for use in tight spaces, such as construction sites and farms. It can easily carry and transport materials such as sand, gravel, and soil. Its excellent off-road performance makes it ideal for use in rugged terrain, providing reliable transportation for materials and supplies.

The Mini Crawler Dumper is also an ideal tool for landscaping and gardening projects. It can easily transport soil, mulch, and plants around the yard, making it an essential tool for landscapers and gardeners. The crawler tracks provide excellent traction, making it easy to maneuver on uneven surfaces and slopes.

In addition, the Hightop Mini Crawler Dumper HTD1200 is perfect for use in construction projects. Its compact size and crawler tracks make it easy to access tight spaces and maneuver around obstacles. It can easily transport materials such as cement, bricks, and lumber, making it an essential tool for construction sites.

The Farm Crawler Dumper is also suitable for use in agriculture. It can easily transport feed, fertilizer, and other materials around the farm, making it a valuable tool for farmers. Its excellent off-road performance makes it ideal for use in fields and on rough terrain.

In conclusion, the Hightop Mini Crawler Dumper HTD1200 is a versatile and practical mini dump truck suitable for a variety of applications. Its compact size, excellent off-road performance, and powerful engine make it an essential tool for construction sites, farms, and landscaping and gardening projects. Get your hands on this mini crawler dumper today and make your work easier and more efficient!



Customization:

Brand Name: Hightop

Model Number: HTD1200

Place of Origin: Shandong China

Certification: CE,EPA,ISO

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden case

Delivery Time: 7-14 work days

Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability: 100 set per month

Container size: 1400*800*600

Body size: (Footboard not included): 2060*900*1400

Engine Type: Single Cylinder, OHV, 4-stroke, Air Cooling

Maximum rotation Angle: 260

Rated Power: 13.5HP/3600rpm

Crawler Dumper, Self Loading Dump Trucks, Hydraulic Crawler Dumper



Support and Services:

Our Mini Crawler Dumper product comes with comprehensive technical support and services to ensure smooth and trouble-free operation. Our team of experts is always available to answer any technical queries and provide guidance on maintenance and repairs.

We offer on-site training to operators and maintenance personnel to ensure that they are fully equipped to operate and maintain the Mini Crawler Dumper. Additionally, we provide a warranty for our product that covers any manufacturing defects for a specified period.

In case of any issues or breakdowns, we provide prompt on-site support to minimize any downtime and ensure that your operations are back up and running as soon as possible.

We also offer spare parts and accessories for the Mini Crawler Dumper to ensure that you have everything you need to keep your equipment running smoothly. Our spare parts are genuine and of high quality, ensuring that they are reliable and long-lasting.



Packing and Shipping:

Product Packaging:

  • 1 Mini Crawler Dumper
  • 1 Instruction Manual

Shipping Information:

  • Product will be shipped within 2 business days of order placement.
  • Shipping method: Standard Ground
  • Estimated delivery time: 5-7 business days
  • Shipping cost: $25
