Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency
  • Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency
  • Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency

Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency

Place of Origin Shandong China
Brand Name Hightop
Certification CE,EPA,ISO
Model Number HTD1200
Product Details
Rotation Mode:
Hydraulic Rotation
Rated Power:
13.5HP/3600rpm
Container Size:
1400*800*600
Engine Type:
Single Cylinder, OHV, 4-stroke, Air Cooling
Chassis Width:
900
Engine Model:
Briggs&Stratton Pioneer
Maximum Rotation Angle:
260
Tipping Interval:
320mm
High Light:

Boost Construction Efficiency Mini Crawler Dumper

,

Best Choice Mini Crawler Dumper

,

single cylinder mini crawler dumper

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
7-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

Product Description:

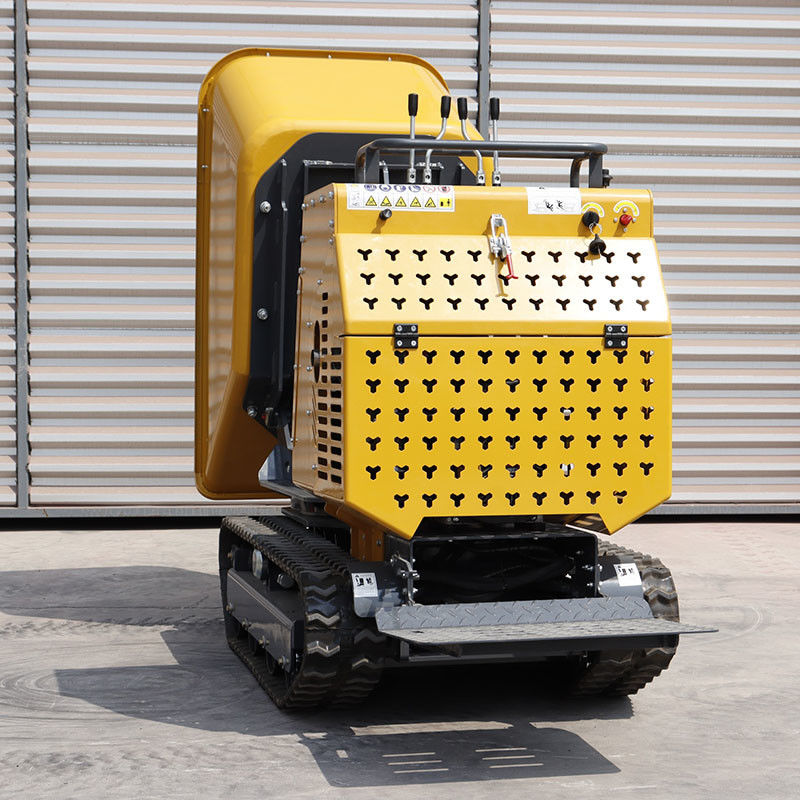

HTD1200 Rotary Dumper Instruction

HIGHTOP's HTD1200 Rotary Dumper, which offers high work efficiency and operational flexibility, utilizes engineered rubber tracks that provide balanced weight distribution, traverses interesting terrain with ease, and saves the user cost as well as manpower in a timely manner.

The HTD1200 offers ease of maneuverability, low cost maintenance and high return on investment, with a 90 degree tilt angle, the unoccupied hopper allows for quick cycle work. Rotate the bucket from left to right and it can be dumped in any direction at the push of a switch, allowing the operator to turn the bucket on a construction site or in tight terrain without having to rotate the entire machine, the battle platform can be folded for a smaller turning radius and the machine can be pneumatically manoeuvred to improve manoeuvrability, and the rubber tracks on steep or rugged terrain improve driveability in muddy or sandy terrain where wheeled trucks cannot. Easy and convenient operation, hydraulic transmission for efficient energy transfer to the tracks, hopper control, separate controls for dumping and rotating, allowing both motions to be operated at the same time, tracks allow for a smaller turning radius, engine compartment allows for opening for maintenance or locking for added safety, close and lock the engine compartment at normal times, the HTD1200 is a multi-purpose, multi-purpose, multi-purpose, multi-purpose, multi-purpose platform that is designed to be used in a wide variety of applications.

The HTD1200 is a multi-market machine suitable for rental stores, concrete contractors, landscapers, utility contractors, trail builders, plumbing and drainage contractors and more.

HTD1200 Rotary Dumper Parameter

Engine Model Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 420CC
Rated Power 13.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 6.5
Weight data
Net weight: 850
Maximum load capacity 1200

Body size :

(Footboard not included)

2060*900*1400
Pedal machine size included 2470*900*1400
Container size: 1400*800*600
Chassis width: 900
Rotating data
Maximum rotation Angle 260
Rotation mode: Hydraulic rotation
Tipping interval 320mm
Track data
track width: 180
Track grounding length: 1000
Chassis ground clearance: 140
Hopper data
Cargo box Capacity 594
Tipping Systme Hydraulic Tipper
Tilting Angle 90
Clearance after tipping container 300
Walk data
Walking Speed 5
Climbing abillty 25






Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency 0Best Choice Single Cylinder Mini Crawler Dumper Boost Construction Efficiency 1



Features:

  • Product Name: Mini Crawler Dumper
  • Tipping interval: 320mm
  • Body size (Footboard not included): 2060*900*1400
  • Engine Model: Briggs&Stratton Pioneer
  • Maximum load capacity: 1200kg
  • Fuel Tank capacity: 6.5L

This Mini Crawler Dumper is a versatile self loading dump truck that can be used on farms and in various construction and landscaping projects. Its compact size and powerful Briggs&Stratton Pioneer engine make it easy to maneuver in tight spaces while still carrying a maximum load capacity of 1200kg. With a tipping interval of 320mm, this Mini Dump Truck can quickly and efficiently transport materials wherever they need to go.



Technical Parameters:

Farm Crawler Dumper
Maximum load capacity 1200kg
Fuel Tank capacity 6.5L
Rotation mode Hydraulic Rotation
Total Weight 850kg
Tipping interval 320mm
Container size 1400*800*600
Displacement 420CC
Rated Power 13.5HP/3600rpm
Fuel Type 92 # Gasoline
Maximum rotation Angle 260
Garbage Dump Truck


Applications:

One of the primary applications for the Hightop HTD1200 Mini Crawler Dumper is in the construction industry. This hydraulic crawler dumper is ideal for transporting materials like sand, gravel, and concrete over rough terrain. Its compact size and maneuverability make it perfect for use on job sites where space is limited, and its powerful engine ensures that it can handle heavy loads with ease.

In addition to construction sites, the Hightop HTD1200 Mini Crawler Dumper is also well-suited for use in mining operations. Its sturdy construction and powerful engine make it an ideal choice for transporting materials like coal, rock, and ore over rough terrain. Its self-loading dump truck feature also makes it perfect for use in garbage dump truck applications where it can quickly and efficiently transport waste materials to the appropriate location.

The Hightop HTD1200 Mini Crawler Dumper is also ideal for use in agricultural applications. Its compact size and maneuverability make it perfect for use in orchards, vineyards, and other areas where space is limited. Its powerful engine and sturdy construction allow it to handle heavy loads of crops, fertilizer, and other materials with ease.

The Hightop HTD1200 Mini Crawler Dumper is a CE, EPA, and ISO certified product that meets the highest standards of quality and performance. It has a minimum order quantity of 1 set, and the price is negotiable. The product is packaged in a wooden case and can be delivered in 7-14 working days. Payment can be made through Western Union, MoneyGram, T/T, D/A, D/P, or L/C, and the product has a supply ability of 100 sets per month. The engine type is a single cylinder, OHV, 4-stroke, air-cooled engine with a displacement of 420CC. Its chassis width is 900, and it runs on 92# gasoline. The maximum rotation angle is 260.



Customization:

Brand Name: Hightop

Model Number: HTD1200

Place of Origin: Shandong China

Certification: CE,EPA,ISO

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden case

Delivery Time: 7-14 work days

Payment Terms: Western Union, MoneyGram, T/T, D/A, D/P, L/C

Supply Ability: 100 set per month

Pedal machine size included: 2470*900*1400

Engine Model: Briggs&Stratton Pioneer

Fuel Tank capacity: 6.5L

Rated Power: 13.5HP/3600rpm

displacement: 420CC

This Mini Crawler Dumper is a Hydraulic Crawler Dumper that can also be used as a Garbage Dump Truck.
