Mini Crawler Dumper
>
|
| Place of Origin | China |
| Brand Name | HIGHTOP |
| Certification | CE，EPA，ISO，TUV |
| Model Number | HT05 |
OEM Self Mini Crawler Dumper 300kg 500kg Dumper With CE Certificate
Description of Mini Crawler Dumper:
1. Safe and quick rear dumping.
2. 1447mm ultrahigh dumping height can transport materials to truck etc. tools.
Different choice for Engine
U.S brand gasoline engine;
Features of Mini Crawler Dumper:
1. Integral type Chassis ensures operating and maintaining easily.
2. Complete hydrostatic transmission technology makes the concrete dumper more stability.
3. Thanks to the open-style design of left-side, right-side and back cover guards;
4. Fill the engine oil, exchange air filter conveniently.
5. All cover guards on operation system can be dismounted quickly, maintance easily.
Technical parameters of Mini Crawler Dumper :
|
Total Dimension(L*W*H)
|
1895mm* 770mm* 1220mm
|
|
Bucket size (L*W*H)
|
1150mm*648mm*515mm
|
|
Bucket Capacity
|
0.2m³
|
|
Self Dumping Capacity
|
0.04m³
|
|
2)Engine
|
|
|
Engine type
|
Gasoline,
|
|
Rated Power (KW)
|
Gasoline, 10kw. Diesel: 6.8kw. Electric: 5kw
|
|
3)Hydraulic System
|
|
|
Pressure
|
16Mpa
|
|
Operating Load
|
500kg
|
|
System flow
|
12ml/min
|
|
Travel Speed
|
0-3.5km/h
|
|
Hydraulic oil tank capacity
|
19.4L
|
|
Fuel tank capacity
|
5.5L
|
Application of Mini Crawler Dumper:
It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

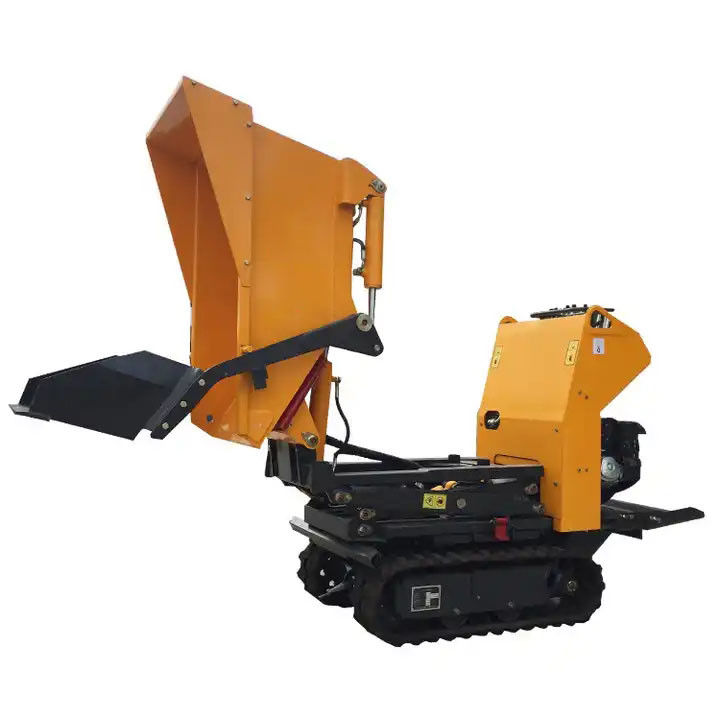

Images of Mini Crawler Dumper:
