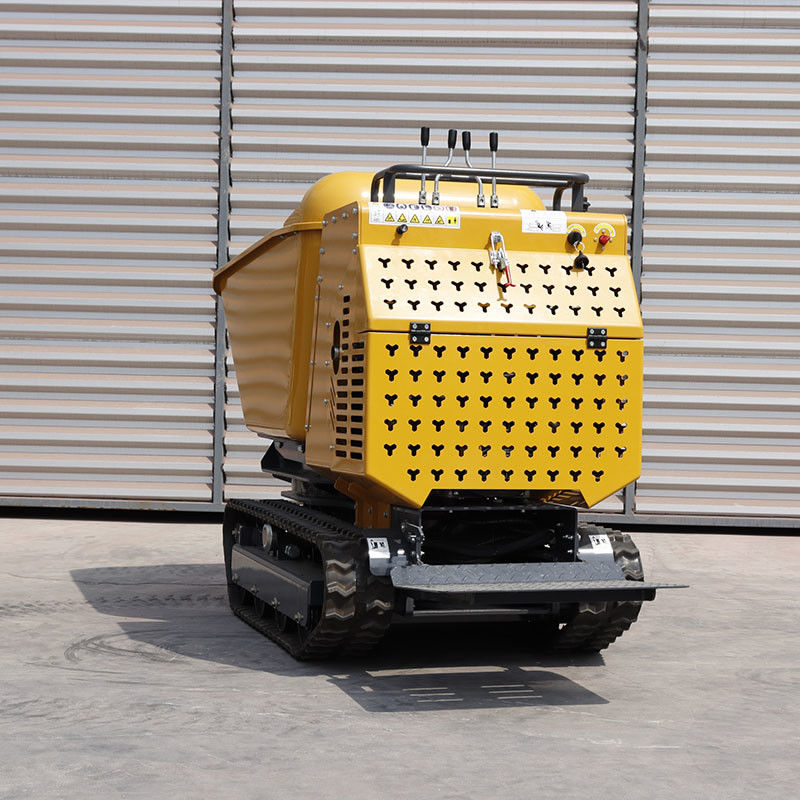

Powerful And Versatile Mini Crawler Dumper Equipment For Construction
  • Powerful And Versatile Mini Crawler Dumper Equipment For Construction
  • Powerful And Versatile Mini Crawler Dumper Equipment For Construction

Powerful And Versatile Mini Crawler Dumper Equipment For Construction

Place of Origin Shandong China
Brand Name Hightop
Certification CE,EPA,ISO
Model Number HTD1200
Product Details
Fuel Tank Capacity:
Pedal Machine Size Included:
Maximum Load Capacity:
Maximum Rotation Angle:
Container Size:
Rotation Mode:
Hydraulic Rotation
Tipping Interval:
High Light:

Versatile Mini Crawler Dumper


Construction Mini Crawler Dumper


Powerful Mini Crawler Dumper

Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden case
Delivery Time
7-14 work days
Payment Terms
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability
100 set per month
Product Description

Product Description:

HTD1200 Rotary Dumper Instruction

HIGHTOP's HTD1200 Rotary Dumper, which offers high work efficiency and operational flexibility, utilizes engineered rubber tracks that provide balanced weight distribution, traverses interesting terrain with ease, and saves the user cost as well as manpower in a timely manner.

The HTD1200 offers ease of maneuverability, low cost maintenance and high return on investment, with a 90 degree tilt angle, the unoccupied hopper allows for quick cycle work. Rotate the bucket from left to right and it can be dumped in any direction at the push of a switch, allowing the operator to turn the bucket on a construction site or in tight terrain without having to rotate the entire machine, the battle platform can be folded for a smaller turning radius and the machine can be pneumatically manoeuvred to improve manoeuvrability, and the rubber tracks on steep or rugged terrain improve driveability in muddy or sandy terrain where wheeled trucks cannot. Easy and convenient operation, hydraulic transmission for efficient energy transfer to the tracks, hopper control, separate controls for dumping and rotating, allowing both motions to be operated at the same time, tracks allow for a smaller turning radius, engine compartment allows for opening for maintenance or locking for added safety, close and lock the engine compartment at normal times, the HTD1200 is a multi-purpose, multi-purpose, multi-purpose, multi-purpose, multi-purpose platform that is designed to be used in a wide variety of applications.

The HTD1200 is a multi-market machine suitable for rental stores, concrete contractors, landscapers, utility contractors, trail builders, plumbing and drainage contractors and more.

HTD1200 Rotary Dumper Parameter

Engine Model Briggs&Stratton Pioneer
Engine Type Single cylinder, OHV, 4-stroke, air cooling
displacement 420CC
Rated Power 13.5HP/3600rpm
Fuel Type 92 # Gasoline
Fuel Tank capacity 6.5
Weight data
Net weight: 850
Maximum load capacity 1200

Body size :

(Footboard not included)

Pedal machine size included 2470*900*1400
Container size: 1400*800*600
Chassis width: 900
Rotating data
Maximum rotation Angle 260
Rotation mode: Hydraulic rotation
Tipping interval 320mm
Track data
track width: 180
Track grounding length: 1000
Chassis ground clearance: 140
Hopper data
Cargo box Capacity 594
Tipping Systme Hydraulic Tipper
Tilting Angle 90
Clearance after tipping container 300
Walk data
Walking Speed 5
Climbing abillty 25



Powerful And Versatile Mini Crawler Dumper Equipment For Construction 0Powerful And Versatile Mini Crawler Dumper Equipment For Construction 1



  • Product Name: Mini Crawler Dumper
  • Total Weight: 850kg
  • Displacement: 420CC
  • Fuel Type: 92 # Gasoline
  • Maximum Rotation Angle: 260
  • Body Size (Footboard not included): 2060*900*1400
  • Product Type: Crawler Dumper
  • Function: Self Loading Dump Trucks
  • Also known as: Mini Dump Truck

Technical Parameters:

Fuel Tank capacity 6.5L
Tipping interval 320mm
Fuel Type 92 # Gasoline
Displacement 420CC
Pedal machine size included 2470*900*1400
Maximum load capacity 1200kg
Engine Model Briggs&Stratton Pioneer
Engine Type Single Cylinder, OHV, 4-stroke, Air Cooling
Total Weight 850kg
Maximum rotation Angle 260


The Hightop HTD1200 Crawler Mini Dumper is suitable for various application occasions and scenarios. It is ideal for construction sites, agricultural fields, landscaping projects, and mining operations. Its tipping interval of 320mm makes it easy to unload materials such as sand, gravel, and soil. With its hydraulic rotation mode, it can easily maneuver around tight spaces and corners, making it perfect for indoor and outdoor applications. The displacement of 420CC and fuel type of 92# gasoline ensure that it can handle heavy loads and long working hours without compromising performance.

The pedal machine size included in the Hightop HTD1200 Crawler Mini Dumper is 2470*900*1400, making it compact and easy to store. Its durable tracks provide excellent traction on any terrain, ensuring that it can easily navigate through rough and uneven surfaces. This Mini Dump Truck is designed with safety in mind, with features such as a rollover protection system and a safety belt, ensuring that the operator is protected at all times.

In conclusion, the Hightop HTD1200 Crawler Mini Dumper is a versatile and efficient machine that is suitable for various applications and scenarios. Its powerful engine, compact size, and excellent traction make it a reliable choice for businesses that require a high volume of machines. With its certifications and reliable supply ability, this Mini Dump Truck is a valuable investment for any business looking for a durable and efficient machine.



It comes in a wooden case packaging and has a delivery time of 7-14 work days, with payment terms including Western Union, MoneyGram, T/T, D/A, D/P, and L/C. With a supply ability of 100 sets per month, you can rest assured that your needs will be fulfilled.

The engine type is a Single Cylinder, OHV, 4-stroke, Air Cooling, and it comes with a Briggs&Stratton Pioneer engine model that has a rated power of 13.5HP/3600rpm. The container size is 1400*800*600, and the chassis width is 900. This Crawler Mini Dumper is perfect for all your hauling needs.


Support and Services:

The Mini Crawler Dumper product is designed to provide durability and stability in rough terrain environments. Our technical support team is available to assist with any questions or concerns regarding the operation or maintenance of the product.

Our services include:

  • Installation and setup
  • Training and education on product features and capabilities
  • Repairs and maintenance
  • Replacement parts and accessories
  • Warranty support

We are committed to providing prompt and reliable service to ensure that your Mini Crawler Dumper product operates at optimal performance levels. Contact us for any technical support or service needs.


Packing and Shipping:

Product Packaging:

The Mini Crawler Dumper will be securely packed in a strong and durable cardboard box to ensure safe transportation. The product will be wrapped in bubble wrap to prevent any damage during shipping. The box will also contain a user manual and any necessary accessories.


The Mini Crawler Dumper will be shipped via a reliable courier service to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and weight of the product. The estimated delivery time will be provided to the customer after the order is processed.
